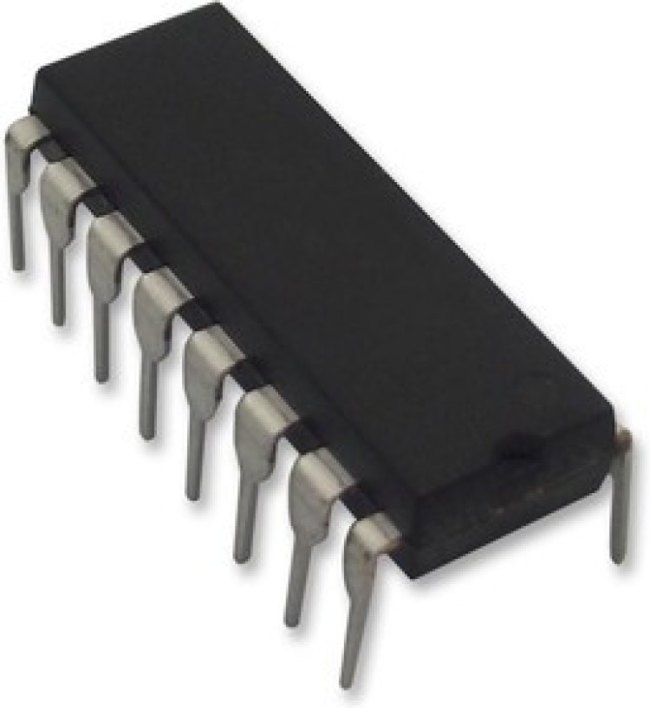

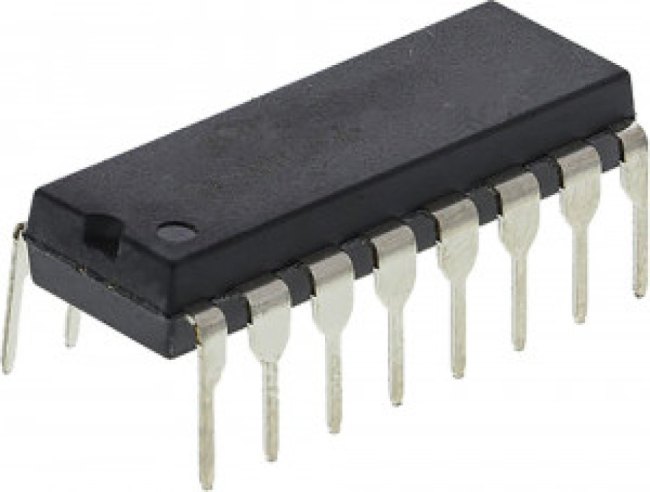

PGA204BP, Измерительный усилитель, 1 Усилитель, 50 мкВ, 0.07 В/мкс, 1 МГц, ± 4.5В до ± 18В, DIP

Полупроводники - Микросхемы\Усилители и Компараторы\Инструментальные УсилителиThe PGA204BP is a general purpose programmable-gain Instrumentation Amplifier offering excellent accuracy. Digitally controlled gain of 1, 10, 100 and 1000V/V. Gain is selected by two TTL or CMOS-compatible address lines, A0 and A1. Internal input protection can withstand up to ±40V on the analog inputs without damage. The PGA204 is laser trimmed for very low offset voltage (50µV), drift (0.25µV/°C) and high common-mode rejection (115dB at G=1000). It operate with power supplies as low as ±4.5V, allowing use in battery operated systems. • Precision and versatility• No logic supply required• 2nA Maximum low input bias current• 5.2mA Typical low quiescent current• Green product and no Sb/Br
