| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 21:54:33 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| 3 db bandwidth | 1 MHz |
| 3 db bandwidth: | 1 MHz |
| amplifier type | PGA |
| amplifier type: | PGA |
| число оу в одном корпусе | 1 |
| cmrr - common mode rejection ratio | 94 dB |
| cmrr - common mode rejection ratio: | 94 dB |
| en - input voltage noise density | 12 nV/sqrt Hz |
| en - input voltage noise density: | 12 nV/sqrt Hz |
| factory pack quantity | 25 |
| factory pack quantity: factory pack quantity: | 25 |
| gain error | 0.15% |
| gain v/v | 1 V/V, 2 V/V, 4 V/V, 8 V/V |
| gain v/v: | 1 V/V, 2 V/V, 4 V/V, 8 V/V |
| gbp - gain bandwidth product | - |
| ib - input bias current | 50 pA |
| ib - input bias current: | 50 pA |
| inl - integral nonlinearity | 0.012% |
| inl - integral nonlinearity: | 0.012% |
| категория | Электронные компоненты/Микросхемы |
| коэффициент ослабления синфазной составляющей (косс), дб | 94 |
| коэффициент усиления с разомкнутой ос, дб | 1 |

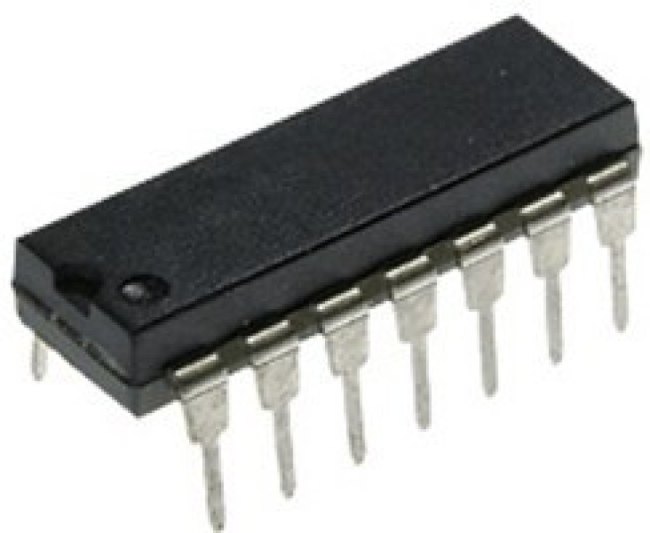

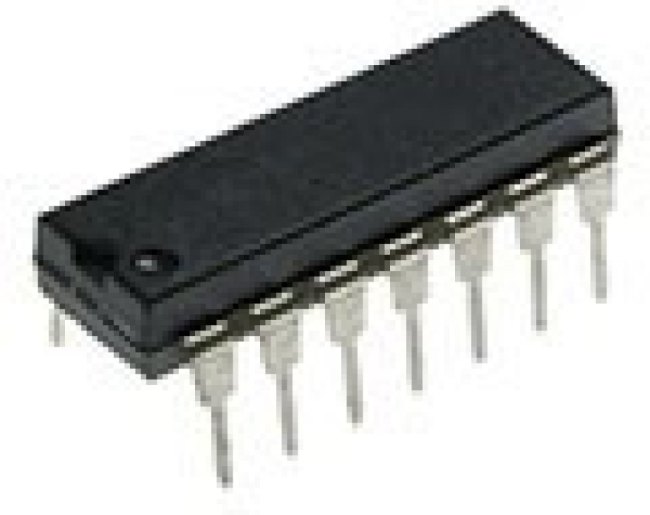

| Корпус | PDIP14 |
| максимальное напряжение питания, в | 36 |
| manufacturer | Texas Instruments |
| manufacturer: | Texas Instruments |
| maximum operating temperature | +85 C |
| maximum operating temperature: | +85 C |
| minimum operating temperature | -25 C |
| minimum operating temperature: | -25 C |
| mounting style | Through Hole |
| mounting style: | SMD/SMT |
| number of channels | 1 Channel |
| number of channels: | 1 Channel |
| operating supply current | 6.5 mA |
| operating supply current: | 6.5 mA |
| operating supply voltage | 12 V to 36 V |
| operating supply voltage: | 12 V to 36 V |
| output current per channel | 10 mA |
| output current per channel: | 10 mA |
| package / case | PDIP-14 |
| package / case: | PDIP-14 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8796277010 |
| pd - power dissipation | 750 mW |
| pd - power dissipation: | 750 mW |
| product | Instrumentation Amplifiers |
| product: | Instrumentation Amplifiers |
| product category | Instrumentation Amplifiers |
| product category: | Instrumentation Amplifiers |
| product type: | Instrumentation Amplifiers |
| rohs | Details |
| series | PGA203 |
| series: | PGA203 |
| sr - slew rate | 15 V/us |
| sr - slew rate: | 15 V/us |
| subcategory: | Amplifier ICs |
| supply voltage - max | 36 V |
| supply voltage - max: | 36 V |
| supply voltage - min | 12 V |
| supply voltage - min: | 12 V |
| тип усилителя | Инструментальный |
| ток питания в пересчете на усилитель, ма | 06.05.2024 |
| unit weight | 0.057144 oz |
| vcm - common mode voltage | +/-10 V |
| vcm - common mode voltage: | +/-10 V |
| вес, г | 1.667 |
| входное напряжение смещения, мв | 2 |
| входное сопротивление, мом | 10000 |
| vos - input offset voltage | 1000 uV |
| vos - input offset voltage: | 1 mV |
