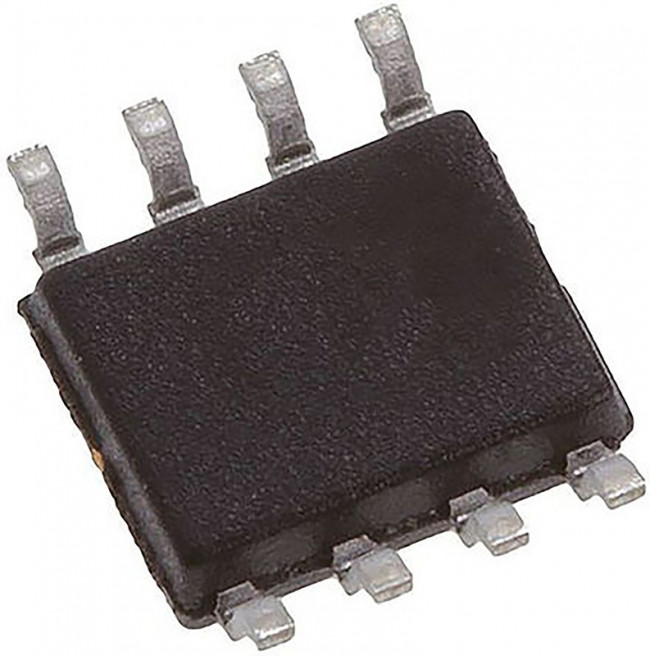

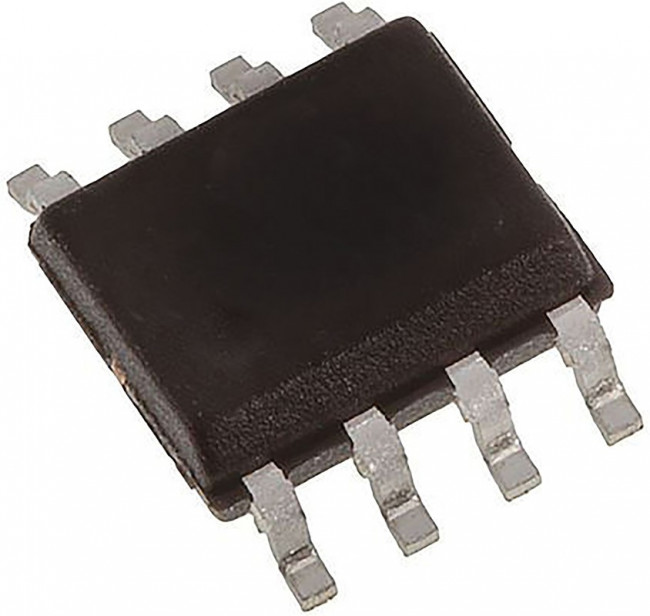

OPA846ID, Операционный усилитель, 1 Усилитель, 500 МГц, 625 В/мкс, 10В до 12В, SOIC, 8 вывод(-ов)

Полупроводники - Микросхемы\Усилители и Компараторы\Операционные Усилители - ОУThe OPA846ID is a wideband voltage feedback Operational Amplifier combines very high gain bandwidth and large signal performance with very low input voltage noise, while dissipating a low 12.6mA supply current. The classical differential input stage, along with two stages of forward gain and a high power output stage, combine to make the OPA846 an exceptionally low distortion amplifier with excellent DC accuracy and output drive. The voltage-feedback architecture allows all standard op amp applications to be implemented with very high performance. The combination of low input voltage and current noise, along with a 1.75GHz gain bandwidth product, make the OPA846 an ideal amplifier for wideband transimpedance stages. As a voltage gain stage, the OPA846 is optimized for a flat response at a gain of +10 and is stable down to a gain of +7. Using this compensation makes the OPA846 one of the premier 12- to 16-bit analog-to-digital (A/D) converter input drivers. • Stable for gains >=7• 1.2nV/√Hz Low input voltage noise• -100dBc (5MHz) Very low distortion• ±150µV High DC accuracy• 12.6mA Low supply current• Green product and no Sb/Br
