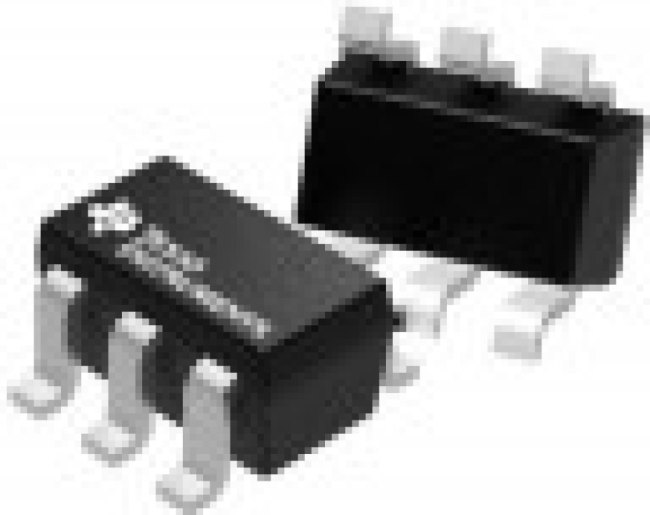

OPA691IDBVT, High Speed Operational Amplifiers Wideband Current Feedback
Оставить отзыв
В избранноеВ сравнение
Артикул: OPA691IDBVT
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifier ICs\High Speed Operational AmplifiersCurrent Feedback Amplifier 1 Circuit SOT-23-6
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 22:00:10 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | Current Feedback |
| amplifier type: | Current Feedback |
| base product number | OPA691 -> |
| cmrr - common mode rejection ratio: | 52 dB |
| current - input bias | 15ВµA |
| current - output / channel | 190mA |
| current - supply | 5.1mA |
| eccn | EAR99 |
| eccn (us) | ear99 |
| en - input voltage noise density: | 1.7 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 250 |
| features: | Shutdown |
| gain bandwidth product | 2GHz |
| gbp - gain bandwidth product: | 280 MHz |
| hts | 8542.33.00.01 |
| htsus | 8542.33.0001 |
| ib - input bias current: | 40 uA |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Texas Instruments |
| manufacturer type | High Speed Amplifier |
| maximum dual supply voltage (v) | ±6 |
| maximum input bias current (ua) | 40@5V |
| maximum input offset voltage (mv) | 3@5V |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| maximum single supply voltage (v) | 12 |
| minimum cmrr (db) | 50 |
| minimum cmrr range (db) | 50 to 60 |
| minimum dual supply voltage (v) | ±2 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 55(Typ) |
| minimum single supply voltage (v) | 4 |
| moisture sensitive: | Yes |
| moisture sensitivity level (msl) | 2 (1 Year) |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| number of circuits | 1 |
| operating supply current: | 5.1 mA |
| operating supply voltage: | 12 V |
| operating temperature | -40В°C ~ 85В°C |
| output current per channel: | 190 mA |
| package | Tape & Reel (TR)Cut Tape (CT)Digi-ReelВ® |
| package / case | SOT-23-6 |
| package / case: | SOT-23-6 |
| package height | 01.01.2024 |
| package length | 3.05(Max) |
| package type | SOIC(D) |
| package width | 1.75(Max) |
| packaging | Tape and Reel |
| партномер | 8006279358 |
| part status | active |
| pcb changed | 6 |
| pin count | 6 |
| power supply type | Dual|Single |
| process technology | BiCOM |
| product: | Operational Amplifiers |
| product category: | High Speed Operational Amplifiers |
| product type: | Op Amps-High Speed Operational Amplifiers |
| psrr - power supply rejection ratio: | 55 dB |
| rail to rail | No |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series: | OPA691 |
| shut down support | No |
| slew rate | 2100V/Вµs |
| sr - slew rate: | 2.1 kV/us |
| standard package name | SOT |
| subcategory: | Amplifier ICs |
| supplier device package | SOT-23-6 |
| supplier package | SOT-23 |
| supply voltage - max: | 12 V |
| supply voltage - min: | 5 V |
| topology: | Current Feedback |
| type | High Speed Amplifier |
| typical dual supply voltage (v) | ±5 |
| typical gain bandwidth product | 280MHz |
| typical gain bandwidth product (mhz) | 2000 |
| typical input noise voltage density (nv/rthz) | 1.7@5V |
| typical noninverting input current noise density (pa/rthz) | 12@5V |
| typical output current (ma) | 160@5V |
| typical settling time (ns) | 14 |
| typical single supply voltage (v) | 5 |
| typical slew rate (v/us) | 850@5V |
| вес, г | 0.04 |
| voltage - input offset | 500ВµV |
| voltage - supply, single/dual (в±) | 5V ~ 12V, В±2.5V ~ 6V |
| vos - input offset voltage: | 500 uV |
| -3db bandwidth | 280MHz |
