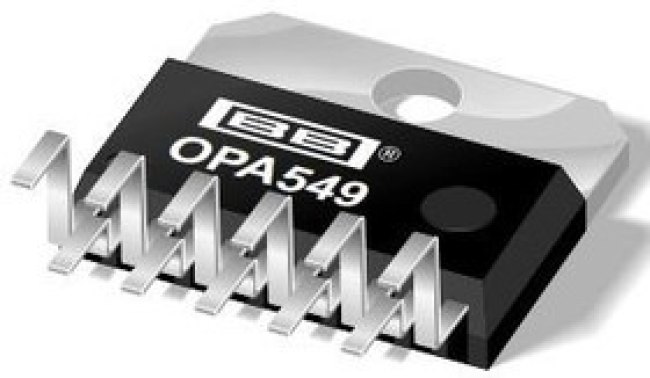

OPA549S, Operational Amplifiers - Op Amps Hi-Vltg Hi-Current Exc Output Swing
Оставить отзыв
В избранноеВ сравнение
Артикул: OPA549S
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifier ICs\Operational Amplifiers - Op AmpsOp Amp Single High Output Current Amplifier ±30V/60V 11-Pin(11+Tab) PFM Tube
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 22:57:39 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type: | High Output Current Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 95 dB |
| dual supply voltage: | +/-5 V, +/-9 V, +/-12 V |
| eccn (us) | ear99 |
| en - input voltage noise density: | 70 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 25 |
| features: | Adj Current Limit, Shutdown |
| gbp - gain bandwidth product: | 900 kHz |
| ib - input bias current: | 500 nA |
| input type: | Rail-to-Rail |
| in - input noise current density: | 1 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| manufacturer: | Texas Instruments |
| manufacturer type | High Output Current Amplifier |
| maximum dual supply voltage: | +/-30 V |
| maximum dual supply voltage (v) | ±30 |
| maximum input bias current (ua) | 0.5@±30V |
| maximum input offset current (ua) | 0.05@±30V |
| maximum input offset voltage (mv) | 5@±30V |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| maximum single supply voltage (v) | 60 |
| minimum cmrr (db) | 80 |
| minimum cmrr range (db) | 80 to 85 |
| minimum dual supply voltage: | +/-4 V |
| minimum dual supply voltage (v) | ±4 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 92.04(Typ) |
| minimum single supply voltage (v) | 8 |
| mounting | Through Hole |
| mounting style: | Through Hole |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| operating supply current: | 26 mA |
| operating supply voltage: | 8 V to 60 V, +/-4 V to+/-30 V |
| output current per channel: | 8 A |
| package type | Power Package |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8005003958 |
| part status | active |
| pcb changed | 11 |
| pin count | 11 |
| power supply type | Single |
| ppap | No |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 92.04 dB |
| rail to rail | No |
| series: | OPA549 |
| shutdown: | Shutdown |
| shut down support | Yes |
| sr - slew rate: | 9 V/us |
| standard package name | PFM |
| subcategory: | Amplifier ICs |
| supplier package | PFM |
| supplier temperature grade | Industrial |
| supply type: | Single, Dual |
| supply voltage - max: | 60 V |
| supply voltage - min: | 8 V |
| tab | Tab |
| type | High Output Current Amplifier |
| typical dual supply voltage (v) | ±5|±9|±12|±15|±18|±24|±28 |
| typical gain bandwidth product | 900kHz |
| typical gain bandwidth product (mhz) | 0.9 |
| typical input noise voltage density (nv/rthz) | 70@±30V |
| typical noninverting input current noise density (pa/rthz) | 1@±30V |
| typical settling time (ns) | 20000 |
| typical single supply voltage | 60 V |
| typical slew rate (v/us) | 9@±30V |
| typical voltage gain (db) | 110 |
| vcm - common mode voltage: | Negative Rail-0.1 V to Positive Rail-3 V |
| вес, г | 5.67 |
| voltage gain db: | 110 dB |
| vos - input offset voltage: | 5 mV |
