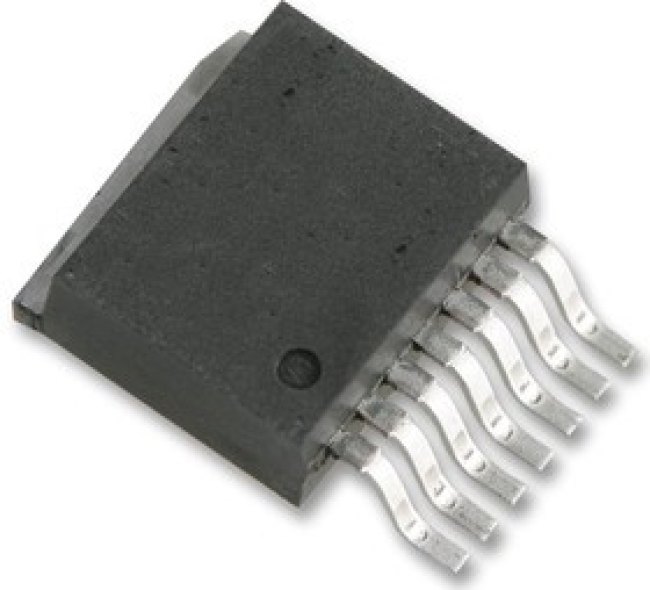

OPA453FAKTWT, Операционный усилитель, 1 Усилитель, 7.5 МГц, 23 В/мкс, ± 10В до ± 40В, TO-263, 7 вывод(-ов)

Полупроводники - Микросхемы\Усилители и Компараторы\Операционные Усилители - ОУThe OPA453FAKTWT is a single Operational Amplifier with high-voltage (80V) and high-current capabilities (50mA). The OPA452 is unity-gain stable and has a gain bandwidth product of 1.8MHz, whereas the OPA453 is optimized for gains greater than 5 and has a 7.5MHz bandwidth. It is internally protected against over-temperature conditions and current overloads. Power supplies in the range of ±10 to ±40V can be used. Unlike most other power op amp, the OPA453 has ensured specifications over the entire power-supply range. These laser-trimmed, monolithic integrated circuits provide excellent low-level accuracy along with wide output swing. Special design considerations assure that the product is easy to use and free from phase inversion problems often found in other amplifiers. • Fully protected - Thermal shutdown and output current-limited• 50mA Continuous high output load drive• 1V to rail Wide output voltage swing• 5µV/°C Typical offset drift• 94dB Typical CMRR• Green product and no Sb/Br
