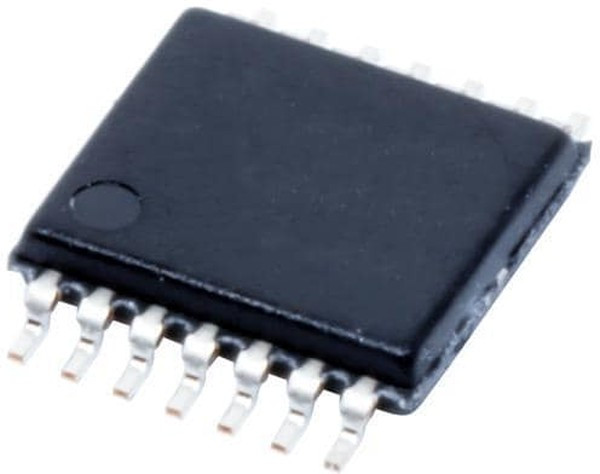

OPA4354AIPWR, Op Amp Quad High Speed Amplifier R-R I/O ±2.75V/5.5V 14-Pin TSSOP T/R
Оставить отзыв
В избранноеВ сравнение
Артикул: OPA4354AIPWR
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Amplifiers\Amplifiers and Comparators\Operational Amplifiers (Op Amps)Op Amp Quad High Speed Amplifier R-R I/O ±2.75V/5.5V 14-Pin TSSOP T/R
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 2:56:10 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type: | Voltage Feedback |
| automotive | No |
| cmrr - common mode rejection ratio: | 80 dB |
| eccn (us) | ear99 |
| en - input voltage noise density: | 6.5 nV/sqrt Hz |
| factory pack quantity: factory pack quantity: | 2500 |
| gbp - gain bandwidth product: | 100 MHz |
| ib - input bias current: | 50 pA |
| input type: | Rail-to-Rail |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Texas Instruments |
| manufacturer type | High Speed Amplifier |
| maximum dual supply voltage (v) | ±2.75 |
| maximum input bias current (ua) | 0.00005@5.5V |
| maximum input offset current (ua) | 0.00005@5.5V |
| maximum input offset voltage (mv) | 8@5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum single supply voltage (v) | 05.05.2024 |
| minimum cmrr (db) | 56 |
| minimum cmrr range (db) | 50 to 60 |
| minimum dual supply voltage (v) | ±1.25 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 73.98(Typ) |
| minimum single supply voltage (v) | 02.05.2024 |
| moisture sensitive: | Yes |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| operating supply current: | 4.9 mA |
| operating supply voltage: | 5.5 V |
| output current per channel: | 100 mA |
| output type | CMOS |
| output type: | Rail-to-Rail |
| package / case: | TSSOP-14 |
| packaging | Tape and Reel |
| партномер | 8025758639 |
| part status | active |
| pcb changed | 14 |
| pin count | 14 |
| power supply type | Single|Dual |
| ppap | No |
| process technology | CMOS |
| product: | Operational Amplifiers |
| product category: | High Speed Operational Amplifiers |
| product type: | Op Amps-High Speed Operational Amplifiers |
| psrr - power supply rejection ratio: | 73.98 dB |
| rail to rail | Rail to Rail Input/Output |
| series: | OPA4354 |
| settling time: | 30 ns |
| shut down support | No |
| sr - slew rate: | 150 V/us |
| standard package name | SO |
| subcategory: | Amplifier ICs |
| supplier package | TSSOP |
| supplier temperature grade | Extended |
| supply voltage - max: | 5.5 V |
| supply voltage - min: | 2.5 V |
| topology: | Voltage Feedback |
| type | High Speed Amplifier |
| typical gain bandwidth product (mhz) | 100 |
| typical input noise voltage density (nv/rthz) | 6.5@5.5V |
| typical noninverting input current noise density (pa/rthz) | 0.05@5.5V |
| typical output current (ma) | 100(Min)@5V |
| typical settling time (ns) | 60 |
| typical slew rate (v/us) | 150@5V |
| typical voltage gain (db) | 110 |
| вес, г | 0.5 |
| voltage gain db: | 110 dB |
| vos - input offset voltage: | 2 mV |
