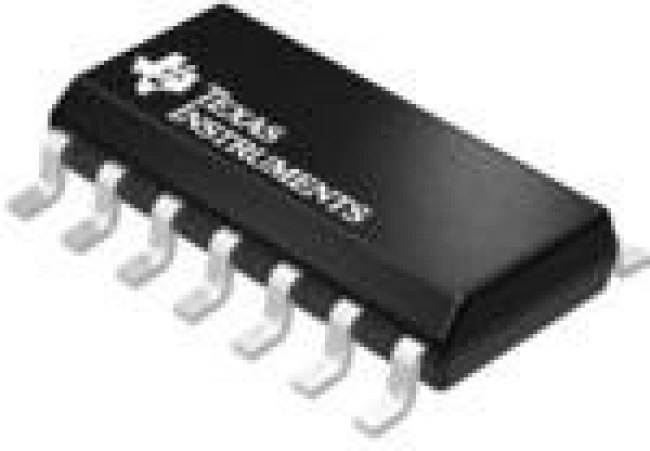

OPA4188AID, Op Amp Quad Low Noise Amplifier R-R O/P ±18V/36V 14-Pin SOIC Tube
Оставить отзыв
В избранноеВ сравнение
Артикул: OPA4188AID
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductor - IC > Linear > Amplifier - Operational0.03µV/C, Low Noise, Rail-to-Rail Output, 36V Zero-Drift Operational Amplifier
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 22:42:37 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | Low Noise |
| amplifier type: | Zero-Drift Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 134 dB |
| eccn (us) | ear99 |
| en - input voltage noise density: | 8.8 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 50 |
| features: | EMI Hardened, Zero Drift |
| gbp - gain bandwidth product: | 2 MHz |
| ib - input bias current: | 160 pA |
| input type: | Rail-to-Rail |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Texas Instruments |
| manufacturer type | Low Noise Amplifier |
| maximum dual supply voltage: | 18 V |
| maximum dual supply voltage (v) | ±18 |
| maximum input bias current (ua) | 0.00014@36V |
| maximum input bias current - (ua) | 0.00014@36V |
| maximum input offset current (ua) | 0.0028@36V |
| maximum input offset current - (ua) | 0.0028@36V |
| maximum input offset voltage (mv) | 0.025@36V |
| maximum input offset voltage - (mv) | 0.025@36V |
| maximum operating frequency | 1 MHz |
| maximum operating temperature | +125 °C |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 1.9@±18V |
| maximum single supply voltage (v) | 36 |
| military | No |
| minimum cmrr (db) | 120 |
| minimum cmrr range (db) | >=115 |
| minimum dual supply voltage: | 2 V |
| minimum dual supply voltage (v) | ±2 |
| minimum operating temperature | -40 °C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 142.5(Typ) |
| minimum single supply voltage (v) | 4 |
| moisture sensitive: | Yes |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| operating supply current: | 415 uA |
| operating temperature - (??c) | -40~125 |
| output current per channel: | 18 mA |
| output type: | Rail-to-Rail |
| package / case: | SOIC-14 |
| package type | SOIC |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8003322926 |
| part status | active |
| pcb changed | 14 |
| pin count | 14 |
| power supply type | Dual |
| ppap | No |
| product: | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| rail to rail | Rail to Rail Output |
| series: | OPA4188 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 800 mV/us |
| standard package name | SO |
| subcategory: | Amplifier ICs |
| supplier package | SOIC |
| supply type: | Single, Dual |
| supply voltage - max: | 36 V |
| supply voltage - min: | 4 V |
| type | Low Noise Amplifier |
| typical dual supply voltage | ±2 →±18V |
| typical dual supply voltage (v) | ±9|±12|±15|±3|±5 |
| typical gain bandwidth product | 2MHz |
| typical gain bandwidth product (mhz) | 2 |
| typical gain bandwidth product - (mhz) | 2 |
| typical input noise voltage density (nv/rthz) | 8.8@36V |
| typical input voltage noise density | 8.8nV/√Hz |
| typical noninverting input current noise density (pa/rthz) | 0.007@36V |
| typical settling time (ns) | 27000 |
| typical slew rate | 0.8V/µs |
| typical slew rate (v/us) | 0.8@36V |
| typical slew rate - (v/us) | 0.8@36V |
| typical voltage gain | 136 dB |
| typical voltage gain (db) | 136 |
| вес, г | 0.5 |
| vos - input offset voltage: | 6 uV |
| width | 4mm |
