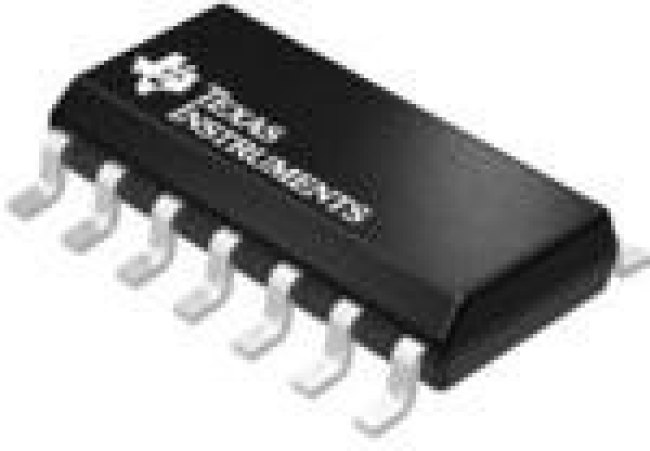

OPA4171AID
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
ЭлектроэлементOP AMP, GP, RRO, 3MHZ, LP, 14SOIC; No. of Amplifiers:4 Amplifier; Bandwidth:3MHz; Slew Rate:1.5V/Вµs; Supply Voltage Range:2.7V to 36V; Amplifier Case Style:SOIC; No. of Pins:14Pins; Operating Temperature Min:-55В°C; Opera
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 2:53:19 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type: | Low Power Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 120 dB |
| eccn (us) | ear99 |
| en - input voltage noise density: | 14 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 50 |
| features: | EMI Hardened |
| gbp - gain bandwidth product: | 3 MHz |
| ib - input bias current: | 15 pA |
| input type: | Rail-to-Rail |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Texas Instruments |
| manufacturer type | Precision Amplifier |
| maximum dual supply voltage (v) | ±18 |
| maximum input bias current (ua) | 0.000015@36V |
| maximum input offset current (ua) | 0.000004(Typ)@36V |
| maximum input offset voltage (mv) | 1.8@36V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 2.38@36V |
| maximum single supply voltage (v) | 36 |
| minimum cmrr (db) | 90 |
| minimum cmrr range (db) | 90 to 95 |
| minimum dual supply voltage: | +/-1.35 V |
| minimum dual supply voltage (v) | ±1.35 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 120(Typ) |
| minimum single supply voltage (v) | 02.07.2024 |
| moisture sensitive: | Yes |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| operating supply current: | 475 uA |
| operating supply voltage: | 2.7 V to 36 V, +/-1.35 V to+/-18 V |
| output current per channel: | 25 mA |
| output type: | Rail-to-Rail |
| package / case: | SOIC-14 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8003162040 |
| part status | active |
| pcb changed | 14 |
| pin count | 14 |
| power supply type | Single|Dual |
| ppap | No |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| rail to rail | Rail to Rail Output |
| series: | OPA4171 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 1.5 V/us |
| standard package name | SO |
| subcategory: | Amplifier ICs |
| supplier package | SOIC |
| supply type: | Single, Dual |
| supply voltage - max: | 36 V |
| supply voltage - min: | 2.7 V |
| type | PRECISION AMPLIFIER |
| typical dual supply voltage (v) | ±3|±5|±9|±12|±15 |
| typical gain bandwidth product (mhz) | 3 |
| typical input noise voltage density (nv/rthz) | 25@36V |
| typical output current (ma) | 35 |
| typical settling time (ns) | 10000 |
| typical slew rate (v/us) | 1.5@36V |
| typical voltage gain (db) | 130 |
| vcm - common mode voltage: | 2.7 V to 36 V |
| вес, г | 0.2083 |
| voltage gain db: | 130 dB |
| vos - input offset voltage: | 1.8 mV |
