| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 1:54:08 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type: | Voltage Feedback Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 104 dB |
| eccn (us) | ear99 |
| en - input voltage noise density: | 12 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 2500 |
| gain v/v: | 1 V/V |
| gbp - gain bandwidth product: | 20 MHz |
| ib - input bias current: | 115 nA |
| input type: | Differential, Rail-to-Rail |
| in - input noise current density: | 0.2 pA/sqrt Hz |
| ios - input offset current: | 5 nA |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Texas Instruments |
| manufacturer type | High Speed Amplifier |
| maximum dual supply voltage (v) | ±2.7 |
| maximum input bias current (ua) | 0.09@5V |
| maximum input offset current (ua) | 0.03@5V |
| maximum input offset voltage (mv) | 1.9@5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 0.42@5V |
| maximum single supply voltage (v) | 05.04.2024 |
| minimum cmrr (db) | 86 |
| minimum cmrr range (db) | 85 to 90 |
| minimum dual supply voltage (v) | ±1.35 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 86 |
| minimum single supply voltage (v) | 02.07.2024 |
| moisture sensitive: | Yes |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| operating supply current: | 10 mA |
| output current per channel: | 13.5 mA |
| output type: | Rail-to-Rail |

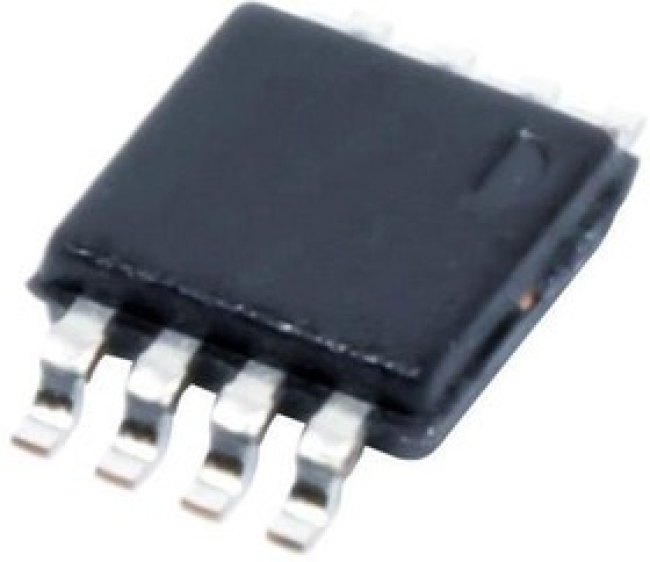

| package / case: | VSSOP-8 |
| packaging | Tape and Reel |
| партномер | 8005003547 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Single|Dual |
| ppap | No |
| product: | Operational Amplifiers |
| product category: | High Speed Operational Amplifiers |
| product type: | Op Amps-High Speed Operational Amplifiers |
| psrr - power supply rejection ratio: | 103 dB |
| rail to rail | Rail to Rail Output |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 26 V/us |
| standard package name | SOP |
| subcategory: | Amplifier ICs |
| supplier package | VSSOP |
| supply voltage - max: | 5.4 V |
| supply voltage - min: | 2.7 V |
| type | High Speed Amplifier |
| typical gain bandwidth product (mhz) | 20 |
| typical input noise voltage density (nv/rthz) | 12@5V |
| typical noninverting input current noise density (pa/rthz) | 0.2@5V |
| typical output current (ma) | 20(Max) |
| typical settling time (ns) | 110 |
| typical single supply voltage (v) | 5 |
| typical slew rate (v/us) | 26@5V |
| typical voltage gain (db) | 124 |
| вес, г | 0.03 |
| voltage gain db: | 124 dB |
| vos - input offset voltage: | 350 uV |
