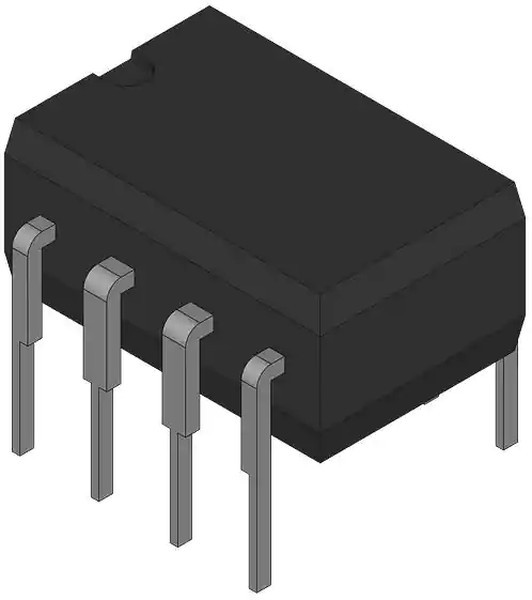

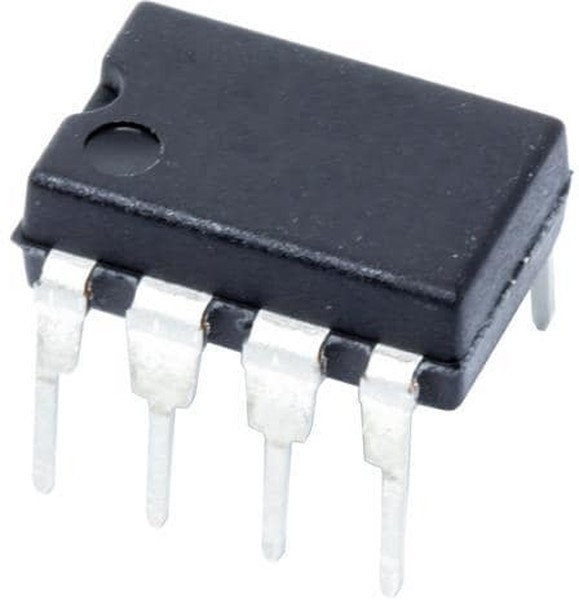

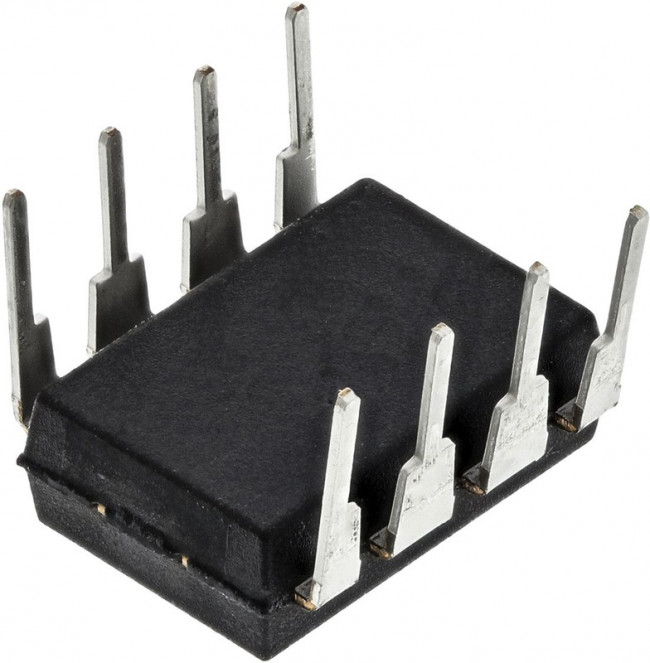

OPA241PA
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Integrated Circuits (ICs)\Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps Описание Микросхема, операционный усилитель, 35кГц, Ch: 1, DIP8, туба Характеристики Категория
Микросхема
Тип
операционный усилитель
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 23:28:20 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | General Purpose |
| amplifier type: | Micropower Amplifier |
| base product number | OPA241 -> |
| cmrr - common mode rejection ratio: | 106 dB |
| current - input bias | 4nA |
| current - output / channel | 21mA |
| current - supply | 27ВµA |
| dual supply voltage: | +/-3 V, +/-5 V, +/-9 V |
| eccn | EAR99 |
| en - input voltage noise density: | 45 nV/sqrt Hz |
| factory pack quantity: factory pack quantity: | 50 |
| features: | High Cload Drive |
| gain bandwidth product | 35kHz |
| gbp - gain bandwidth product: | 35 kHz |
| htsus | 8542.33.0001 |
| ib - input bias current: | 20 nA |
| input type: | Rail-to-Rail |
| in - input noise current density: | 0.04 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| manufacturer: | Texas Instruments |
| maximum dual supply voltage: | +/-18 V |
| maximum operating temperature | +85 C |
| maximum operating temperature: | +85 C |
| minimum dual supply voltage: | +/-1.35 V |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting style: | Through Hole |
| mounting type | Through Hole |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| number of circuits | 1 |
| operating supply current: | 27 uA |
| operating supply voltage: | 2.7 V to 36 V, +/-1.35 V to+/-18 V |
| operating temperature | -40В°C ~ 85В°C |
| output current per channel: | 4 mA |
| output type | Rail-to-Rail |
| output type: | Rail-to-Rail |
| package | Tube |
| package / case | 8-DIP (0.300"", 7.62mm) |
| package / case: | PDIP-8 |
| package type | PDIP |
| packaging: | Tube |
| партномер | 8005858135 |
| pin count | 8 |
| power supply type | Dual, Single |
| product: | Precision Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 110.46 dB |
| rail to rail | No |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series: | OPA241 |
| shutdown: | No Shutdown |
| slew rate | 0.01V/Вµs |
| sr - slew rate: | 10 mV/us |
| subcategory: | Amplifier ICs |
| supplier device package | 8-PDIP |
| supply type: | Single, Dual |
| supply voltage - max: | 36 V |
| supply voltage - min: | 2.7 V |
| typical dual supply voltage | ±12 V, ±15 V, ±3 V, ±5 V, ±9 V |
| typical gain bandwidth product | 35kHz |
| typical input voltage noise density | 45nV/√Hz |
| typical single supply voltage | 3 → 28 V |
| typical slew rate | 0.01V/us |
| typical voltage gain | 120 dB |
| voltage gain db: | 120 dB |
| voltage - input offset | 100ВµV |
| voltage - supply, single/dual (в±) | 2.7V ~ 36V, В±1.35V ~ 18V |
| vos - input offset voltage: | 250 uV |
| width | 6.35mm |
