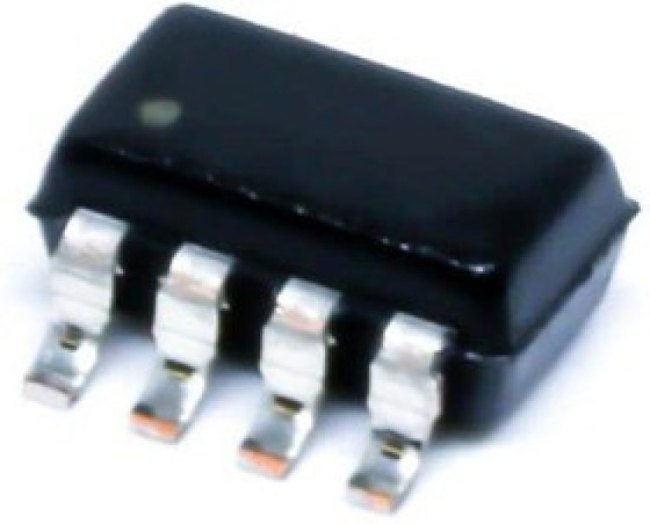

OPA2379AIDCNR, Operational Amplifiers - Op Amps Dual 1.8V 2.9uA RR I/O Op Amp
Оставить отзыв
В избранноеВ сравнение
Артикул: OPA2379AIDCNR
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifier ICs\Operational Amplifiers - Op AmpsOp Amp Dual Low Power Amplifier R-R I/O 5.5V 8-Pin SOT-23 T/R
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 0:42:31 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type: | Low Power Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 100 dB |
| eccn (us) | ear99 |
| en - input voltage noise density: | 80 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 3000 |
| features: | EMI Hardened |
| gbp - gain bandwidth product: | 90 kHz |
| ib - input bias current: | 50 pA |
| input type: | Rail-to-Rail |
| in - input noise current density: | 0.001 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Texas Instruments |
| manufacturer type | Low Power Amplifier |
| maximum input bias current (ua) | 0.00005@5V |
| maximum input offset current (ua) | 0.00005@5V |
| maximum input offset voltage (mv) | 1.5@5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 0.011@5.5V |
| maximum single supply voltage (v) | 05.05.2024 |
| minimum cmrr (db) | 90 |
| minimum cmrr range (db) | 90 to 95 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 113.98(Typ) |
| minimum single supply voltage (v) | 01.08.2024 |
| moisture sensitive: | Yes |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| operating supply current: | 2.9 uA |
| operating supply voltage: | 1.8 V to 5.5 V |
| output current per channel: | 5 mA |
| output type: | Rail-to-Rail |
| package / case: | SOT-23-8 |
| packaging | Tape and Reel |
| партномер | 8005003454 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Single |
| ppap | No |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 113.98 dB |
| rail to rail | Rail to Rail Input/Output |
| series: | OPA2379 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 30 mV/us |
| standard package name | SOT |
| subcategory: | Amplifier ICs |
| supplier package | SOT-23 |
| supply type: | Single |
| supply voltage - max: | 5.5 V |
| supply voltage - min: | 1.8 V |
| type | Low Power Amplifier |
| typical gain bandwidth product (mhz) | 0.09 |
| typical input noise voltage density (nv/rthz) | 80@5.5V |
| typical noninverting input current noise density (pa/rthz) | 0.001@5.5V |
| typical slew rate (v/us) | 0.03@5.5V |
| typical voltage gain (db) | 120 |
| вес, г | 0.04 |
| voltage gain db: | 120 dB |
| vos - input offset voltage: | 1.5 mV |
