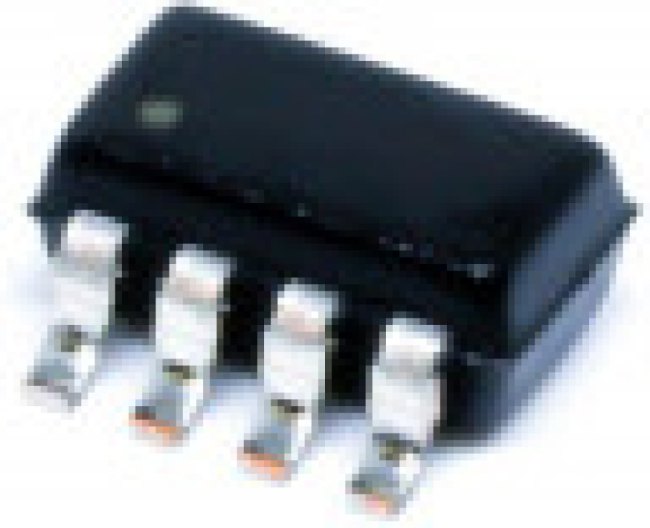

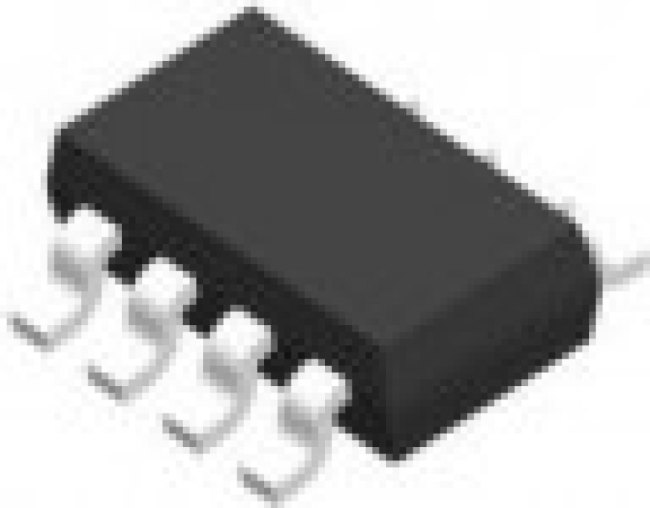

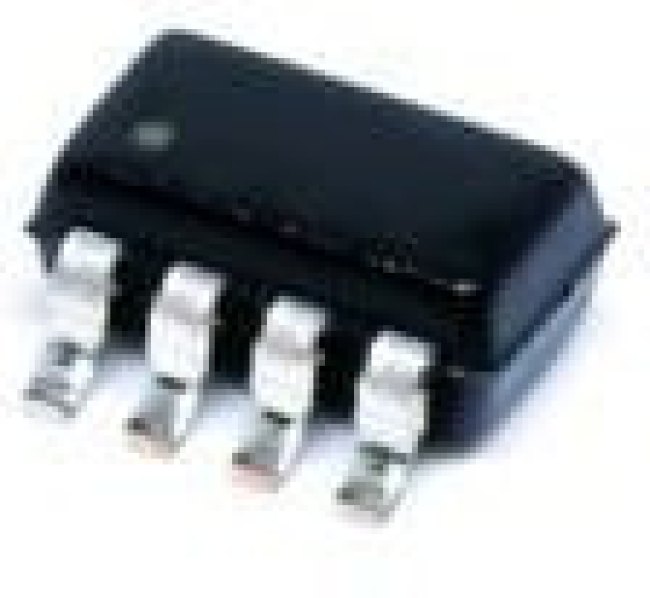

OPA2348AIDCNT, Операционный усилитель широкого назначения SOT23-8
Оставить отзыв
В избранноеВ сравнение
Артикул: OPA2348AIDCNT
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Op Amp Dual Low Power Amplifier R-R I/O 5.5V 8-Pin SOT-23 T/R
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 4:14:10 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | General Purpose Amplifier |
| amplifier type: | General Purpose Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio | 70 dB to 82 dB |
| cmrr - common mode rejection ratio: | 82 dB |
| eccn (us) | ear99 |
| en - input voltage noise density | 35 nV/sqrt Hz |
| en - input voltage noise density: | 35 nV/sqrt Hz |
| factory pack quantity | 250 |
| factory pack quantity: factory pack quantity: | 250 |
| gbp - gain bandwidth product | 1 MHz |
| gbp - gain bandwidth product: | 1 MHz |
| ib - input bias current | 10 pA |
| ib - input bias current: | 10 pA |
| input type | Rail-to-Rail |
| input type: | Rail-to-Rail |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer | Texas Instruments |
| manufacturer: | Texas Instruments |
| manufacturer type | Low Power Amplifier |
| maximum input bias current (ua) | 0.00001@5.5V |
| maximum input offset current (ua) | 0.00001@5.5V |
| maximum input offset voltage (mv) | 5@5V |
| maximum operating temperature | +125 C |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 0.13@5V |
| maximum single supply voltage (v) | 05.05.2024 |
| minimum cmrr (db) | 60 |
| minimum cmrr range (db) | 60 to 65 |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 84.44(Typ) |
| minimum single supply voltage (v) | 02.05.2024 |
| mounting | surface mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| number of channels | 2 Channel |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| operating supply current | 45 uA |
| operating supply current: | 45 uA |
| operating supply voltage | 2.1 V to 5.5 V |
| operating supply voltage: | 2.1 V to 5.5 V |
| output current per channel | 10 mA |
| output current per channel: | 10 mA |
| output type | Rail-to-Rail |
| output type: | Rail-to-Rail |
| package / case | SOT-23-8 |
| package / case: | SOT-23-8 |
| packaging | Cut Tape or Reel |
| партномер | 8017530280 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Single |
| ppap | No |
| process technology | CMOS |
| product | Operational Amplifiers |
| product: | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| product category: | Operational Amplifiers-Op Amps |
| product type | Op Amps-Operational Amplifiers |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio | 84.44 dB |
| psrr - power supply rejection ratio: | 84.44 dB |
| rail to rail | Rail to Rail Input/Output |
| series | OPA2348 |
| series: | OPA2348 |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate | 0.5 V/us |
| sr - slew rate: | 500 mV/us |
| standard package name | SOT |
| subcategory | Amplifier ICs |
| subcategory: | Amplifier ICs |
| supplier package | SOT-23 |
| supplier temperature grade | Extended |
| supply type | Single |
| supply type: | Single |
| supply voltage - max | 5.5 V |
| supply voltage - max: | 5.5 V |
| supply voltage - min | 2.1 V |
| supply voltage - min: | 2.1 V |
| type | Low Power Amplifier |
| typical gain bandwidth product (mhz) | 1 |
| typical input noise voltage density (nv/rthz) | 35@5.5V |
| typical noninverting input current noise density (pa/rthz) | 0.004@5.5V |
| typical settling time (ns) | 7000 |
| typical slew rate (v/us) | 0.5@5.5V |
| typical voltage gain (db) | 108 |
| вес, г | 0.1 |
| voltage gain db | 108 dB |
| voltage gain db: | 108 dB |
| vos - input offset voltage | 5 mV |
| vos - input offset voltage: | 5 mV |
