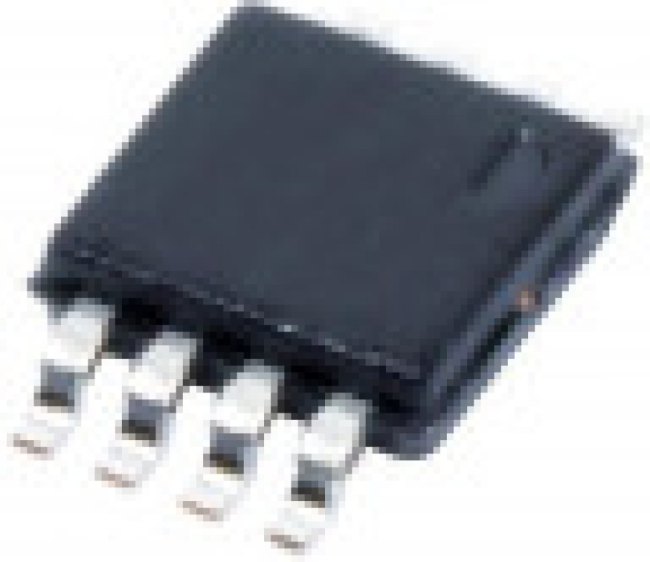

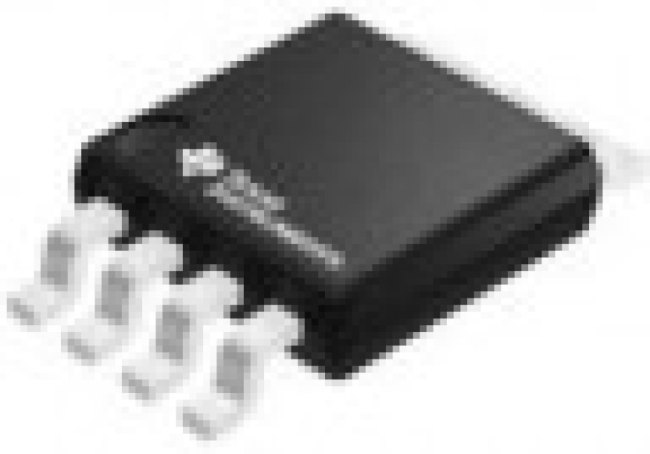

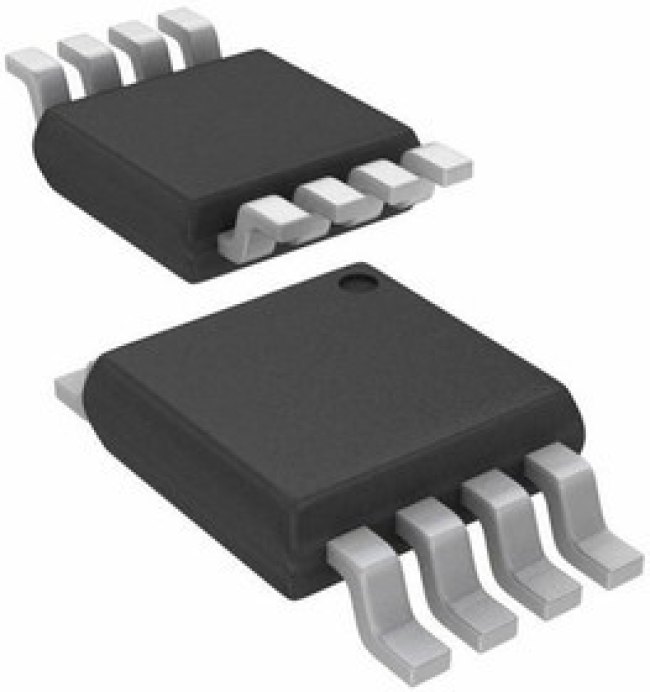

OPA2330AIDGKT
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Integrated Circuits (ICs)\Linear - Amplifiers - Instrumentation, OP Amps, Buffer AmpsCMOS, усилитель с нулевым дрейфом, 2 цепи, Rail-to-Rail, 8-VSSOP
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 22:42:08 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | CMOS, Zero-Drift |
| automotive | No |
| base product number | OPA2330 -> |
| cmrr - common mode rejection ratio: | 115 dB |
| current - input bias | 200pA |
| current - output / channel | 5mA |
| current - supply | 21ВµA (x2 Channels) |
| eccn | EAR99 |
| eccn (us) | ear99 |
| en - input voltage noise density: | 55 nV/sqrt Hz |
| factory pack quantity: factory pack quantity: | 250 |
| features: | EMI Hardened, Small Size, Zero Drift |
| gain bandwidth product | 350kHz |
| gbp - gain bandwidth product: | 350 kHz |
| htsus | 8542.33.0001 |
| ib - input bias current: | 200 pA |
| input offset voltage drift (uv/°c) | 0.25 |
| input type: | Rail-to-Rail |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Texas Instruments |
| manufacturer type | Precision Amplifier |
| maximum dual supply voltage (v) | ±2.75 |
| maximum input bias current (ua) | 0.0005@5.5V |
| maximum input offset current (ua) | 0.001@5.5V |
| maximum input offset voltage (mv) | 0.05@5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 0.07@5.5V@-40C to 125C |
| maximum single supply voltage (v) | 05.05.2024 |
| minimum cmrr (db) | 100(Typ) |
| minimum cmrr range (db) | 95 to 105 |
| minimum dual supply voltage (v) | ±0.9 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 120(Typ) |
| minimum single supply voltage (v) | 01.08.2024 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| number of circuits | 2 |
| operating supply current: | 21 uA |
| operating supply voltage: | 1.8 V to 5.5 V |
| operating temperature | -40В°C ~ 125В°C |
| output current per channel: | 5 mA |
| output type | Rail-to-Rail |
| output type: | Rail-to-Rail |
| package | Tape & Reel (TR)Cut Tape (CT)Digi-ReelВ® |
| package / case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| package / case: | VSSOP-8 |
| packaging | Tape and Reel |
| партномер | 8006423502 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Single|Dual |
| ppap | No |
| process technology | CMOS |
| product: | Operational Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| rail to rail | Rail to Rail Input/Output |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series: | OPA2330 |
| shutdown: | No Shutdown |
| shut down support | No |
| slew rate | 0.16V/Вµs |
| sr - slew rate: | 160 mV/us |
| standard package name | SO |
| subcategory: | Amplifier ICs |
| supplier device package | 8-VSSOP |
| supplier package | VSSOP |
| supply type: | Single |
| supply voltage - max: | 5.5 V |
| supply voltage - min: | 1.8 V |
| type | PRECISION AMPLIFIER |
| typical dual supply voltage (v) | ±2.5 |
| typical gain bandwidth product (mhz) | 0.35 |
| typical input bias current (ua) | 0.0002@5.5V |
| typical input noise voltage density (nv/rthz) | 55@5.5V |
| typical noninverting input current noise density (pa/rthz) | 0.1@5.5V |
| typical output resistance (ohm) | 2 |
| typical slew rate (v/us) | 0.16@5.5V |
| typical voltage gain (db) | 100 |
| voltage gain db: | 115 dB |
| voltage - input offset | 8ВµV |
| voltage - supply, single/dual (в±) | 1.8V ~ 5.5V, В±0.9V ~ 2.75V |
| vos - input offset voltage: | 8 uV |
