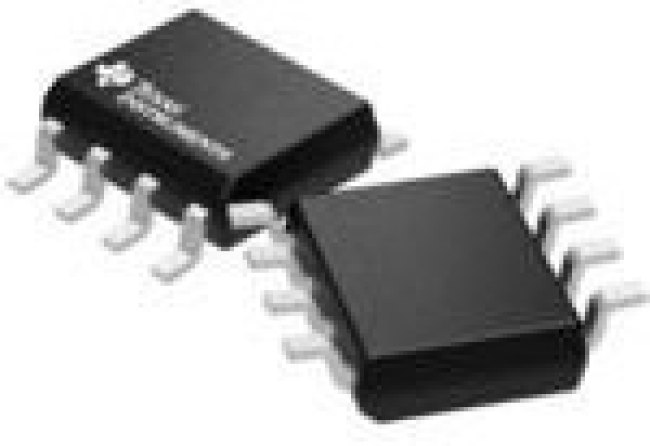

OPA227UA/2K5
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Op Amp Single Precision Amplifier ±18V/36V 8-Pin SOIC T/R
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 21:36:52 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type: | Low Noise Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 138 dB |
| dual supply voltage: | +/-3 V, +/-5 V, +/-9 V |
| eccn (us) | ear99 |
| en - input voltage noise density: | 3 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 2500 |
| gbp - gain bandwidth product: | 8 MHz |
| ib - input bias current: | 2.5 nA |
| input type: | Rail-to-Rail |
| in - input noise current density: | 0.4 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Texas Instruments |
| manufacturer type | Precision Amplifier |
| maximum dual supply voltage: | +/-18 V |
| maximum dual supply voltage (v) | ±18 |
| maximum input bias current (ua) | 0.01@±15V |
| maximum input offset current (ua) | 0.01@±15V |
| maximum input offset voltage (mv) | 0.2@±15V |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| maximum quiescent current (ma) | 3.8@±15V |
| maximum single supply voltage (v) | 36 |
| minimum cmrr (db) | 120 |
| minimum cmrr range (db) | >=115 |
| minimum dual supply voltage: | +/-2.5 V |
| minimum dual supply voltage (v) | ±2.5 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 126.02(Typ) |
| minimum single supply voltage (v) | 04.05.2024 |
| moisture sensitive: | Yes |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| operating supply current: | 3.7 mA |
| operating supply voltage: | 5 V to 36 V, +/-2.5 V to+/-18 V |
| output current per channel: | 45 mA |
| output type: | Rail-to-Rail |
| package / case: | SOIC-8 |
| packaging | Tape and Reel |
| партномер | 8007548665 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Single|Dual |
| ppap | No |
| product: | Operational Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| psrr - power supply rejection ratio: | 126.02 dB |
| series: | OPA227 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 2.3 V/us |
| standard package name | SO |
| subcategory: | Amplifier ICs |
| supplier package | SOIC |
| supply type: | Single, Dual |
| supply voltage - max: | 36 V |
| supply voltage - min: | 5 V |
| technology: | Bipolar |
| type | PRECISION AMPLIFIER |
| typical dual supply voltage (v) | ±15 |
| typical gain bandwidth product (mhz) | 8 |
| typical input noise voltage density (nv/rthz) | 3.5@±15V |
| typical noninverting input current noise density (pa/rthz) | 0.4@±15V |
| typical output current (ma) | 45 |
| typical settling time (ns) | 5600 |
| typical slew rate (v/us) | 2.3@±15V |
| typical voltage gain (db) | 160 |
| voltage gain db: | 160 dB |
| vos - input offset voltage: | 5 uV |
