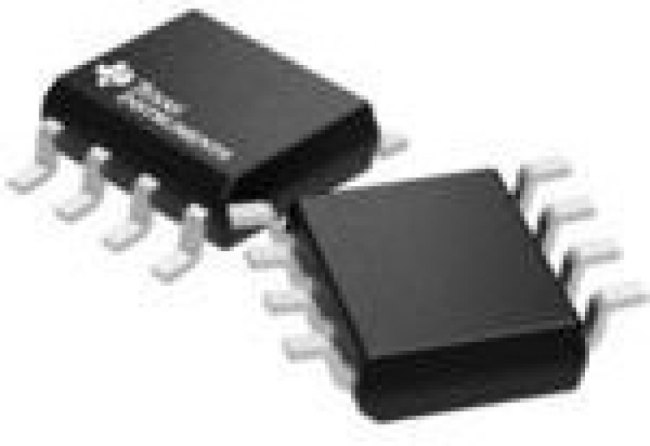

OPA2131UJ
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
ЭлектроэлементROHS3Compliant EAR99 OPA2131 Tube op amp buffer circuit 4.9mm 0.00005muA 15V 4000kHz
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 21:56:25 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type: | Low Noise Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 80 dB |
| dual supply voltage: | +/-15 V |
| eccn (us) | ear99 |
| en - input voltage noise density: | 15 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 75 |
| gbp - gain bandwidth product: | 4 MHz |
| ib - input bias current: | 50 pA |
| in - input noise current density: | 0.003 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Texas Instruments |
| manufacturer type | Low Noise Amplifier |
| maximum dual supply voltage: | +/-18 V |
| maximum dual supply voltage (v) | ±18 |
| maximum input bias current (ua) | 0.00005@±15V |
| maximum input bias current - (ua) | 0.00005@??15V |
| maximum input offset current (ua) | 0.00005@±15V |
| maximum input offset current - (ua) | 0.00005@??15V |
| maximum input offset voltage (mv) | 1.5@±15V |
| maximum input offset voltage - (mv) | 1.5@??15V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 85 |
| military | No |
| minimum cmrr (db) | 70 |
| minimum cmrr range (db) | 70 to 71 |
| minimum dual supply voltage: | +/-4.5 V |
| minimum dual supply voltage (v) | ±4.5 |
| minimum operating temperature: | -55 C |
| minimum operating temperature (°c) | -40 |
| moisture sensitive: | Yes |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| operating supply current: | 1.5 mA |
| operating supply voltage: | +/-4.5 V to+/-18 V |
| operating temperature - (??c) | -40~85 |
| output current per channel: | 25 mA |
| package/case: | SOIC-8 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8002951142 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Dual |
| ppap | No |
| process technology | JFET |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| series: | OPA2131 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 10 V/us |
| standard package name | SOP |
| subcategory: | Amplifier ICs |
| supplier package | SOIC |
| supply type: | Dual |
| supply voltage - max: | 36 V |
| supply voltage - min: | 9 V |
| technology: | JFET |
| type | Low Noise Amplifier |
| typical dual supply voltage (v) | ±15 |
| typical gain bandwidth product (mhz) | 4 |
| typical gain bandwidth product - (mhz) | 4 |
| typical input noise voltage density (nv/rthz) | 21@±15V |
| typical noninverting input current noise density (pa/rthz) | 0.003@±15V |
| typical output current (ma) | 25 |
| typical settling time (ns) | 2000 |
| typical slew rate (v/us) | 10@±15V |
| typical slew rate - (v/us) | 10@??15V |
| typical voltage gain (db) | 110 |
| vcm - common mode voltage: | Negative Rail+3 V to Positive Rail-1 V |
| вес, г | 0.076 |
| voltage gain db: | 110 dB |
| vos - input offset voltage: | 1.5 mV |
