| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 22:42:19 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type: | Low Drift Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 120 dB |
| eccn (us) | ear99 |
| en - input voltage noise density: | 5.5 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 75 |
| features: | EMI Hardened, High Cload Drive |
| gbp - gain bandwidth product: | 10 MHz |
| ib - input bias current: | 5 pA |
| input offset voltage drift (uv/°c) | 0.8 |
| input type: | Rail-to-Rail |
| input voltage range - max: | 36 V |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Texas Instruments |
| manufacturer type | Precision Amplifier |
| maximum dual supply voltage (v) | ±18 |
| maximum input bias current (ua) | 0.00002@36V |
| maximum input bias current - (ua) | 0.00002@36V |
| maximum input offset current (ua) | 0.00002@36V |
| maximum input offset current - (ua) | 0.00002@36V |
| maximum input offset voltage (mv) | 0.04@36V |
| maximum input offset voltage - (mv) | 0.04@36V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 1.2@36V |
| maximum single supply voltage (v) | 36 |
| military | No |
| minimum cmrr (db) | 100 |
| minimum cmrr range (db) | 95 to 105 |
| minimum dual supply voltage (v) | ±2.25 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 130.45(Typ) |
| minimum single supply voltage (v) | 04.05.2024 |
| moisture sensitive: | Yes |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| operating supply current: | 1 mA |
| operating supply voltage: | 4.5 V to 36 V |
| operating temperature - (??c) | -40~125 |
| output current per channel: | 65 mA |
| output type: | Rail-to-Rail |

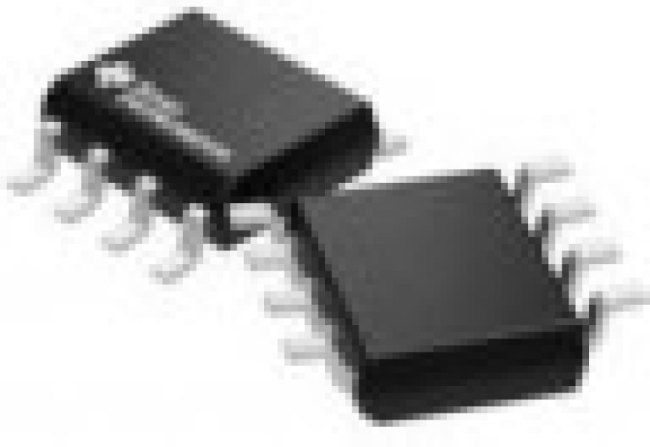

| package / case: | SOIC-8 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8005003098 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Single|Dual |
| ppap | No |
| product: | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| psrr - power supply rejection ratio: | 0.3 uV/V |
| rail to rail | Rail to Rail Input/Output |
| series: | OPA192 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 20 V/us |
| standard package name | SO |
| subcategory: | Amplifier ICs |
| supplier package | SOIC |
| supply voltage - max: | 36 V |
| supply voltage - min: | 4.5 V |
| tradename: | e-trim |
| type | PRECISION AMPLIFIER |
| typical dual supply voltage (v) | ±15|±12|±9|±5|±3 |
| typical gain bandwidth product (mhz) | 10 |
| typical gain bandwidth product - (mhz) | 10 |
| typical input bias current (ua) | 0.000005@36V |
| typical input noise voltage density (nv/rthz) | 32@36V |
| typical noninverting input current noise density (pa/rthz) | 0.0015@36V |
| typical output current (ma) | 65 |
| typical settling time (ns) | 2100 |
| typical slew rate (v/us) | 20@36V |
| typical slew rate - (v/us) | 20@36V |
| typical voltage gain (db) | 140 |
| вес, г | 0.203 |
| voltage gain db: | 140 dB |
| vos - input offset voltage: | 5 uV |
