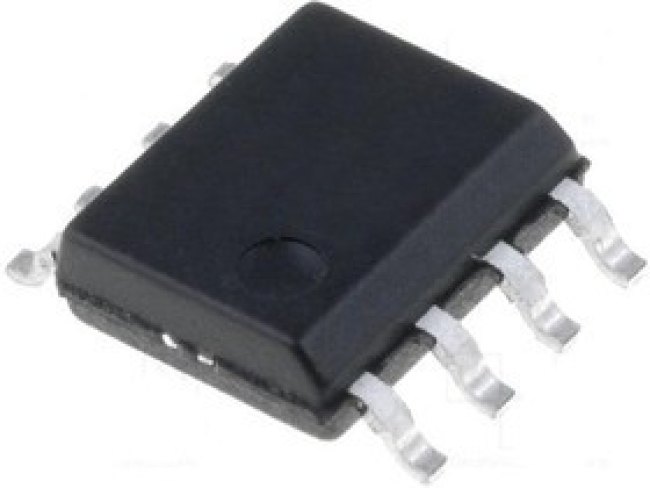

OPA1611AID
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Электроэлемент Описание IC: operational amplifier; 80MHz; Ch: 1; SO8; tube Характеристики Категория
Микросхема
Тип
операционный усилитель
Монтаж
SMD
Кол-во каналов
1
Мин.напряжение питания, В
4.5
Макс.напряжение питания, В
36
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 23:24:11 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | Audio |
| base product number | OPA1611 -> |
| cmrr - common mode rejection ratio: | 120 dB |
| common mode rejection ratio | 110(dB) |
| current - input bias | 60nA |
| current - output / channel | 62mA |
| current - supply | 3.6mA |
| dual supply voltage (max) | ±18(V) |
| dual supply voltage (min) | ±2.25(V) |
| eccn | EAR99 |
| en - input voltage noise density: | 1.1 nV/sqrt Hz |
| factory pack quantity: factory pack quantity: | 75 |
| features: | Burr-Brown Audio, Premium Sound |
| gain bandwidth product | 80MHz |
| gbp - gain bandwidth product: | 80 MHz |
| htsus | 8542.33.0001 |
| ib - input bias current: | 60 nA |
| input bias current | 250(nA) |
| input offset voltage | 0.5(mV) |
| input signal type | Differential |
| категория | Электронные компоненты/Микросхемы |
| manufacturer: | Texas Instruments |
| maximum operating frequency | 100 Hz |
| maximum operating temperature | +125 °C |
| maximum operating temperature: | +85 C |
| minimum operating temperature | -55 °C |
| minimum operating temperature: | -40 C |
| moisture sensitive: | Yes |
| moisture sensitivity level (msl) | 2 (1 Year) |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| number of circuits | 1 |
| number of elements | 1 |
| operating supply current: | 3.6 mA |
| operating supply voltage: | 5 V to 38 V |
| operating temperature | -40В°C ~ 85В°C |
| operating temperature classification | Industrial |
| operating temp range | -40C to 85C |
| output current per channel: | 62 mA |
| output signal type | Single |
| output type: | Rail-to-Rail |
| package | Tube |
| package / case | 8-SOIC (0.154"", 3.90mm Width) |
| package/case: | SOIC-8 |
| package type | SOIC |
| packaging | Rail/Tube |
| packaging: | Tube |
| партномер | 8003040981 |
| pin count | 8 |
| power supply rejection ratio | 140(dB) |
| power supply requirement | Single/Dual |
| power supply type | Dual |
| product: | Audio Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| rad hardened | No |
| rail/rail i/o type | Rail to Rail Output |
| rail to rail | No |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series | SoundPlusв„ў -> |
| series: | OPA1611 |
| shutdown: | No Shutdown |
| shut down feature | No |
| single supply voltage (max) | 36(V) |
| single supply voltage (min) | 4.5(V) |
| single supply voltage (typ) | 5/9/12/15/18/24/28(V) |
| slew rate | 27(V/us) |
| sr - slew rate: | 27 V/us |
| subcategory: | Amplifier ICs |
| supplier device package | 8-SOIC |
| supply voltage - max: | 38 V |
| supply voltage - min: | 5 V |
| technology | Bipolar |
| thd plus noise: | 0.000015% |
| type: | 1-Channel, Rail to Rail |
| typical dual supply voltage | ±2.25 →±18V |
| typical gain bandwidth product | 80MHz |
| typical input voltage noise density | 1.5nV/√Hz |
| typical slew rate | 27V/µs |
| typical voltage gain | 130 |
| unity gain bandwidth product | 80 |
| unity gain bandwidth product (typ) | 80(MHz) |
| вес, г | 0.25 |
| voltage gain in db | 130(dB) |
| voltage - input offset | 100ВµV |
| voltage - supply, single/dual (в±) | 4.5V ~ 36V, В±2.25V ~ 18V |
| vos - input offset voltage: | 500 uV |
| width | 4mm |
