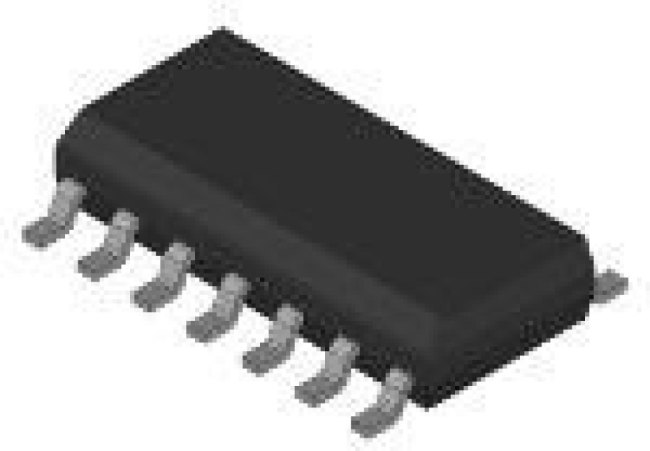

OP481GSZ, Operational Amplifiers - Op Amps Ultralow Power, Rail-to-Rail Output Operational Amplifier (Quad)
Оставить отзыв
В избранноеВ сравнение
Артикул: OP481GSZ
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifier ICs\Operational Amplifiers - Op AmpsAmplifiers ADI SLP
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 22:16:13 |
| Бренд | Analog Devices |
| Вес и габариты | |
| amplifier type: | General Purpose |
| automotive | No |
| cmrr - common mode rejection ratio: | 65 dB |
| dual supply voltage: | +/-5 V |
| eccn (us) | ear99 |
| en - input voltage noise density: | 75 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 56 |
| gbp - gain bandwidth product: | 105 kHz |
| ib - input bias current: | 10 nA |
| in - input noise current density: | 1 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | Low Power Amplifier |
| maximum dual supply voltage: | +/-6 V |
| maximum dual supply voltage (v) | ±6 |
| maximum input bias current (ua) | 0.01@5V@-40C to 85C |
| maximum input offset current (ua) | 0.007@5V@-40C to 85C |
| maximum input offset voltage (mv) | 1.5@5V |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| maximum single supply voltage (v) | 12 |
| maximum supply current (ma) | 0.016@5V |
| minimum cmrr (db) | 65 |
| minimum cmrr range (db) | 65 to 70 |
| minimum dual supply voltage: | +/-1.35 V |
| minimum dual supply voltage (v) | ±1.35 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 76 |
| minimum single supply voltage (v) | 02.07.2024 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| operating supply current: | 16 uA |
| operating supply voltage: | 2.7 V to 12 V |
| output current per channel: | 12 mA |
| output type | CMOS |
| output type: | Rail-to-Rail |
| package / case: | SOIC-14 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8004980466 |
| part status | active |
| pcb changed | 14 |
| pin count | 14 |
| power supply type | Single|Dual |
| ppap | No |
| process technology | BiCMOS |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 76 dB |
| rail to rail | Rail to Rail Output |
| series: | OP481 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 28 mV/us |
| standard package name | SO |
| subcategory: | Amplifier ICs |
| supplier package | SOIC N |
| supplier temperature grade | Extended Industrial |
| supply type: | Single, Dual |
| supply voltage - max: | 12 V, +/-6 V |
| supply voltage - min: | 2.7 V, +/-1.35 V |
| technology: | BiCMOS |
| type | Low Power Amplifier |
| type: | General Purpose Amplifier |
| typical dual supply voltage (v) | ±5 |
| typical gain bandwidth product (mhz) | 0.1 |
| typical input noise voltage density (nv/rthz) | 75@5V |
| typical noninverting input current noise density (pa/rthz) | 1@5V |
| typical slew rate (v/us) | 0.027@5V |
| typical voltage gain (db) | 83.52 |
| вес, г | 0.34 |
| voltage gain db: | 83.52 dB |
| vos - input offset voltage: | 100 uV |
