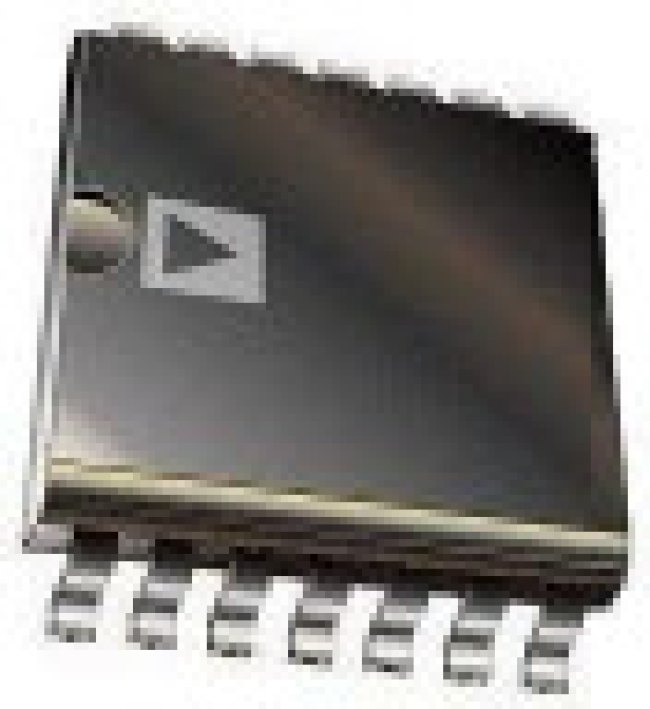

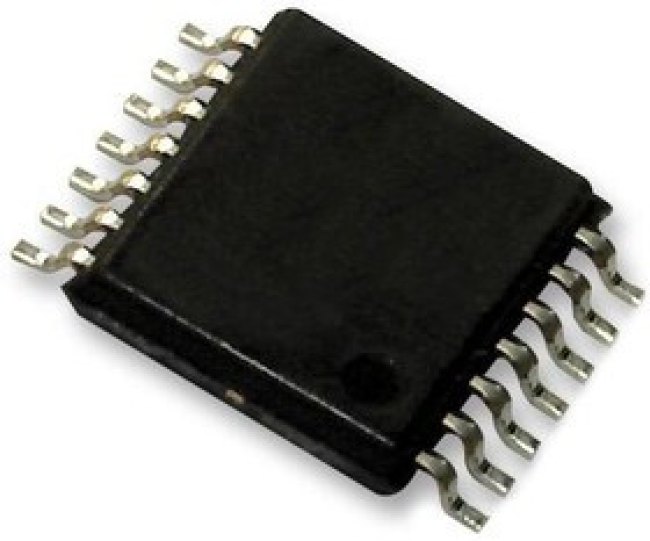

OP462HRUZ-REEL, Операционный усилитель, 4 Усилителя, 15 МГц, 13 В/мкс, 2.7В до 12В, TSSOP, 14 вывод(-ов)

Полупроводники - Микросхемы\Усилители и Компараторы\Операционные Усилители - ОУOP462 is a quad channel operational amplifier. It feature an extra speed and new designs with the benefits of precision and low power operation. With their incredibly low offset voltage of 45µV (typical) and low noise, they are perfectly suited for precision filter applications and instrumentation. In addition, the rail-to-rail output swing provides greater dynamic range and controls the standard video amplifiers. The fast settling times and wide output swings recommend them for buffers to sampling A/D converters. The output drive of 30mA (sink and source) is needed for many audio and display applications more output current can be supplied for limited durations. This amplifier is widely used in application such as portable instrumentation, sampling ADC amplifier wireless LANs, direct access arrangement, office automation etc. • Wide bandwidth is 15MHz• Low offset voltage is 1mV at (VS = 5V, VCM = 0V, TA = 25°C)• Low noise is 9.5nV/√Hz @ 1kHz• Single-supply operation is 2.7V to 12V• Low TCVOS is 1µV/°C typ• High slew rate is 13V/µs• No phase inversion, unity-gain stable• Operating temperature range is -40°C to +125°C• Supply current is 750µA max at VOUT = 2.5V• Packaging style is 14-lead TSSOP
