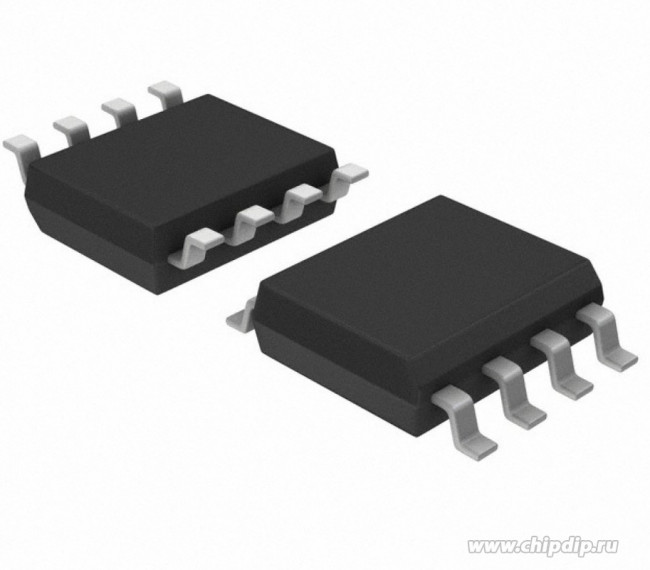

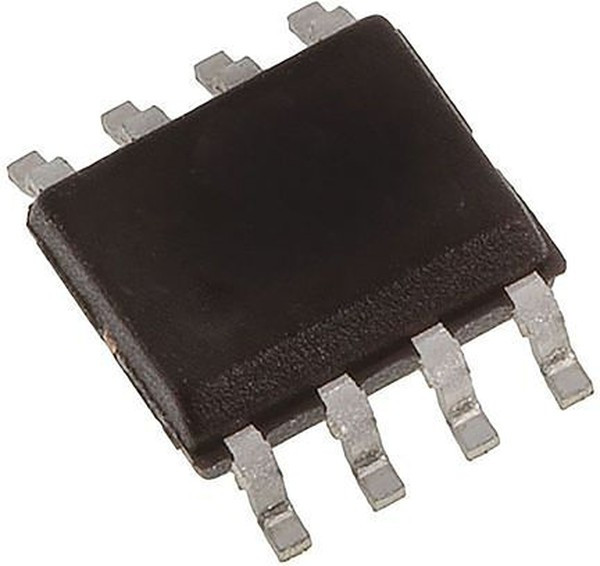

OP292GSZ, Operational Amplifiers - Op Amps SINGLE SUPPLY DUAL OP AMP
Оставить отзыв
В избранноеВ сравнение
Артикул: OP292GSZ
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifier ICs\Operational Amplifiers - Op AmpsAmplifiers ADI SLP
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 21:30:46 |
| Бренд | Analog Devices |
| Вес и габариты | |
| Высота | 1.5мм |
| amplifier type | General Purpose |
| amplifier type: | General Purpose Amplifier |
| base product number | OP292 -> |
| число контактов | 8 |
| cmrr - common mode rejection ratio: | 95 dB |
| common mode rejection ratio | 75(dB) |
| current - input bias | 375nA |
| current - output / channel | 10.5mA |
| current - supply | 1mA (x2 Channels) |
| длина | 5мм |
| dual supply voltage (max) | Not Required(V) |
| dual supply voltage (min) | Not Required(V) |
| dual supply voltage (typ) | Not Required(V) |
| eccn | EAR99 |
| eccn (us) | ear99 |
| en - input voltage noise density: | 15 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 98 |
| gain bandwidth product | 4MHz |
| gbp - gain bandwidth product: | 4 MHz |
| hts | 8542.33.00.01 |
| htsus | 8542.33.0001 |
| ib - input bias current: | 700 nA |
| input bias current | 700(nA) |
| input offset voltage | 0.8(mV) |
| in - input noise current density: | 0.7 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| количество каналов на ис | 2 |
| lead shape | Gull-wing |
| максимальная рабочая температура | +125 °C |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | General Purpose Amplifier |
| maximum input bias current (ua) | 0.7@5V |
| maximum input offset current | 0.05@5V |
| maximum input offset current (ua) | 0.05@5V |
| maximum input offset voltage (mv) | 0.8@5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum single supply voltage (v) | 33 |
| maximum supply current (ma) | 2.4@5V |
| минимальная рабочая температура | -40 °C |
| minimum cmrr (db) | 75 |
| minimum cmrr range (db) | 75 to 80 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 75 |
| minimum single supply voltage (v) | 04.05.2024 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| number of circuits | 2 |
| number of elements | 2 |
| operating supply current: | 2.4 mA |
| operating supply voltage: | 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V |
| operating temperature | -40В°C ~ 125В°C |
| operating temperature classification | AUTOMOTIVEC |
| operating temp range | -40C to 125C |
| output current per channel: | 50 nA |
| output type | CMOS |
| package | Tube |

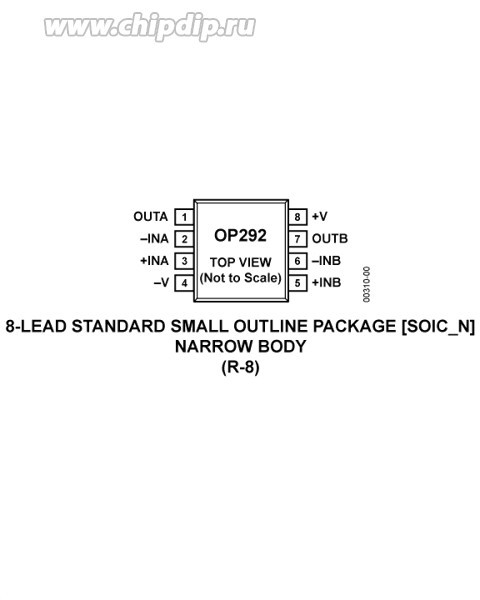

| package / case | 8-SOIC (0.154"", 3.90mm Width) |
| package/case: | SOIC-8 |
| package height | 1.5(Max) |
| package length | 5(Max) |
| package type | SOIC N |
| package width | 4(Max) |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8004691820 |
| part status | NRND |
| pcb changed | 8 |
| pin count | 8 |
| power supply rejection ratio | 75(dB) |
| power supply requirement | Single |
| power supply type | Single |
| process technology | BiCMOS |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 75 dB |
| rad hardened | No |
| rail/rail i/o type | No |
| rail to rail | No |
| размеры | 5 x 4 x 1.5мм |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series: | OP292 |
| shutdown: | No Shutdown |
| shut down feature | No |
| shut down support | No |
| single supply voltage (max) | 33(V) |
| single supply voltage (min) | 4.5(V) |
| single supply voltage (typ) | 5/9/12/15/18/24/28(V) |
| slew rate | 4V/Вµs |
| sr - slew rate: | 3 V/us |
| standard package name | SOP |
| subcategory: | Amplifier ICs |
| supplier device package | 8-SOIC |
| supplier package | SOIC N |
| supplier temperature grade | Extended Industrial |
| supply current | 2.4@5V(mA) |
| supply type: | Single |
| supply voltage - max: | 33 V |
| supply voltage - min: | 4.5 V |
| technology | BiCMOS |
| technology: | BiCMOS |
| типичная интенсивность шумов входного напряжения | 15нВ/√Гц |
| типичная скорость нарастания | 3В/мкс |
| типичное одиночное напряжение питания | 5 → 28 В |
| типичное произведение коэффициента усиления на ширину полосы пропускания | 4МГц |
| типичное усиление по напряжению | 106.02 dB |
| тип источника питания | Одинарный |
| тип корпуса | SOIC |
| тип монтажа | Поверхностный монтаж |
| тип усилителя | Низкая мощность |
| type | General Purpose Amplifier |
| type: | General Purpose Amplifier |
| typical gain bandwidth product (mhz) | 4 |
| typical input noise voltage density (nv/rthz) | 15@5V |
| typical noninverting input current noise density (pa/rthz) | 0.7@5V |
| typical single supply voltage (v) | 12|24|15|5|28|18|9 |
| typical slew rate (v/us) | 3@5V |
| typical voltage gain (db) | 106.02 |
| unity gain bandwidth product | 4 |
| unity gain bandwidth product (typ) | 4MHz |
| вес, г | 0.54 |
| voltage gain db: | 106.02 dB |
| voltage gain in db | 106.02(dB) |
| voltage - input offset | 1mV |
| voltage - supply, single/dual (в±) | 4.5V ~ 33V, В±2.25V ~ 16.5V |
| vos - input offset voltage: | 800 uV |
| Ширина | 4 мм |
