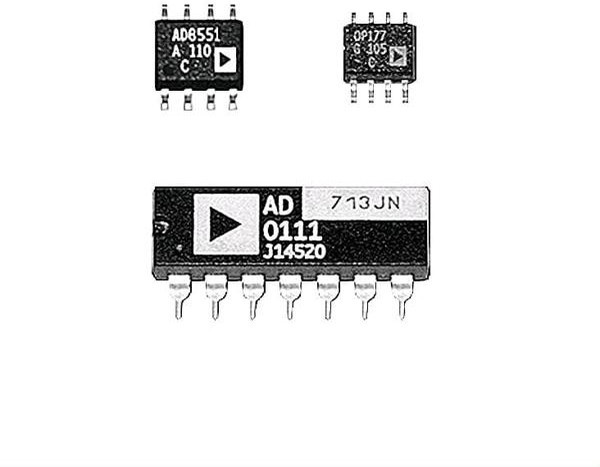

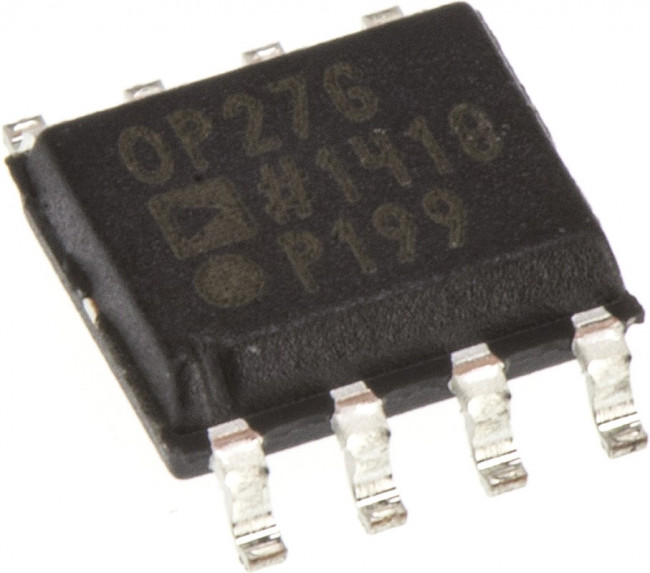

OP27GSZ, Precision Amplifiers SO-8 MARKED AS "OP27G" IC
Оставить отзыв
В избранноеВ сравнение
Артикул: OP27GSZ
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifier ICs\Precision Amplifiers Описание Микросхема, операционный усилитель, 8МГц, Ch: 1, SO8, ±4-18ВDC,8-36ВDC Характеристики Категория
Микросхема
Тип
операционный усилитель
Монтаж
SMD
Кол-во каналов
1
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 23:26:00 |
| Бренд | Analog Devices |
| Вес и габариты | |
| cmrr - common mode rejection ratio | 126 dB |
| cmrr - common mode rejection ratio: | 120 dB |
| dual supply voltage | +/-5 V, +/-9 V, +/-12 V, +/-15 V, +/-18 V |
| dual supply voltage: | +/-5 V, +/-9 V, +/-12 V, +/-15 V, +/-18 V |
| en - input voltage noise density | 3.8 nV/sqrt Hz |
| en - input voltage noise density: | 3.8 nV/sqrt Hz |
| factory pack quantity | 98 |
| factory pack quantity: factory pack quantity: | 98 |
| gbp - gain bandwidth product | 8 MHz |
| gbp - gain bandwidth product: | 8 MHz |
| height | 1.5 mm(Max) |
| ib - input bias current | +/-80 nA |
| ib - input bias current: | 15 nA |
| input voltage range - max | -11 V to+11 V |
| input voltage range - max: | -11 V to+11 V |
| категория | Электронные компоненты/Микросхемы |
| length | 5 mm(Max) |
| manufacturer | Analog Devices Inc. |
| manufacturer: | Analog Devices Inc. |
| maximum dual supply voltage | +/-22 V |
| maximum dual supply voltage: | +/-22 V |
| maximum operating temperature | +85 C |
| maximum operating temperature: | +85 C |
| minimum dual supply voltage | +/-4 V |
| minimum dual supply voltage: | +/-4 V |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels | 1 Channel |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| operating supply current | 4.67 mA |
| operating supply current: | 4.67 mA |
| operating supply voltage | +/-22 V |
| operating supply voltage: | +/-22 V |
| output current per channel: | 20 mA |
| package / case | SOIC-8 |
| package/case: | SOIC-8 |
| package type | SOIC |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8004691817 |
| pd - power dissipation | 170 mW |
| pd - power dissipation: | 170 mW |
| pin count | 8 |
| power supply type | Dual |
| product | Precision Amplifiers |
| product: | Precision Amplifiers |
| product category | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product type | Precision Amplifiers |
| product type: | Precision Amplifiers |
| psrr - power supply rejection ratio | 20 uV/V |
| psrr - power supply rejection ratio: | 20 uV/V |
| rail to rail | No |
| rohs | Details |
| series | OP27 |
| series: | OP27 |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| sr - slew rate | 1.7 V/us |
| sr - slew rate: | 1.7 V/us |
| subcategory | Amplifier ICs |
| subcategory: | Amplifier ICs |
| supply voltage - max | 22 V |
| supply voltage - max: | 22 V |
| supply voltage - min | 11 V |
| supply voltage - min: | -22 V |
| type | Precision |
| type: | Precision |
| typical dual supply voltage | ±4.5 →±18V |
| typical gain bandwidth product | 8MHz |
| typical input voltage noise density | 3.8nV/√Hz |
| typical slew rate | 2.8V/µs |
| typical voltage gain | 123.5 dB |
| unit weight | 0.019048 oz |
| вес, г | 0.2 |
| voltage gain db | 123.52 dB |
| voltage gain db: | 123.52 dB |
| vos - input offset voltage | 100 uV |
| vos - input offset voltage: | 100 uV |
| width | 4 mm(Max) |
