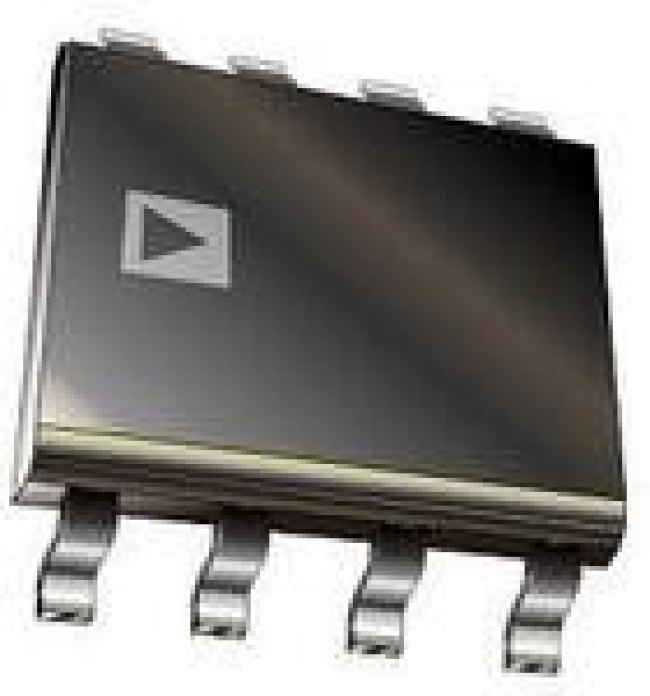

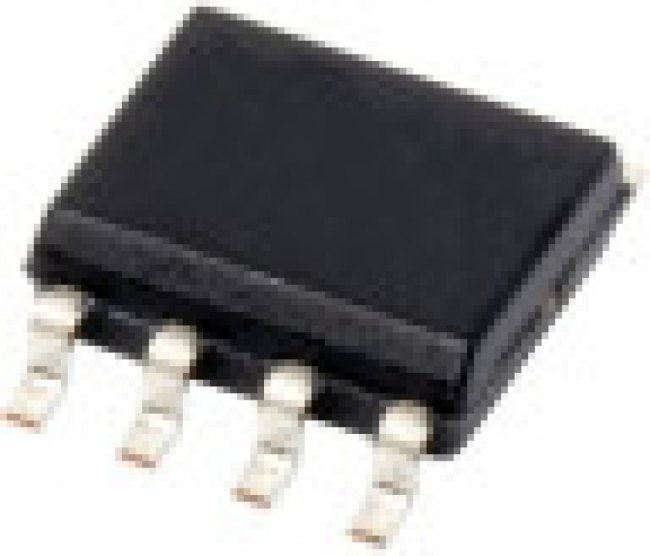

OP07DRZ-REEL
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Amplifiers ADI SLP
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 3:50:05 |
| Бренд | Analog Devices |
| Вес и габариты | |
| amplifier type | General Purpose |
| automotive | No |
| cmrr - common mode rejection ratio: | 115 dB |
| dual supply voltage: | +/-5 V, +/-9 V, +/-12 V, +/-15 V |
| eccn (us) | ear99 |
| en - input voltage noise density: | 10 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 2500 |
| gbp - gain bandwidth product | 600kHz |
| gbp - gain bandwidth product: | 600 kHz |
| ib - input bias current: | 1 nA |
| input voltage range - max: | 18 V |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | Ultra Low Offset Voltage Amplifier |
| maximum dual supply voltage: | +/-18 V |
| maximum dual supply voltage (v) | ±18 |
| maximum input bias current (ua) | 0.001@±5V |
| maximum input offset current (ua) | 0.001@±5V |
| maximum input offset voltage (mv) | 0.15@±5V |
| maximum operating temperature | 125В°C |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum supply current (ma) | 1.25@±5V |
| minimum cmrr (db) | 120 |
| minimum cmrr range (db) | >=115 |
| minimum dual supply voltage: | +/-4 V |
| minimum dual supply voltage (v) | ±4 |
| minimum operating temperature | -40В°C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 115 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| number of circuits | 1 |
| operating supply current: | 1.1 mA |
| operating supply voltage: | 4 V to 18 V |
| output current per channel: | 15 mA |
| package / case: | SOIC-8 |
| packaging | Tape and Reel |
| партномер | 8022698436 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Dual |
| ppap | No |
| product: | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| psrr - power supply rejection ratio: | 115 dB |
| series: | OP07D |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate | 0.2 V/us |
| sr - slew rate: | 200 mV/us |
| standard package name | SO |
| subcategory: | Amplifier ICs |
| supplier package | SOIC N |
| supplier temperature grade | Extended Industrial |
| supply voltage - max | 18V |
| supply voltage - max: | 18 V, +/-18 V |
| supply voltage - min | В±4V |
| supply voltage - min: | 4 V, +/-4 V |
| type | Ultra Low Offset Voltage Amplifier |
| type: | Operational |
| typical dual supply voltage (v) | ±5|±9|±12|±15 |
| typical gain bandwidth product (mhz) | 0.6 |
| typical input noise voltage density (nv/rthz) | 10@±5V |
| typical noninverting input current noise density (pa/rthz) | 0.074@±5V |
| typical output current (ma) | 15@±5V |
| typical slew rate (v/us) | 0.2@±5V |
| typical voltage gain (db) | 140 |
| voltage gain db: | 140 dB |
| vos - input offset voltage: | 40 uV |
