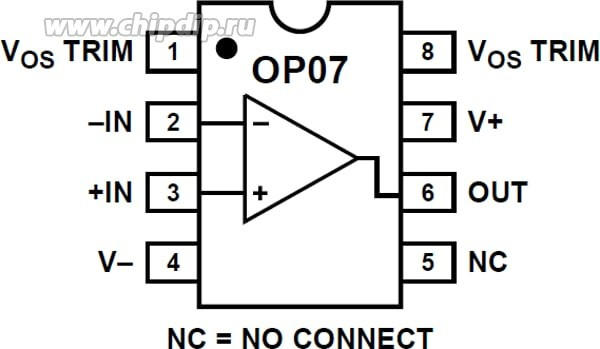

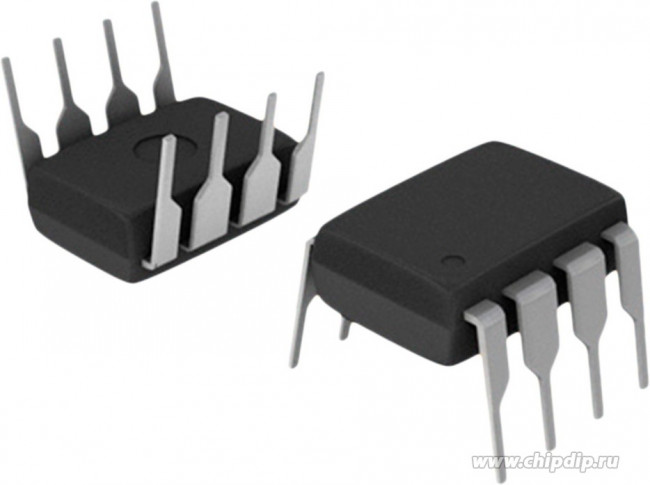

OP07CPZ, Операционный усилитель высокого класса DIP8
Оставить отзыв
В избранноеВ сравнение
Артикул: OP07CPZ
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Описание Операционный усилитель высокого класса DIP8 Характеристики Категория
Микросхема
Тип
операционный усилитель
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 1:14:24 |
| Бренд | Analog Devices |
| Вес и габариты | |
| amplifier type | General Purpose |
| base product number | OP07 -> |
| cmrr - common mode rejection ratio | 120 dB |
| cmrr - common mode rejection ratio: | 120 dB |
| current - input bias | 1.8nA |
| dual supply voltage | +/-5 V, +/-9 V, +/-12 V, +/-15 V |
| dual supply voltage: | +/-5 V, +/-9 V, +/-12 V, +/-15 V |
| eccn | EAR99 |
| eccn (us) | ear99 |
| en - input voltage noise density | 10.5 nV/sqrt Hz at+/-5 V |
| en - input voltage noise density: | 10.5 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity | 50 |
| factory pack quantity: factory pack quantity: | 50 |
| gbp - gain bandwidth product | 600 kHz |
| gbp - gain bandwidth product: | 600 kHz |
| height | 3.43 mm |
| hts | 8542.39.00.01 |
| htsus | 8542.33.0001 |
| ib - input bias current | 9 nA |
| ib - input bias current: | 9 nA |
| input voltage range - max | 13.5 V |
| input voltage range - max: | 13.5 V |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Through Hole |
| length | 9.27 mm |
| manufacturer | Analog Devices Inc. |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | Low Offset Voltage Amplifier |
| maximum dual supply voltage | +/-18 V |
| maximum dual supply voltage: | +/-18 V |
| maximum dual supply voltage (v) | ±18 |
| maximum input bias current (ua) | 0.007@±15V |
| maximum input offset current (ua) | 0.006@±15V |
| maximum input offset voltage (mv) | 0.15@±15V |
| maximum input resistance | 160 GOhms |
| maximum operating temperature | +85 C |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| minimum cmrr (db) | 100 |
| minimum cmrr range (db) | 95 to 105 |
| minimum dual supply voltage | +/-3 V |
| minimum dual supply voltage: | +/-3 V |
| minimum dual supply voltage (v) | ±3 |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 103.09(Typ) |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | Through Hole |
| mounting style | Through Hole |
| mounting style: | Through Hole |
| mounting type | Through Hole |
| number of channels | 1 Channel |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| number of circuits | 1 |
| operating supply current: | 1.1 mA |
| operating supply voltage | 3 V to 18 V |
| operating supply voltage: | 3 V to 18 V |
| operating temperature | -40В°C ~ 85В°C |
| output current per channel: | 15 mA |
| package | Tube |
| package / case | 8-DIP (0.300"", 7.62mm) |
| package / case: | PDIP-8 |
| package height | 03.03.2024 |
| package length | 9.27 |
| package width | 6.35 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8017530259 |
| part status | NRND |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Dual |
| process technology | Bipolar |
| product | Precision Amplifiers |
| product: | Precision Amplifiers |
| product category | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| psrr - power supply rejection ratio | 103.09 dB(Typ) |
| psrr - power supply rejection ratio: | 103.09 dB(Typ) |
| reach status | REACH Unaffected |
| rohs | Details |
| rohs status | ROHS3 Compliant |
| series | OP07 |
| series: | OP07 |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| shut down support | No |
| slew rate | 0.3V/Вµs |
| sr - slew rate | 0.3 V/us |
| sr - slew rate: | 300 mV/us |
| standard package name | DIP |
| subcategory: | Amplifier ICs |
| supplier device package | 8-PDIP |
| supplier package | PDIP N |
| supply voltage - max | 18 V |
| supply voltage - max: | 18 V, +/-18 V |
| supply voltage - min | 3 V |
| supply voltage - min: | 3 V, +/-3 V |
| type | Low Offset Voltage Amplifier |
| type: | Operational |
| typical dual supply voltage (v) | ±5|±9|±12|±15 |
| typical gain bandwidth product (mhz) | 0.6 |
| typical input noise voltage density (nv/rthz) | 10.5@±5V |
| typical noninverting input current noise density (pa/rthz) | 0.35@±15V |
| typical slew rate (v/us) | 0.3@±15V |
| typical voltage gain (db) | 112.04 |
| вес, г | 0.92 |
| voltage gain db | 112.04 dB |
| voltage gain db: | 112.04 dB |
| voltage - input offset | 60ВµV |
| voltage - supply, single/dual (в±) | В±3V ~ 18V |
| vos - input offset voltage | 85 uV |
| vos - input offset voltage: | 85 uV |
| width | 7.24 mm |
