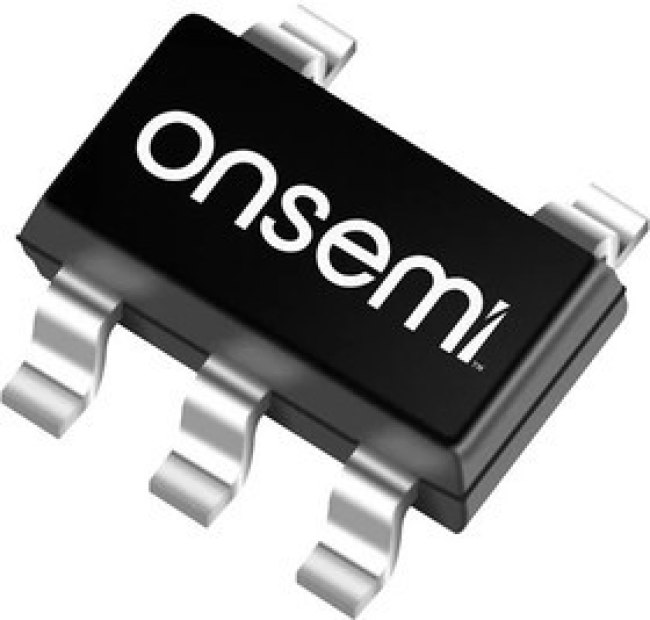

NCV2003SN2T1G, Operational Amplifiers - Op Amps 7MHZHI SLEW Single OP Amp

Оставить отзыв
В избранноеВ сравнение
Артикул: NCV2003SN2T1G
Электронные компоненты Микросхемы Усилители – Инструментальные, Операционные, Буферные ON Semiconductor NCV2003SN2T1G, Operational Amplifiers - Op ...
ON Semiconductor***
Информация о производителе
ПроизводительON Semiconductor***
Основные
Дата загрузки05.05.2024
Время загрузки0:39:48
БрендON Semiconductor***
260
- +
Бонус: 5.2 !
Бонусная программа
Итого: 260
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Semiconductors\Amplifier ICs\Operational Amplifiers - Op AmpsIndustrial Motor Drives According to the 2020 MSMA, or "Motor System Market Analysis, " published by the US Department of Energy (DOE), Industrial Pumps and Drives consume just under 15% of the total US Grid annually. The 2020 MSMA also estimates 32.3 Million Metric Tons of CO2 emissions can be saved annually using VFDs (Variable Frequency Drives). onsemi is a global leader in VFD semiconductor components, including gate drivers, MOSFETs, IGBTs, and EliteSiC. onsemi is committed to Global Sustainability, supplying efficient, renewable technologies and intelligent power.
Информация о производителе
ПроизводительON Semiconductor***
Основные
Дата загрузки05.05.2024
Время загрузки0:39:48
БрендON Semiconductor***
Вес и габариты
amplifier type:Low Voltage Amplifier
cmrr - common mode rejection ratio:90 dB
en - input voltage noise density:20 nV/sqrt Hz
gbp - gain bandwidth product:7 MHz
ib - input bias current:1 pA
in - input noise current density:0.2 pA/sqrt Hz
ios - input offset current:1 pA
категорияЭлектронные компоненты/Микросхемы
manufacturer:onsemi
maximum operating temperature:+125 C
minimum operating temperature:-40 C
mounting style:SMD/SMT
number of channels:1 Channel
operating supply current:300 uA
output current per channel:96 mA
output type:Rail-to-Rail
package/case:TSOP-5
партномер8005373804
product:Operational Amplifiers
product category:Operational Amplifiers-Op Amps
product type:Op Amps-Operational Amplifiers
psrr - power supply rejection ratio:65 dB
qualification:AEC-Q100
shutdown:No Shutdown
sr - slew rate:8 V/us
subcategory:Amplifier ICs
supply voltage - max:5 V
supply voltage - min:1.7 V
thd plus noise:0.005%
вес, г0.0028
vos - input offset voltage:5 mV
