Integrated Circuits (ICs)\Linear - Amplifiers - Instrumentation, OP Amps, Buffer AmpsУсилитель с нулевым дрейфом, 4 цепи, Rail-to-Rail 14-TSSOP

Подробное описание

Основные
moisture sensitivity level (msl)	1 (Unlimited)
mounting type	Surface Mount
operating temperature	-40В°C ~ 125В°C (TA)
package	Tube

1 540 ₽

- +

Бонус: 30.8 !

Бонусная программа

Итого: 1 540 ₽

Купить

Integrated Circuits (ICs)\Linear - Amplifiers - Instrumentation, OP Amps, Buffer AmpsУсилитель с нулевым дрейфом, 4 цепи, Rail-to-Rail 14-TSSOP

Основные
moisture sensitivity level (msl)	1 (Unlimited)
mounting type	Surface Mount
operating temperature	-40В°C ~ 125В°C (TA)
package	Tube
package / case	14-TSSOP (0.173"", 4.40mm Width)
rohs status	ROHS3 Compliant
eccn	EAR99
htsus	8542.33.0001
video file	AmpвЂ™titudes Episode 14 вЂ“ Gas Sensors
reach status	REACH Unaffected
supplier device package	14-TSSOP
package type	TSSOP
minimum operating temperature	-40 C
width	4.5mm
pin count	14
maximum operating temperature	+125 C
base product number	MCP6V74 ->
current - supply	170ВµA (x4 Channels)
power supply type	Single
output type	Rail-to-Rail
Вес и габариты
typical single supply voltage	2 → 5.5 V
number of circuits	4
number of channels per chip	1
amplifier type	Zero-Drift
rail to rail	Rail to Rail Input/Output
current - input bias	1pA
current - output / channel	26mA
gain bandwidth product	2MHz
slew rate	1V/Вµs
voltage - input offset	8ВµV
voltage - supply, single/dual (в±)	2V ~ 5.5V
typical slew rate	1V/us
typical input voltage noise density	21nV/√Hz
typical gain bandwidth product	2MHz
offset voltage	8uV
input offset current	250pA

0.0

общая оценка

Всего 0 отзывов

0 отзывов

Отзывов нет

Кнопки

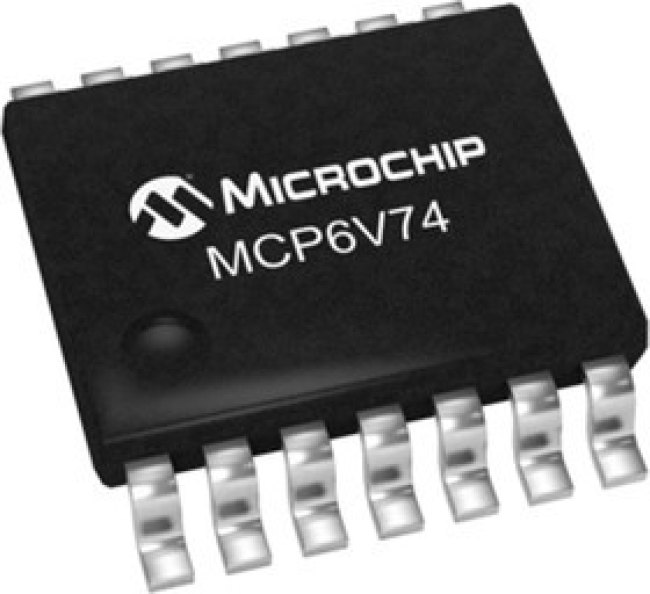

MCP6V74-E/ST
