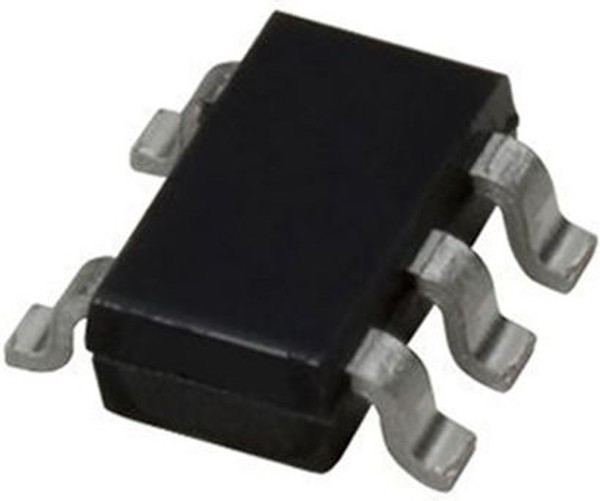

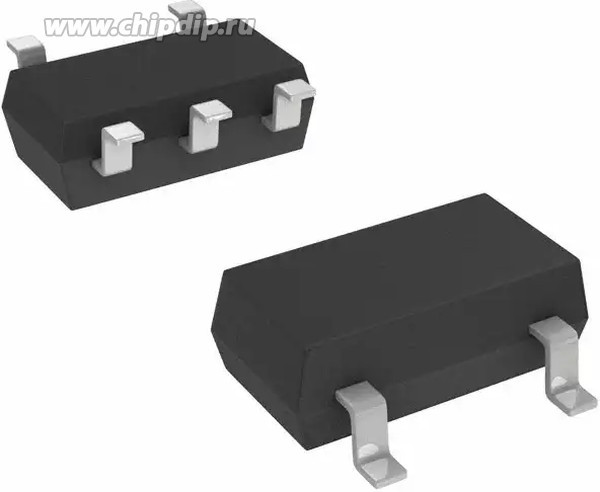

MCP6L01T-E/LT, Operational Amplifiers - Op Amps Single 1.8V 1MHz OP E temp
Оставить отзыв
В избранноеВ сравнение
Артикул: MCP6L01T-E/LT
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Op Amp Single GP R-R I/O 6V 5-Pin SC-70 T/R
| Информация о производителе | |
| Производитель | Microchip Technology |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 3:19:41 |
| Бренд | Microchip Technology |
| Вес и габариты | |
| amplifier type | General Purpose |
| automotive | No |
| common mode rejection ratio | 78(TYP)(dB) |
| dual supply voltage (max) | Not Required(V) |
| dual supply voltage (min) | Not Required(V) |
| dual supply voltage (typ) | Not Required(V) |
| eccn (us) | ear99 |
| eu rohs | compliant |
| input bias current | 0.002(nA) |
| input offset voltage | 5(mV) |
| input offset voltage drift (uv/°c) | ±2(Typ) |
| категория | Электронные компоненты/Микросхемы |
| manufacturer type | General Purpose Amplifier |
| maximum input offset current | 0.000001(TYP)@5V |
| maximum input offset current (ua) | 0.000001(Typ)5V |
| maximum input offset voltage (mv) | 5 5V |
| maximum operating temperature | +125 °C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 0.17 5V |
| maximum single supply voltage (v) | 6 |
| minimum cmrr (db) | 78(Typ) |
| minimum cmrr range (db) | 75 to 80 |
| minimum operating temperature | -40 °C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 83(Typ) |
| minimum single supply voltage (v) | 01.08.2024 |
| mounting | surface mount |
| mounting type | Surface Mount |
| number of channels per chip | 1 |
| number of elements | 1 |
| operating temperature classification | Automotive |
| operating temp range | -40C to 125C |
| output type | CMOS |
| package type | SC-70 |
| packaging | Tape and Reel |
| партномер | 8005539719 |
| part status | active |
| pcb changed | 5 |
| pin count | 5 |
| power supply rejection ratio | 83(TYP)(dB) |
| power supply requirement | Single |
| power supply type | Single |
| ppap | No |
| process technology | CMOS |
| rad hardened | No |
| rail to rail | Rail to Rail Input/Output |
| shut down feature | No |
| shut down support | No |
| single supply voltage (max) | 6(V) |
| single supply voltage (min) | 1.8(V) |
| single supply voltage (typ) | 3/5(V) |
| slew rate | 0.6(V/us) |
| standard package name | SOT |
| supplier package | SC-70 |
| supplier temperature grade | Extended |
| technology | CMOS |
| type | General Purpose Amplifier |
| typical gain bandwidth product | 1MHz |
| typical gain bandwidth product (mhz) | 1 |
| typical input bias current (ua) | 0.000002 5V |
| typical input noise voltage density (nv/rthz) | 24 5V |
| typical input voltage noise density | 24nV/√Hz |
| typical noninverting input current noise density (pa/rthz) | 0.004 5V |
| typical output current (ma) | 150(Max) |
| typical single supply voltage | 1.8 → 6 V |
| typical single supply voltage (v) | 5|3 |
| typical slew rate | 0.6V/µs |
| typical slew rate (v/us) | 0.6 5V |
| typical voltage gain | 105 dB |
| typical voltage gain (db) | 105 |
| unity gain bandwidth product | 1 |
| вес, г | 0.02 |
| voltage gain in db | 105(dB) |
| width | 1.35mm |
