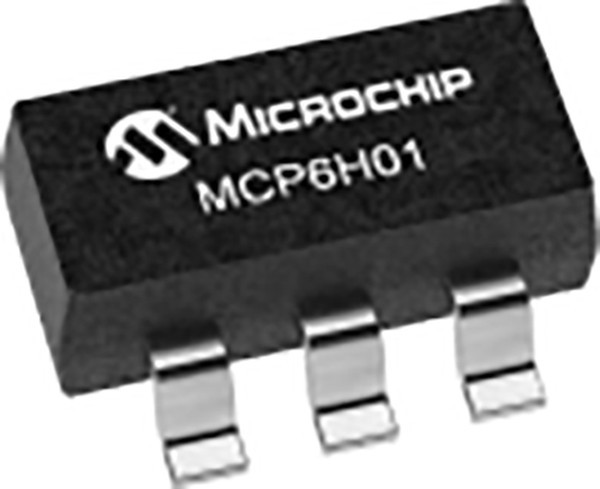

MCP6H01T-E/OT
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
ЭлектроэлементOP-AMP, 1.2MHZ, 0.8V/US, SOT-23-5; No. of Amplifiers:1 Amplifier; Bandwidth:1.2MHz; Slew Rate:0.8V/Вµs; Supply Voltage Range:3.5V to 16V, В± 1.75V to В± 8V; Amplifier Case Style:SOT-23; No. of Pins:5Pins; Operating Temperat
| Информация о производителе | |
| Производитель | Microchip Technology |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 1:34:41 |
| Бренд | Microchip Technology |
| Вес и габариты | |
| amplifier type | CMOS |
| automotive | Unknown |
| common mode rejection ratio | 78(dB) |
| dual supply voltage (max) | ±8(V) |
| dual supply voltage (min) | ±1.75(V) |
| dual supply voltage (typ) | ±5(V) |
| eccn (us) | ear99 |
| eu rohs | compliant |
| input offset current | 1pA |
| input offset voltage | 3.5@16V(mV) |
| input voltage range | 3.5 → 16 V |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer type | General Purpose Amplifier |
| maximum dual supply voltage (v) | ±8 |
| maximum input bias current (ua) | 0.00001 16V |
| maximum input offset current | 0.000001@16V |
| maximum input offset current (ua) | 0.000001 16V |
| maximum input offset voltage (mv) | 3.5 16V |
| maximum input voltage | 16 V |
| maximum operating temperature | +125 °C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 0.18 5V |
| maximum single supply voltage (v) | 16 |
| minimum cmrr (db) | 78 |
| minimum cmrr range (db) | 75 to 80 |
| minimum dual supply voltage (v) | ±1.75 |
| minimum input voltage | 3.5 V |
| minimum operating temperature | -40 °C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 87 |
| minimum single supply voltage (v) | 03.05.2024 |
| mounting | surface mount |
| mounting type | Surface Mount |
| number of channels per chip | 1 |
| number of elements | 1 |
| offset voltage | ±3.5mV |
| operating temperature classification | Automotive |
| operating temp range | -40C to 125C |
| output current | ±65 mA |
| output type | CMOS |
| package type | SOT-23 |
| packaging | Tape and Reel |
| партномер | 8002990033 |
| part status | active |
| pcb changed | 5 |
| pin count | 5 |
| power supply rejection ratio | 87(dB) |
| power supply requirement | Single/Dual |
| power supply type | Single|Dual |
| ppap | Unknown |
| rad hardened | No |
| rail/rail i/o type | Rail to Rail Output |
| rail to rail | Rail to Rail Output |
| shut down feature | No |
| shut down support | No |
| single supply voltage (max) | 16(V) |
| single supply voltage (min) | 3.5(V) |
| single supply voltage (typ) | 5/9/12/15(V) |
| slew rate | 0.8@16V(V/us) |
| standard package name | SOT |
| supplier package | SOT-23 |
| supplier temperature grade | Extended |
| technology | CMOS |
| type | General Purpose Amplifier |
| typical dual supply voltage (v) | ±5 |
| typical gain bandwidth product | 1.2MHz |
| typical gain bandwidth product (mhz) | 01.02.2024 |
| typical input noise voltage density (nv/rthz) | 35 16V |
| typical input voltage noise density | 35nV/√Hz |
| typical noninverting input current noise density (pa/rthz) | 0.0019 16V |
| typical output current (ma) | 65(Max) |
| typical single supply voltage (v) | 5|9|12|15 |
| typical slew rate | 0.8V/µs |
| typical slew rate (v/us) | 0.8 16V |
| typical voltage gain | 115 dB |
| typical voltage gain (db) | 115 |
| unity gain bandwidth product | 01.02.2024 |
| вес, г | 0.033 |
| voltage gain in db | 115(dB) |
| width | 1.8mm |
