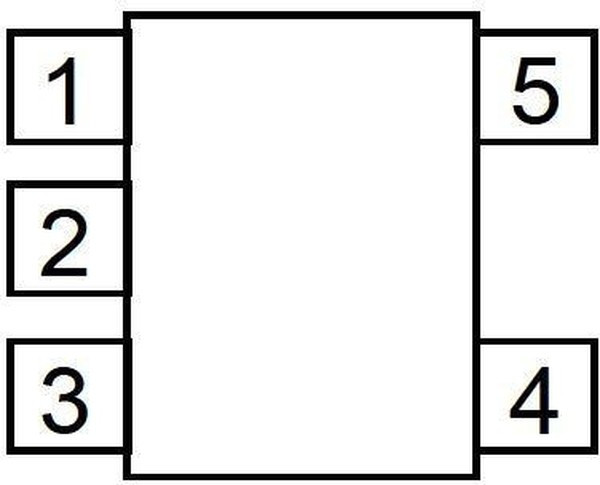

MCP6491T-E/LTY
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
ЭлектроэлементOp Amp Single Low Input Bias Current Amplifier R-R I/O 5.5V Automotive AEC-Q100 5-Pin SC-70 T/R
| Информация о производителе | |
| Производитель | Microchip Technology |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 1:34:41 |
| Бренд | Microchip Technology |
| Вес и габариты | |
| amplifier type: | General Purpose Amplifier |
| automotive | Yes |
| cmrr - common mode rejection ratio: | 88 dB |
| common mode rejection ratio | 65(dB) |
| dual supply voltage (max) | Not Required(V) |
| dual supply voltage (min) | Not Required(V) |
| dual supply voltage (typ) | Not Required(V) |
| eccn (us) | ear99 |
| en - input voltage noise density: | 14 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity | 3000 |
| factory pack quantity: factory pack quantity: | 3000 |
| gbp - gain bandwidth product: | 7.5 MHz |
| ib - input bias current: | 350 pA |
| input offset voltage | 1.5 5.5V(mV) |
| input type: | Rail-to-Rail |
| in - input noise current density: | 0.6 fA/sqrt Hz |
| ios - input offset current: | 100 fA |
| категория | Электронные компоненты/Микросхемы |
| manufacturer | Microchip |
| manufacturer: | Microchip |
| manufacturer type | Low Input Bias Current Amplifier |
| maximum input bias current (ua) | 0.00035@5.5V@125C |
| maximum input offset current | 0.0000001(TYP)5.5V |
| maximum input offset current (ua) | 0.0000001(Typ)@5.5V |
| maximum input offset voltage (mv) | 1.5@5.5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 0.8@5.5V |
| maximum single supply voltage (v) | 05.05.2024 |
| minimum cmrr (db) | 65 |
| minimum cmrr range (db) | 65 to 70 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 75 |
| minimum single supply voltage (v) | 02.04.2024 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| number of elements | 1 |
| operating supply current: | 530 uA |
| operating temperature classification | Automotive |
| operating temp range | -40C to 125C |
| output current per channel: | 15 mA |
| output type | CMOS |
| output type: | Rail-to-Rail |
| package type | SC-70 |
| packaging | Reel |
| партномер | 8002972061 |
| part status | active |
| pcb changed | 5 |
| pin count | 5 |
| power supply rejection ratio | 75(dB) |
| power supply requirement | Single |
| power supply type | Single |
| ppap | Yes |
| process technology | CMOS |
| product | Operational Amplifiers |
| product: | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 90 dB |
| qualification: | AEC-Q100 |
| rad hardened | No |
| rail to rail | Rail to Rail Input/Output |
| rohs | Details |
| series: | MCP6491 |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| shut down feature | No |
| shut down support | No |
| single supply voltage (max) | 5.5(V) |
| single supply voltage (min) | 2.4(V) |
| single supply voltage (typ) | 3/5(V) |
| slew rate | 6(V/us) |
| sr - slew rate: | 6 V/us |
| standard package name | SOT |
| subcategory: | Amplifier ICs |
| supplier package | SC-70 |
| supplier temperature grade | Extended |
| supply voltage - max: | 5.5 V |
| supply voltage - min: | 2.4 V |
| technology | CMOS |
| topology: | Single |
| type | Low Input Bias Current Amplifier |
| typical gain bandwidth product (mhz) | 07.05.2024 |
| typical input bias current (ua) | 0.000001@5.5V |
| typical input noise voltage density (nv/rthz) | 19@5.5V |
| typical noninverting input current noise density (pa/rthz) | 0.0006@5.5V |
| typical output current (ma) | 60(Max) |
| typical slew rate (v/us) | 6@5.5V |
| typical voltage gain (db) | 115 |
| unity gain bandwidth product | 07.05.2024 |
| vcm - common mode voltage: | 0 V to 5.8 V |
| вес, г | 0.0063 |
| voltage gain in db | 115(dB) |
| vos - input offset voltage: | 1.5 mV |
