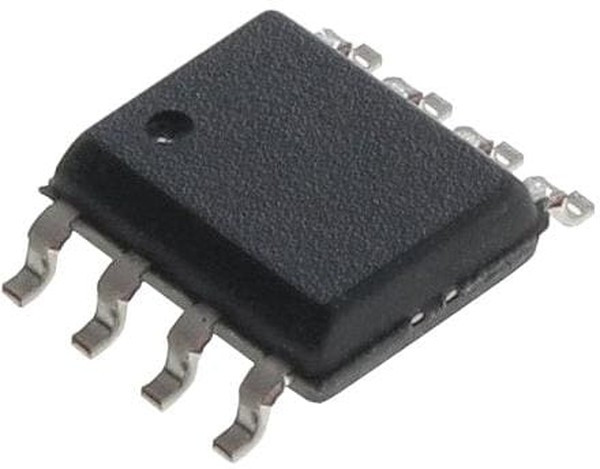

MCP6402-E/SN, Микросхема ОУ dual 1.8V 1МГц SO8
Оставить отзыв
В избранноеВ сравнение
Артикул: MCP6402-E/SN
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Усилитель общего назначения, 2 схемы, Rail-to-Rail 8-SOIC
| Информация о производителе | |
| Производитель | Microchip Technology |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 3:19:50 |
| Бренд | Microchip Technology |
| Вес и габариты | |
| amplifier type | General Purpose |
| base product number | MCP6402 -> |
| cmrr - common mode rejection ratio: | 63 dB |
| current - input bias | 1pA |
| current - output / channel | 15mA |
| current - supply | 45ВµA (x2 Channels) |
| eccn | EAR99 |
| eccn (us) | ear99 |
| en - input voltage noise density: | 28 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 100 |
| gain bandwidth product | 1MHz |
| gbp - gain bandwidth product: | 1 MHz |
| hts | 8542.33.00.01 |
| htsus | 8542.33.0001 |
| ib - input bias current: | 100 pA |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Microchip |
| manufacturer type | General Purpose Amplifier |
| maximum input bias current (ua) | 0.0001@6V |
| maximum input offset current (ua) | 0.000001(Typ)@6V |
| maximum input offset voltage (mv) | 4.5@6V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum single supply voltage (v) | 6 |
| minimum cmrr (db) | 56 |
| minimum cmrr range (db) | 50 to 60 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 63 |
| minimum single supply voltage (v) | 01.08.2024 |
| moisture sensitive: | Yes |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| number of circuits | 2 |
| operating supply current: | 45 uA |
| operating supply voltage: | 1.8 V to 6 V |
| operating temperature | -40В°C ~ 125В°C (TA) |
| output current per channel: | 15 mA |
| output type | CMOS |
| package | Tube |
| package / case | 8-SOIC (0.154"", 3.90mm Width) |
| package / case: | SOIC-8 |
| package height | 1.25(Min) |
| package length | 04.09.2024 |
| package width | 03.09.2024 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8017528707 |
| part status | active |
| pcb changed | 8 |
| pcn design/specification | http://www.microchip.com/mymicrochip/NotificationD |
| pcn packaging | http://www.microchip.com/mymicrochip/NotificationD |
| pin count | 8 |
| power supply type | Single |
| process technology | CMOS |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| qualification: | AEC-Q100 |
| rail to rail | Rail to Rail Input/Output |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series: | MCP6402 |
| shutdown: | No Shutdown |
| shut down support | No |
| slew rate | 0.5V/Вµs |
| sr - slew rate: | 500 mV/us |
| standard package name | SOP |
| subcategory: | Amplifier ICs |
| supplier device package | 8-SOIC |
| supplier package | SOIC N |
| supplier temperature grade | Extended |
| supply type: | Single |
| supply voltage - max: | 6 V |
| supply voltage - min: | 1.8 V |
| type | General Purpose Amplifier |
| typical gain bandwidth product (mhz) | 1 |
| typical input noise voltage density (nv/rthz) | 28@6V |
| typical noninverting input current noise density (pa/rthz) | 0.0006@6V |
| typical output current (ma) | 30(Max) |
| typical single supply voltage (v) | 5|3 |
| typical slew rate (v/us) | 0.5@6V |
| typical voltage gain (db) | 110 |
| vcm - common mode voltage: | 1.8 V to 6 V |
| вес, г | 0.08 |
| voltage - input offset | 800ВµV |
| voltage - supply, single/dual (в±) | 1.8V ~ 6V |
| vos - input offset voltage: | 4.5 mV |
