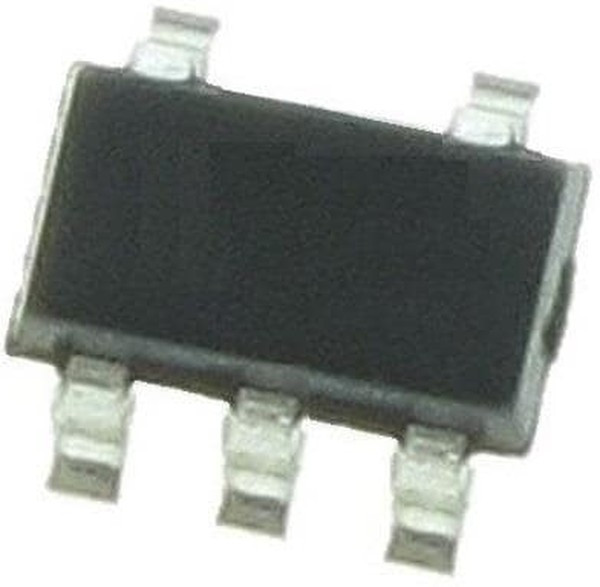

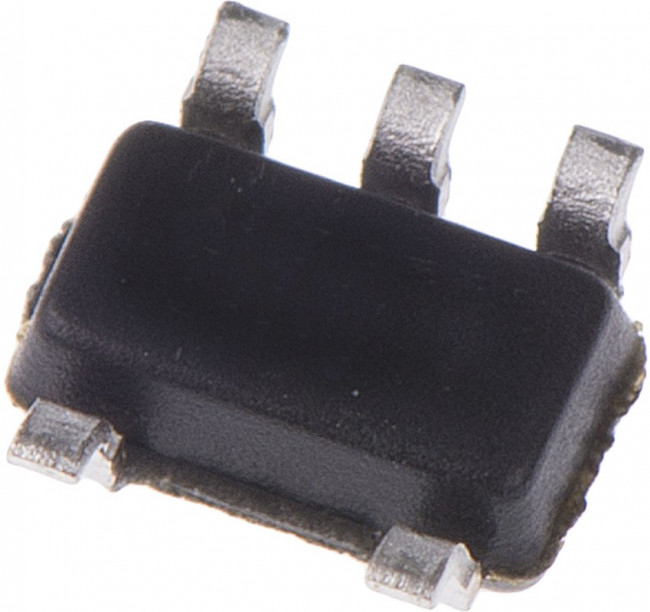

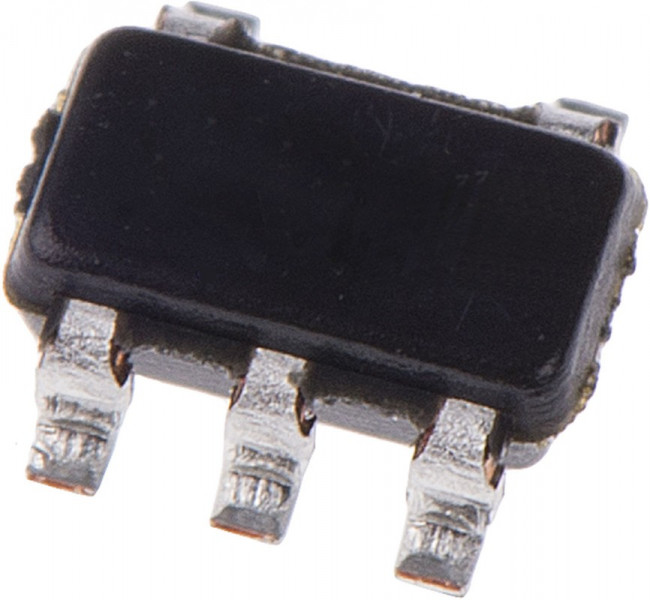

MCP6291T-E/OT, Op Amp Single GP R-R I/O 5.5V Automotive AEC-Q100 5-Pin SOT-23 T/R
Оставить отзыв
В избранноеВ сравнение
Артикул: MCP6291T-E/OT
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Amplifiers\Amplifiers and Comparators\Operational Amplifiers (Op Amps)ОУ Одиночный GP R-R I / O 5.5V Автомобильный 5-контактный SOT-23 T / R
| Информация о производителе | |
| Производитель | Microchip Technology |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 2:23:42 |
| Бренд | Microchip Technology |
| Вес и габариты | |
| amplifier type | General Purpose Amplifier |
| amplifier type: | General Purpose Amplifier |
| automotive | Yes |
| cmrr - common mode rejection ratio | 70 dB |
| cmrr - common mode rejection ratio: | 70 dB |
| eccn (us) | ear99 |
| en - input voltage noise density | 8.7 nV/sqrt Hz |
| en - input voltage noise density: | 8.7 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity | 3000 |
| factory pack quantity: factory pack quantity: | 3000 |
| gbp - gain bandwidth product | 10 MHz |
| gbp - gain bandwidth product: | 10 MHz |
| ib - input bias current | 1 pA |
| ib - input bias current: | 1 pA |
| in - input noise current density | 0.003 pA/sqrt Hz |
| in - input noise current density: | 0.003 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer | Microchip |
| manufacturer: | Microchip |
| manufacturer type | General Purpose Amplifier |
| maximum input bias current (ua) | 0.000001 5.5V |
| maximum input offset current (ua) | 0.000001(Typ)5.5V |
| maximum input offset voltage (mv) | 3 5.5V |
| maximum operating temperature | +125 C |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum single supply voltage (v) | 6 |
| minimum cmrr (db) | 70 |
| minimum cmrr range (db) | 70 to 71 |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 70 |
| minimum single supply voltage (v) | 02.04.2024 |
| mounting | surface mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels | 1 Channel |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| operating supply current | 1 mA |
| operating supply current: | 1 mA |
| operating supply voltage | 2.4 V to 5.5 V |
| operating supply voltage: | 2.4 V to 5.5 V |
| output current per channel | 25 mA |
| output current per channel: | 25 mA |
| output type | CMOS |
| package / case | SOT-23-5 |
| package / case: | SOT-23-5 |
| package type | SOT-23 |
| packaging | Tape and Reel |
| партномер | 8001047423 |
| part status | active |
| pcb changed | 5 |
| pin count | 5 |
| power supply type | Single |
| ppap | Yes |
| process technology | CMOS |
| product | Operational Amplifiers |
| product: | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| product category: | Operational Amplifiers-Op Amps |
| product type | Op Amps-Operational Amplifiers |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio | 70 dB |
| psrr - power supply rejection ratio: | 70 dB |
| qualification: | AEC-Q100 |
| rail to rail | Rail to Rail Input/Output |
| series | MCP6291 |
| series: | MCP6291 |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate | 7 V/us |
| sr - slew rate: | 7 V/us |
| standard package name | SOT |
| subcategory | Amplifier ICs |
| subcategory: | Amplifier ICs |
| supplier package | SOT-23 |
| supplier temperature grade | Extended Industrial |
| supply type | Single |
| supply type: | Single |
| supply voltage - max | 5.5 V |
| supply voltage - max: | 5.5 V |
| supply voltage - min | 2.4 V |
| supply voltage - min: | 2.4 V |
| technology | CMOS |
| technology: | CMOS |
| type | General Purpose Amplifier |
| typical gain bandwidth product | 10MHz |
| typical gain bandwidth product (mhz) | 10 |
| typical input noise voltage density (nv/rthz) | 8.7 5.5V |
| typical input voltage noise density | 8.7nV/√Hz |
| typical noninverting input current noise density (pa/rthz) | 0.003 5.5V |
| typical output current (ma) | 30(Max) |
| typical single supply voltage | 3 V, 5 V |
| typical single supply voltage (v) | 3|5 |
| typical slew rate | 7V/µs |
| typical slew rate (v/us) | 7 5.5V |
| typical voltage gain | 110 dB |
| typical voltage gain (db) | 110 |
| вес, г | 0.5 |
| voltage gain db | 110 dB |
| voltage gain db: | 110 dB |
| vos - input offset voltage | 3 mV |
| vos - input offset voltage: | 3 mV |
| width | 1.8mm |
