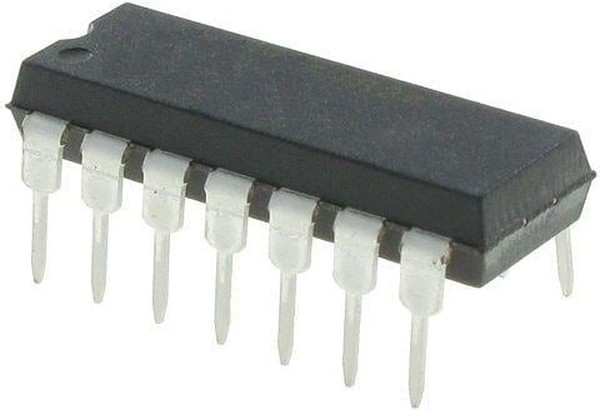

MCP6284-E/P, Операционный усилитель, Четверной, 4 Усилителя, 5 МГц, 2.5 В/мкс, 2.2В до 5.5В, DIP, 14 вывод(-ов)
Оставить отзыв
В избранноеВ сравнение
Артикул: MCP6284-E/P
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Усилитель общего назначения 4 схемы Rail-to-Rail 14-PDIP
| Информация о производителе | |
| Производитель | Microchip Technology |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 1:40:15 |
| Бренд | Microchip Technology |
| Вес и габариты | |
| amplifier type | General Purpose |
| amplifier type: | General Purpose Amplifier |
| base product number | MCP6284 -> |
| cmrr - common mode rejection ratio: | 70 dB |
| current - input bias | 1pA |
| current - output / channel | 25mA |
| current - supply | 450ВµA (x4 Channels) |
| eccn | EAR99 |
| en - input voltage noise density: | 16 nV/sqrt Hz |
| factory pack quantity: factory pack quantity: | 30 |
| gain bandwidth product | 5MHz |
| gbp - gain bandwidth product: | 5 MHz |
| htsus | 8542.33.0001 |
| ib - input bias current: | 1 pA |
| input offset current | 1pA |
| input voltage range | 2.2 → 6 V |
| in - input noise current density: | 0.003 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| manufacturer: | Microchip |
| maximum input voltage | 6 V |
| maximum operating frequency | 1 kHz |
| maximum operating temperature | +125 °C |
| maximum operating temperature: | +125 C |
| minimum input voltage | 2.2 V |
| minimum operating temperature | -40 °C |
| minimum operating temperature: | -40 C |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting style: | Through Hole |
| mounting type | Through Hole |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| number of circuits | 4 |
| offset voltage | ±5mV |
| operating supply current: | 450 uA |
| operating supply voltage: | 2.2 V to 5.5 V |
| operating temperature | -40В°C ~ 125В°C (TA) |
| output current | ±25(Short Circuit)mA |
| output current per channel: | 25 mA |
| output type | Rail-to-Rail |
| package | Tube |
| package / case | 14-DIP (0.300"", 7.62mm) |
| package / case: | PDIP-14 |
| package type | PDIP |
| packaging: | Tube |
| партномер | 8396369855 |
| pcn packaging | http://www.microchip.com/mymicrochip/NotificationD |
| pin count | 14 |
| power supply type | Single |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 70 dB |
| qualification: | AEC-Q100 |
| rail to rail | Rail to Rail Input/Output |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series | Automotive, AEC-Q100 -> |
| series: | MCP6284 |
| shutdown: | No Shutdown |
| slew rate | 2.5V/Вµs |
| sr - slew rate: | 2.5 V/us |
| subcategory: | Amplifier ICs |
| supplier device package | 14-PDIP |
| supply type: | Single |
| supply voltage - max: | 5.5 V |
| supply voltage - min: | 2.2 V |
| technology: | CMOS |
| typical gain bandwidth product | 5MHz |
| typical input voltage noise density | 16nV/√Hz |
| typical single supply voltage | 3 V, 5 V |
| typical slew rate | 2.5V/µs |
| typical voltage gain | 110 dB |
| вес, г | 1.667 |
| voltage gain db: | 110 dB |
| voltage - input offset | 3mV |
| voltage - supply, single/dual (в±) | 2.2V ~ 5.5V |
| vos - input offset voltage: | 3 mV |
| width | 6.35mm |
