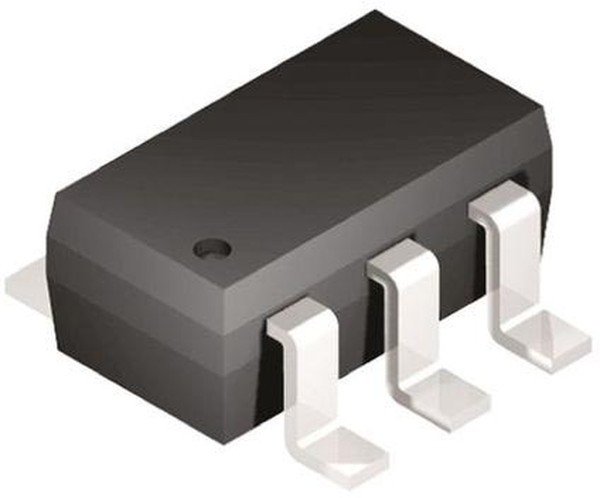

MCP6273T-E/CH, Operational Amplifiers - Op Amps Single 2 MHz OP w/ CS E temp
Оставить отзыв
В избранноеВ сравнение
Артикул: MCP6273T-E/CH
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifier ICs\Operational Amplifiers - Op AmpsOp Amp Single GP R-R I/O 5.5V Automotive AEC-Q100 6-Pin SOT-23 T/R
| Информация о производителе | |
| Производитель | Microchip Technology |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 2:23:42 |
| Бренд | Microchip Technology |
| Вес и габариты | |
| amplifier type | General Purpose |
| amplifier type: | Operational Amplifiers |
| automotive | Yes |
| cmrr - common mode rejection ratio: | 70 dB |
| eccn (us) | ear99 |
| en - input voltage noise density: | 20 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 3000 |
| gbp - gain bandwidth product: | 2 MHz |
| ib - input bias current: | 5 nA |
| in - input noise current density: | 0.003 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Microchip |
| manufacturer type | General Purpose Amplifier |
| maximum input bias current (ua) | 0.000001@5.5V |
| maximum input bias current - (ua) | 0.000001@5.5V |
| maximum input offset current (ua) | 0.000001(Typ)@5.5V |
| maximum input offset current - (ua) | 0.000001(Typ)@5.5V |
| maximum input offset voltage (mv) | 3@5.5V |
| maximum input offset voltage - (mv) | 3@5.5V |
| maximum operating temperature | +125 °C |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum single supply voltage (v) | 6 |
| military | No |
| minimum cmrr (db) | 70 |
| minimum cmrr range (db) | 70 to 71 |
| minimum operating temperature | -40 °C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 70 |
| minimum single supply voltage (v) | 2 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| operating supply current: | 170 uA |
| operating supply voltage: | 2 V to 5.5 V |
| operating temperature - (??c) | -40~125 |
| output current per channel: | 25 mA |
| output type | CMOS |
| package / case: | SOT-23-6 |
| package type | SOT-23 |
| packaging | Tape and Reel |
| партномер | 8004687124 |
| part status | active |
| pcb changed | 6 |
| pin count | 6 |
| power supply type | Single |
| ppap | Yes |
| process technology | CMOS |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 90 dB |
| qualification: | AEC-Q100 |
| rail to rail | Rail to Rail Input/Output |
| series: | MCP6273 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 900 mV/us |
| standard package name | SOT |
| subcategory: | Amplifier ICs |
| supplier package | SOT-23 |
| supplier temperature grade | Extended |
| supply type: | Single |
| supply voltage - max: | 5.5 V |
| supply voltage - min: | 2 V |
| technology: | CMOS |
| type | General Purpose Amplifier |
| typical gain bandwidth product | 2MHz |
| typical gain bandwidth product (mhz) | 2 |
| typical gain bandwidth product - (mhz) | 2 |
| typical input noise voltage density (nv/rthz) | 20@5.5V |
| typical input voltage noise density | 20nV/√Hz |
| typical noninverting input current noise density (pa/rthz) | 0.003@5.5V |
| typical output current (ma) | 30(Max) |
| typical single supply voltage | 2 → 6 V |
| typical slew rate | 0.9V/µs |
| typical slew rate (v/us) | 0.9@5.5V |
| typical slew rate - (v/us) | 0.9@5.5V |
| typical voltage gain | 110 dB |
| typical voltage gain (db) | 110 |
| вес, г | 0.04 |
| voltage gain db: | 110 dB |
| vos - input offset voltage: | 5 mV |
| width | 1.8mm |
