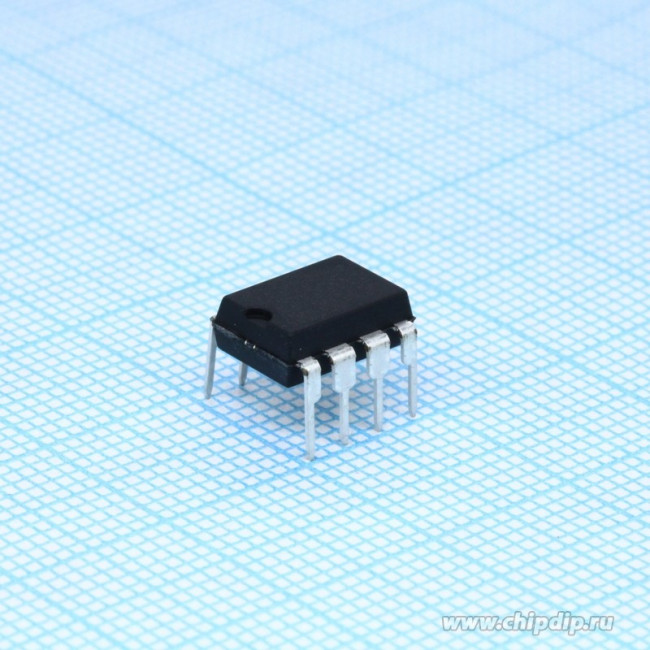

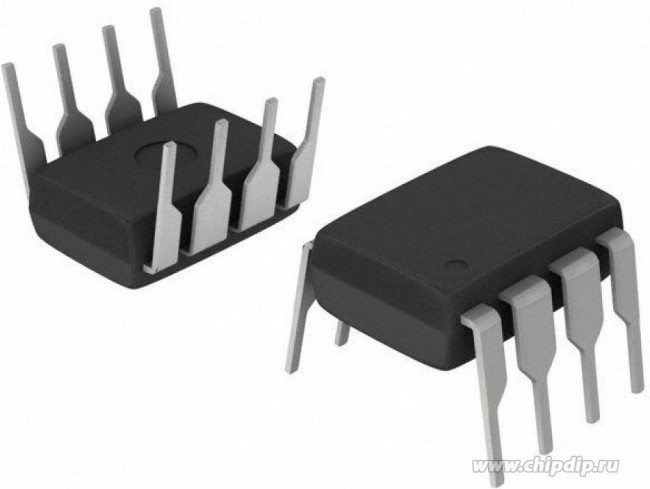

MCP617-I/P, Микросхема ОУ dual Bi-CMOS 2.3-5.5V DIP8
Оставить отзыв
В избранноеВ сравнение
Артикул: MCP617-I/P
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Операционный усилитель Dual Micropower Amplifier R-R O / P 5.5V 8-Pin PDIP Tube
| Информация о производителе | |
| Производитель | Microchip Technology |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 3:48:27 |
| Бренд | Microchip Technology |
| Вес и габариты | |
| amplifier type: | Micropower Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 80 dB |
| eccn (us) | ear99 |
| en - input voltage noise density: | 32 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 60 |
| gbp - gain bandwidth product: | 190 kHz |
| ib - input bias current: | 5 nA |
| in - input noise current density: | 0.07 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Through Hole |
| manufacturer: | Microchip |
| manufacturer type | Micropower Amplifier |
| maximum input bias current (ua) | 0.005 5.5V |
| maximum input offset current (ua) | 0.00015(Typ)5.5V |
| maximum input offset voltage (mv) | 0.15 5.5V |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| maximum quiescent current (ma) | 0.05 5.5V |
| maximum single supply voltage (v) | 05.05.2024 |
| minimum cmrr (db) | 80 |
| minimum cmrr range (db) | 80 to 85 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 86 |
| minimum single supply voltage (v) | 02.03.2024 |
| mounting | Through Hole |
| mounting style: | Through Hole |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| operating supply current: | 19 uA |
| operating supply voltage: | 2.3 V to 5.5 V |
| output current per channel: | 17 mA |
| output type | CMOS |
| package / case: | PDIP-8 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8017528733 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Single |
| ppap | No |
| process technology | BiCMOS |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 86 dB |
| qualification: | AEC-Q100 |
| rail to rail | Rail to Rail Output |
| series: | MCP617 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 80 mV/us |
| standard package name | DIP |
| subcategory: | Amplifier ICs |
| supplier package | PDIP |
| supplier temperature grade | Industrial |
| supply type: | Single |
| supply voltage - max: | 5.5 V |
| supply voltage - min: | 2.3 V |
| technology: | BiCMOS |
| type | Micropower Amplifier |
| typical gain bandwidth product (mhz) | 0.19 |
| typical input noise voltage density (nv/rthz) | 32 5.5V |
| typical noninverting input current noise density (pa/rthz) | 0.07 5.5V |
| typical output current (ma) | 30(Max) |
| typical single supply voltage (v) | 3|5 |
| typical slew rate (v/us) | 0.08 5.5V |
| typical voltage gain (db) | 120 |
| вес, г | 1 |
| voltage gain db: | 120 dB |
| vos - input offset voltage: | 150 uV |
