Semiconductors\Amplifiers & Comparators\Op AmpsОперационный усилитель Quad Precision Amplifier R-R I / O 6V Автомобильная 14-контактная лампа TSSOP

Подробное описание

Основные
mounting type	Surface Mount
type	PRECISION AMPLIFIER
package type	TSSOP
minimum operating temperature	-40 °C

460 ₽

- +

Бонус: 9.2 !

Бонусная программа

Итого: 460 ₽

Купить

Semiconductors\Amplifiers & Comparators\Op AmpsОперационный усилитель Quad Precision Amplifier R-R I / O 6V Автомобильная 14-контактная лампа TSSOP

Основные
mounting type	Surface Mount
type	PRECISION AMPLIFIER
package type	TSSOP
minimum operating temperature	-40 °C
width	4.5mm
pin count	14
maximum operating temperature	+125 °C
packaging	Tube
automotive	Yes
eu rohs	compliant
lead shape	Gull-wing
maximum operating temperature (°c)	125
mounting	surface mount
part status	active
pcb changed	14
ppap	Yes
standard package name	SOP
supplier package	TSSOP
eccn (us)	ear99
minimum operating temperature (°c)	-40
supplier temperature grade	Extended
power supply type	Single
output type	CMOS
maximum single supply voltage (v)	6
minimum single supply voltage (v)	1.8
typical single supply voltage (v)	3\|5
process technology	CMOS
Вес и габариты
typical single supply voltage	1.8 → 6 V
maximum operating frequency	10 kHz
number of channels per chip	4
amplifier type	Precision
rail to rail	Rail to Rail Input/Output
typical output current (ma)	30(Max)
minimum cmrr range (db)	71 to 75
minimum cmrr (db)	72
maximum input offset voltage (mv)	0.15 6V
manufacturer type	Precision Amplifier
maximum input bias current (ua)	0.0001 6V
typical gain bandwidth product (mhz)	1.2
maximum input offset current (ua)	0.000001(Typ)6V
typical slew rate (v/us)	0.5 6V
typical input noise voltage density (nv/rthz)	19 6V
typical voltage gain (db)	115
typical noninverting input current noise density (pa/rthz)	0.0006 6V
minimum psrr (db)	70
shut down support	No
typical slew rate	0.5V/µs
typical input voltage noise density	19nV/√Hz
typical gain bandwidth product	1.2MHz
typical voltage gain	115 dB

0.0

общая оценка

Всего 0 отзывов

0 отзывов

Отзывов нет

Кнопки

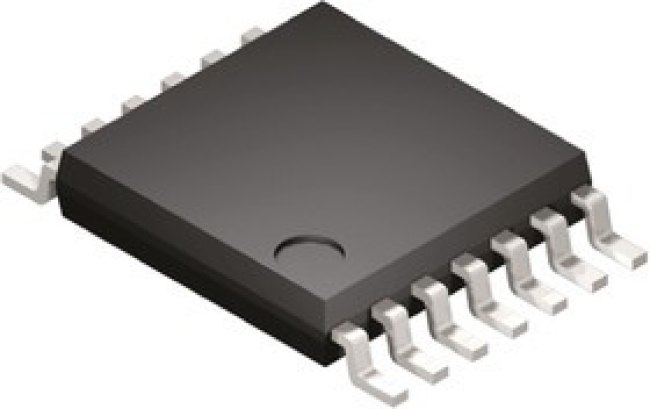

MCP6074-E/ST, MCP6074-E/ST , Precision, Op Amp, RRIO, 1.2MHz 10 kHz, 1.8 6 V, 14-Pin TSSOP
