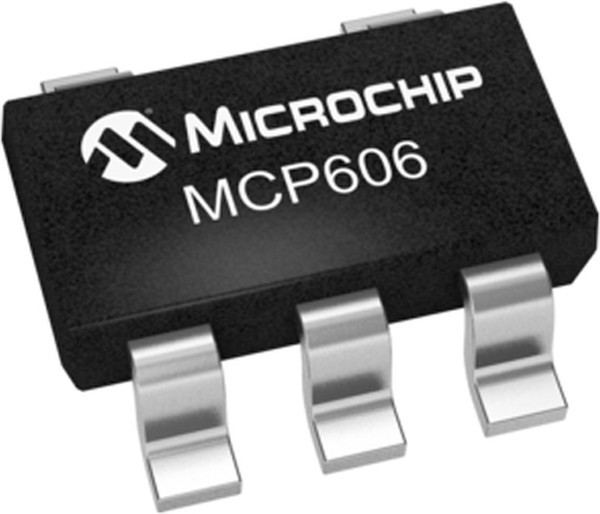

MCP606T-I/OT
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
ЭлектроэлементIC, OP-AMP, 2.5V, R-R, SOT23-5; No. of Amplifiers:1 Amplifier; Bandwidth:155kHz; Slew Rate:0.08V/Вµs; Supply Voltage Range:2.5V to 5.5V; Amplifier Case Style:SOT-23; No. of Pins:5Pins; Operating Temperature Min:-40В°C; Ope
| Информация о производителе | |
| Производитель | Microchip Technology |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 2:07:55 |
| Бренд | Microchip Technology |
| Вес и габариты | |
| amplifier type | Operational Amplifiers |
| Корпус | |
| cmrr - common mode rejection ratio | 75 dB |
| common mode rejection ratio | 75(dB) |
| dual supply voltage (max) | Not Required(V) |
| dual supply voltage (min) | Not Required(V) |
| dual supply voltage (typ) | Not Required(V) |
| en - input voltage noise density | 38 nV/sqrt Hz |
| factory pack quantity | 3000 |
| gbp - gain bandwidth product | 155 kHz |
| ib - input bias current | 80 pA |
| input bias current | 0.001(nA) |
| input offset voltage | 0.25(mV) |
| in - input noise current density | 0.003 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| manufacturer | Microchip |
| maximum input offset current | 0.000001(TYP)@5.5V |
| maximum operating temperature | +85 C |
| minimum operating temperature | -40 C |
| mounting | surface mount |
| mounting style | SMD/SMT |
| mounting type | Surface Mount |
| number of channels | 1 Channel |
| number of channels per chip | 1 |
| number of elements | 1 |
| operating supply current | 18.7 uA |
| operating supply voltage | 2.5 V to 5.5 V |
| operating temperature classification | Industrial |
| operating temp range | -40C to 85C |
| output current per channel | 17 mA |
| package / case | SOT-23-5 |
| package type | SOT-23 |
| packaging | Tape and Reel |
| партномер | 8003792313 |
| pin count | 5 |
| power supply rejection ratio | 80(dB) |
| power supply requirement | Single |
| power supply type | Single |
| product | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| product type | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio | 93 dB |
| rad hardened | No |
| rail/rail i/o type | Rail to Rail Output |
| rail to rail | Rail to Rail Output |
| series | MCP606 |
| shutdown | No Shutdown |
| shut down feature | No |
| single supply voltage (max) | 6(V) |
| single supply voltage (min) | 2.5(V) |
| single supply voltage (typ) | 3/5(V) |
| slew rate | 0.08(V/us) |
| sr - slew rate | 0.08 V/us |
| subcategory | Amplifier ICs |
| supply type | Single |
| supply voltage - max | 5.5 V |
| supply voltage - min | 2.5 V |
| technology | CMOS |
| typical gain bandwidth product | 155kHz |
| typical input voltage noise density | 38nV/√Hz |
| typical single supply voltage | 3 V, 5 V |
| typical slew rate | 0.08V/µs |
| typical voltage gain | 121 dB |
| unity gain bandwidth product | 0.155 |
| voltage gain db | 121 dB |
| voltage gain in db | 121(dB) |
| vos - input offset voltage | 250 uV |
| width | 1.8mm |
