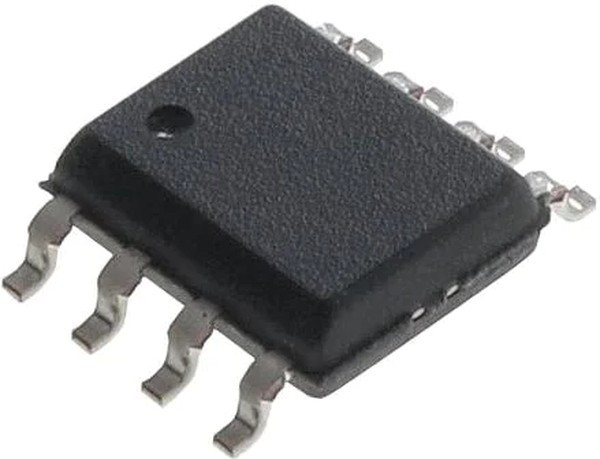

MCP6062-E/SN
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
ЭлектроэлементIC, OP AMP, PREC, 6.0V, 60UA, 8SOIC; No. of Amplifiers:2 Amplifier; Bandwidth:730kHz; Slew Rate:0.25V/Вµs; Supply Voltage Range:1.8V to 6V; Amplifier Case Style:SOIC; No. of Pins:8Pins; Operating Temperature Min:-40В°C; Op
| Информация о производителе | |
| Производитель | Microchip Technology |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 1:13:34 |
| Бренд | Microchip Technology |
| Вес и габариты | |
| amplifier type: | Precision Amplifier |
| cmrr - common mode rejection ratio: | 72 dB |
| common mode rejection ratio | 72(dB) |
| dual supply voltage (max) | Not Required(V) |
| dual supply voltage (min) | Not Required(V) |
| dual supply voltage (typ) | Not Required(V) |
| en - input voltage noise density: | 25 nV/sqrt Hz |
| gbp - gain bandwidth product: | 730 kHz |
| ib - input bias current: | 100 pA |
| input bias current | 0.1(nA) |
| input offset voltage | 0.15(mV) |
| in - input noise current density: | 0.0006 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| manufacturer: | Microchip |
| maximum input offset current | 0.000001(TYP)@6V |
| maximum operating temperature: | +125 C |
| minimum operating temperature: | -40 C |
| moisture sensitive: | Yes |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 2 Channel |
| number of circuits | Dual |
| number of elements | 2 |
| operating supply current: | 60 uA |
| operating supply voltage: | 1.8 V to 6 V |
| operating temperature | -40℃~+125℃ |
| operating temperature classification | Automotive |
| operating temp range | -40C to 125C |
| output current | 27mA |
| output current per channel: | 27 mA |
| output type | - |
| package/case: | SOIC-8 |
| package type | SOIC N |
| packaging | Rail/Tube |
| packaging: | Tube |
| партномер | 8007917622 |
| pin count | 8 |
| power supply rejection ratio | 70(dB) |
| power supply requirement | Single |
| product: | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| psrr - power supply rejection ratio: | 70 dB |
| qualification: | AEC-Q100 |
| rad hardened | No |
| rail to rail | - |
| shutdown: | No Shutdown |
| shut down feature | No |
| single supply voltage (max) | 6(V) |
| single supply voltage (min) | 1.8(V) |
| single supply voltage (typ) | 3/5(V) |
| slew rate | 0.25@6V(V/us) |
| sr - slew rate: | 250 mV/us |
| subcategory: | Amplifier ICs |
| supply type: | Single |
| supply voltage - max: | 6 V |
| supply voltage - min: | 1.8 V |
| technology | CMOS |
| technology: | CMOS |
| type | PRECISION AMPLIFIER |
| unity gain bandwidth product | 0.73 |
| вес, г | 0.175 |
| voltage gain db: | 115 dB |
| voltage gain in db | 115(dB) |
| vos - input offset voltage: | 150 uV |
| -3db bandwidth | - |
