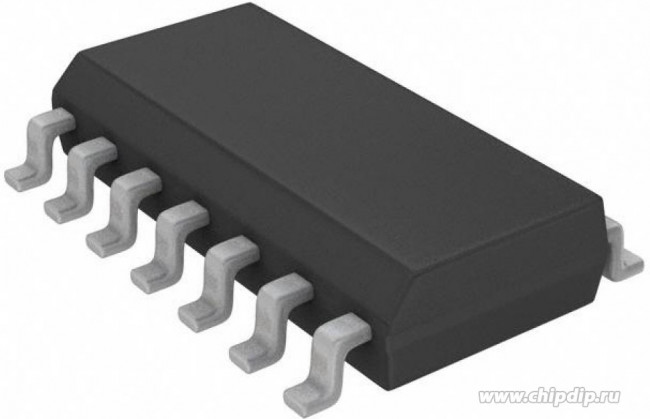

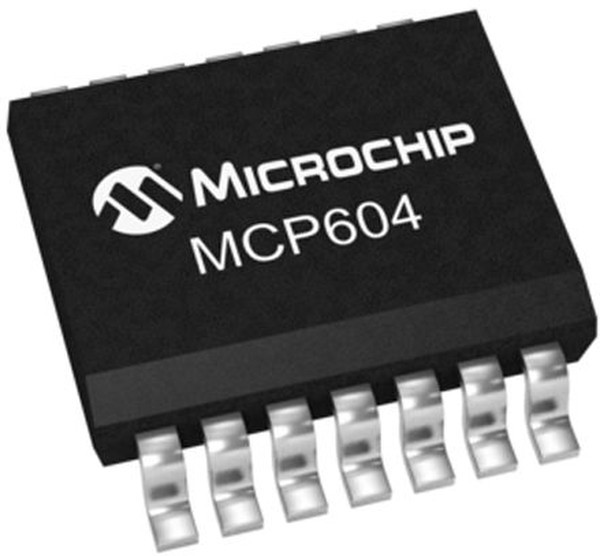

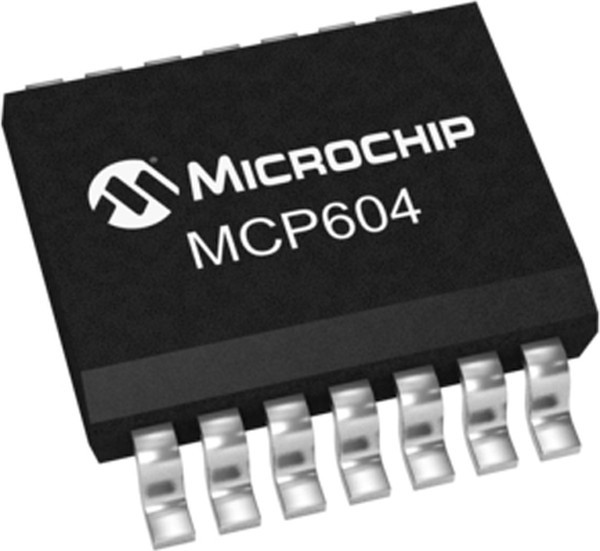

MCP604T-I/SL, Operational Amplifiers - Op Amps Quad 2.7V
Оставить отзыв
В избранноеВ сравнение
Артикул: MCP604T-I/SL
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Операционный усилитель счетверенный маломощный уровень входа/выхода до напряжения питания 6В Автомобильный
| Информация о производителе | |
| Производитель | Microchip Technology |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 4:15:54 |
| Бренд | Microchip Technology |
| Вес и габариты | |
| amplifier type | General Purpose |
| amplifier type: | Low Power Amplifier |
| cmrr - common mode rejection ratio: | 75 dB |
| common mode rejection ratio | 75(dB) |
| dual supply voltage (max) | Not Required(V) |
| dual supply voltage (min) | Not Required(V) |
| dual supply voltage (typ) | Not Required(V) |
| en - input voltage noise density: | 29 nV/sqrt Hz |
| factory pack quantity: factory pack quantity: | 57 |
| gbp - gain bandwidth product | 2.8MHz |
| gbp - gain bandwidth product: | 2.8 MHz |
| ib - input bias current: | 60 pA |
| input bias current | 0.001(nA) |
| input offset voltage | 2(mV) |
| in - input noise current density: | 0.0006 pA/sqrt Hz |
| iq per channel (typ) | 230uA |
| категория | Электронные компоненты/Микросхемы |
| manufacturer: | Microchip |
| maximum input offset current | 0.000001(TYP)@5.5V |
| maximum operating temperature | 85В°C |
| maximum operating temperature: | +85 C |
| minimum operating temperature | -40В°C |
| minimum operating temperature: | -40 C |
| moisture sensitive: | Yes |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 4 Channel |
| number of channels per chip | 2 |
| number of circuits | 4 |
| number of elements | 4 |
| operating supply current: | 23 uA |
| operating supply voltage: | 2.7 V to 5.5 V |
| operating temperature classification | Industrial |
| operating temp range | -40C to 85C |
| output current per channel: | 22 mA |
| output type | Rail-to-Rail |
| package/case: | SOIC-14 |
| package type | SOIC |
| packaging | Tape and Reel |
| packaging: | Tube |
| партномер | 8004944050 |
| pin count | 14 |
| power supply rejection ratio | 80(dB) |
| power supply requirement | Single |
| power supply type | Single |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 80 dB |
| qualification: | AEC-Q100 |
| rad hardened | No |
| rail/rail i/o type | Rail to Rail Output |
| rail to rail | Rail to Rail Output |
| series: | MCP604 |
| settling time | 4.5(us) |
| shutdown: | No Shutdown |
| shut down feature | No |
| single supply voltage (max) | 6(V) |
| single supply voltage (min) | 2.7(V) |
| single supply voltage (typ) | 3/5(V) |
| slew rate | 2.3(V/us) |
| sr - slew rate | 2.3 V/us |
| sr - slew rate: | 2.3 V/us |
| subcategory: | Amplifier ICs |
| supply type: | Single |
| supply voltage - max | 6V |
| supply voltage - max: | 5.5 V |
| supply voltage - min | 2.7V |
| supply voltage - min: | 2.7 V |
| technology | CMOS |
| technology: | CMOS |
| type | Low Power Amplifier |
| typical gain bandwidth product | 2.8MHz |
| typical input voltage noise density | 29nV/√Hz |
| typical single supply voltage | 2.7 → 6 V |
| typical slew rate | 2.3V/µs |
| typical voltage gain | 115 dB |
| unity gain bandwidth product | 02.08.2024 |
| вес, г | 0.338 |
| voltage gain db: | 115 dB |
| voltage gain in db | 115(dB) |
| vos - input offset voltage: | 2 mV |
| width | 3.9mm |
