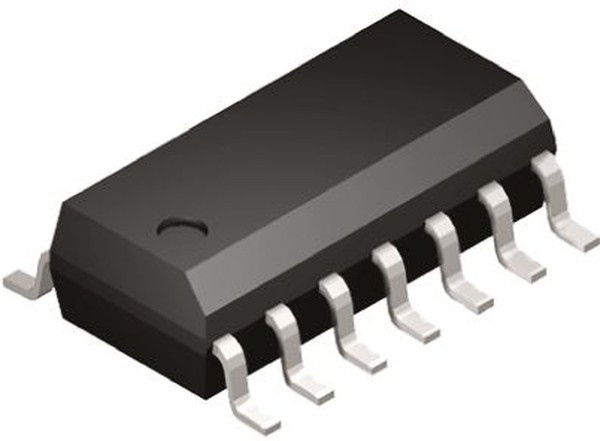

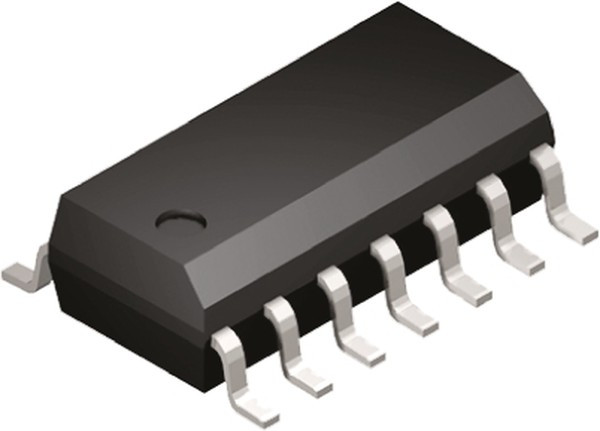

MCP6044-I/SL, Operational Amplifiers - Op Amps Quad 1.6V 10kHz
Оставить отзыв
В избранноеВ сравнение
Артикул: MCP6044-I/SL
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifier ICs\Operational Amplifiers - Op Amps Операционные усилители MCP6041 / 6042/6043/6044
| Информация о производителе | |
| Производитель | Microchip Technology |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 2:52:18 |
| Бренд | Microchip Technology |
| Вес и габариты | |
| amplifier type | General Purpose |
| amplifier type: | General Purpose Amplifier |
| cmrr - common mode rejection ratio: | 80 dB |
| common mode rejection ratio | 60(dB) |
| dual supply voltage (max) | Not Required(V) |
| dual supply voltage (min) | Not Required(V) |
| dual supply voltage (typ) | Not Required(V) |
| en - input voltage noise density: | 170 nV/sqrt Hz |
| factory pack quantity: factory pack quantity: | 57 |
| gbp - gain bandwidth product: | 14 kHz |
| ib - input bias current: | 1 pA |
| input bias current | 0.001(nA) |
| input offset voltage | 3(mV) |
| in - input noise current density: | 0.0006 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| manufacturer: | Microchip |
| maximum input offset current | 0.000001(TYP)@5.5V |
| maximum operating temperature | +85 °C |
| maximum operating temperature: | +85 C |
| minimum operating temperature | -40 °C |
| minimum operating temperature: | -40 C |
| moisture sensitive: | Yes |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| number of elements | 4 |
| operating supply current: | 600 nA |
| operating supply voltage: | 1.4 V to 5.5 V |
| operating temperature classification | Industrial |
| operating temp range | -40C to 85C |
| output current per channel: | 30 mA |
| package/case: | SOIC-14 |
| package type | SOIC |
| packaging | Tape and Reel |
| packaging: | Tube |
| партномер | 8004687115 |
| pin count | 14 |
| power supply rejection ratio | 70(dB) |
| power supply requirement | Single |
| power supply type | Single |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 70 dB |
| qualification: | AEC-Q100 |
| rad hardened | No |
| rail to rail | Rail to Rail Input/Output |
| series: | MCP6044 |
| shutdown: | No Shutdown |
| shut down feature | No |
| single supply voltage (max) | 6(V) |
| single supply voltage (min) | 1.4(V) |
| single supply voltage (typ) | 3/5(V) |
| slew rate | 0.003(V/us) |
| sr - slew rate: | 3 V/us |
| subcategory: | Amplifier ICs |
| supply type: | Single |
| supply voltage - max: | 5.5 V |
| supply voltage - min: | 1.4 V |
| technology | CMOS |
| technology: | CMOS |
| typical gain bandwidth product | 14kHz |
| typical input voltage noise density | 170nV/√Hz |
| typical single supply voltage | 3 V, 5 V |
| typical slew rate | 0.003V/µs |
| typical voltage gain | 115 dB |
| unity gain bandwidth product | 0.014 |
| вес, г | 0.7 |
| voltage gain db: | 115 dB |
| voltage gain in db | 115(dB) |
| vos - input offset voltage: | 3 mV |
| width | 3.9mm |
