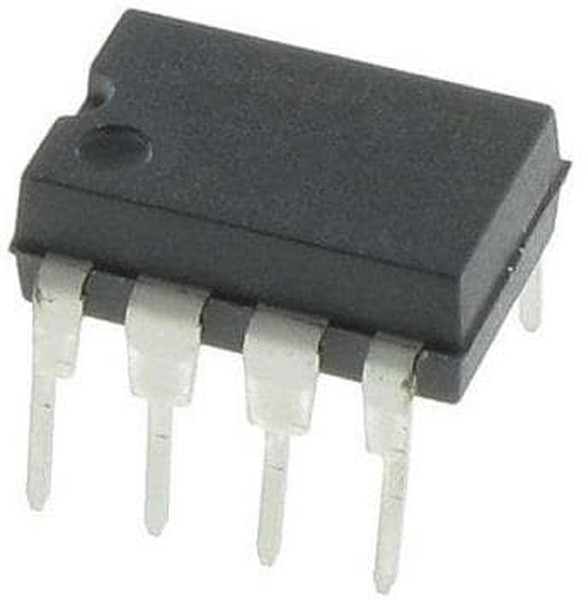

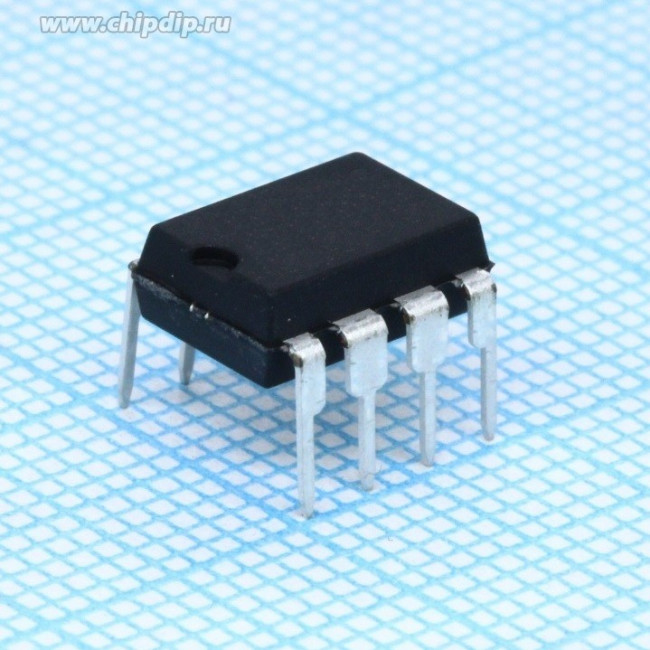

MCP6042-E/P, Операционный усилитель сдвоенный общего применения уровень входа/выхода до напряжения питания 6В Автомобильный
Оставить отзыв
В избранноеВ сравнение
Артикул: MCP6042-E/P
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Микросхемы / Усилители и компараторы / Операционные усилителиОперационный усилитель сдвоенный общего применения уровень входа/выхода до напряжения питания 6В Автомобильный
| Информация о производителе | |
| Производитель | Microchip Technology |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 0:30:55 |
| Бренд | Microchip Technology |
| Вес и габариты | |
| amplifier type | General Purpose |
| amplifier type: | General Purpose Amplifier |
| automotive | Yes |
| base product number | MCP6042 -> |
| cmrr - common mode rejection ratio: | 80 dB |
| current - input bias | 1pA |
| current - output / channel | 20mA |
| current - supply | 600nA (x2 Channels) |
| eccn | EAR99 |
| eccn (us) | ear99 |
| en - input voltage noise density: | 170 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 60 |
| gain bandwidth product | 14kHz |
| gbp - gain bandwidth product: | 14 kHz |
| htsus | 8542.33.0001 |
| ib - input bias current: | 1 pA |
| in - input noise current density: | 0.0006 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| Корпус | 8-PDIP |
| lead shape | Through Hole |
| manufacturer: | Microchip |
| manufacturer type | General Purpose Amplifier |
| maximum input offset current (ua) | 0.000001(Typ)5.5V |
| maximum input offset voltage (mv) | 3 5.5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 0.002 5.5V |
| maximum single supply voltage (v) | 6 |
| minimum cmrr (db) | 60 |
| minimum cmrr range (db) | 60 to 65 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 70 |
| minimum single supply voltage (v) | 01.04.2024 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | Through Hole |
| mounting style: | Through Hole |
| mounting type | Through Hole |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| number of circuits | 2 |
| operating supply current: | 600 nA |
| operating supply voltage: | 1.4 V to 5.5 V |
| operating temperature | -40В°C ~ 125В°C (TA) |
| output current per channel: | 30 mA |
| output type | Rail-to-Rail |
| package | Tube |
| package / case | 8-DIP (0.300"", 7.62mm) |
| package / case: | PDIP-8 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8001825461 |
| part status | active |
| pcb changed | 8 |
| pcn packaging | http://www.microchip.com/mymicrochip/NotificationD |
| pin count | 8 |
| power supply type | Single |
| ppap | Yes |
| process technology | CMOS |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 70 dB |
| qualification: | AEC-Q100 |
| rail to rail | Rail to Rail Input/Output |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series: | MCP6042 |
| shutdown: | No Shutdown |
| shut down support | No |
| slew rate | 3V/ms |
| sr - slew rate: | 3 V/us |
| standard package name | DIP |
| subcategory: | Amplifier ICs |
| supplier device package | 8-PDIP |
| supplier package | PDIP |
| supplier temperature grade | Extended |
| supply type: | Single |
| supply voltage - max: | 5.5 V |
| supply voltage - min: | 1.4 V |
| technology: | CMOS |
| type | General Purpose Amplifier |
| typical gain bandwidth product (mhz) | 0.014 |
| typical input bias current (ua) | 0.000001 5.5V |
| typical input noise voltage density (nv/rthz) | 170 5.5V |
| typical noninverting input current noise density (pa/rthz) | 0.0006 5.5V |
| typical output current (ma) | 30(Max) |
| typical single supply voltage (v) | 5|3 |
| typical slew rate (v/us) | 0.003 5.5V |
| typical voltage gain (db) | 115 |
| вес, г | 0.03 |
| voltage gain db: | 115 dB |
| voltage - input offset | 3mV |
| voltage - supply, single/dual (в±) | 1.4V ~ 6V |
| vos - input offset voltage: | 3 mV |
