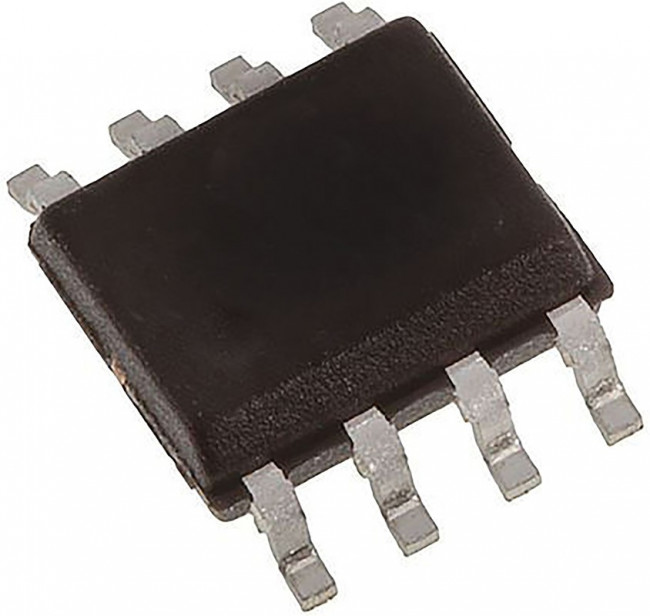

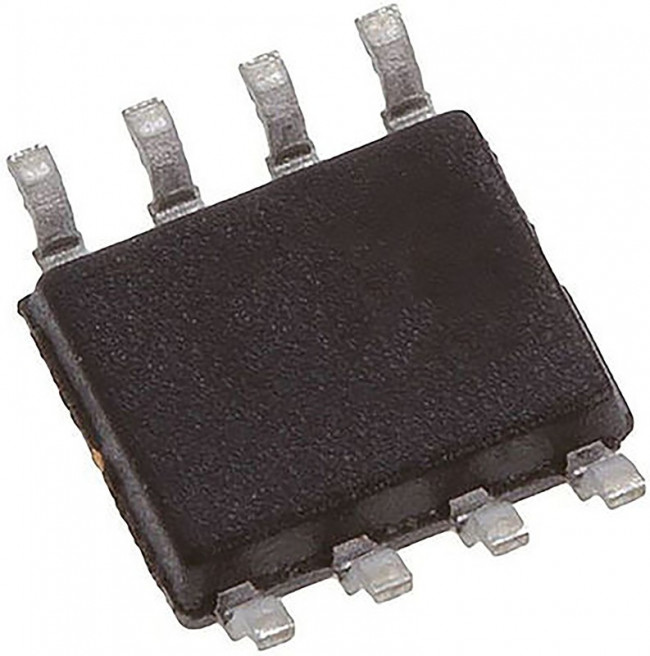

MCP6032-E/SN, Precision Amplifiers Dual 1.8V 14kHz Op Amp E temp
Оставить отзыв
В избранноеВ сравнение
Артикул: MCP6032-E/SN
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Описание Микросхема 2x операционный усилитель 1,8В 14kГц SO8
| Информация о производителе | |
| Производитель | Microchip Technology |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 4:15:54 |
| Бренд | Microchip Technology |
| Вес и габариты | |
| amplifier type | Precision |
| automotive | Yes |
| cmrr - common mode rejection ratio | 70 dB |
| eccn (us) | ear99 |
| en - input voltage noise density | 165 nV |
| eu rohs | compliant |
| factory pack quantity | 100 |
| gbp - gain bandwidth product | 10 kHz |
| ib - input bias current | 100 pA |
| input offset current | 1pA |
| input voltage range | 1.8 → 5.5 V |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer | Microchip |
| manufacturer type | Precision Amplifier |
| maximum input bias current (ua) | 0.0001 5.5V |
| maximum input offset current (ua) | 0.000001(Typ)5.5V |
| maximum input offset voltage (mv) | 0.15 3V |
| maximum input voltage | 5.5 V |
| maximum operating frequency | 1 kHz |
| maximum operating temperature | +125 °C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 0.0027 5.5V |
| maximum single supply voltage (v) | 05.05.2024 |
| minimum cmrr (db) | 70 |
| minimum cmrr range (db) | 70 to 71 |
| minimum input voltage | 1.8 V |
| minimum operating temperature | -40 °C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 70 |
| minimum single supply voltage (v) | 01.08.2024 |
| mounting | surface mount |
| mounting style | SMD/SMT |
| mounting type | Surface Mount |
| number of channels | 2 Channel |
| number of channels per chip | 2 |
| offset voltage | ±150µV |
| output current | ±23(Short Circuit)mA |
| output current per channel | 23 mA |
| output type | CMOS |
| package / case | SOIC-Narrow-8 |
| package type | SOIC |
| packaging | Tube |
| партномер | 8006410714 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Single |
| ppap | Yes |
| process technology | CMOS |
| product | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| psrr - power supply rejection ratio | 70 dB |
| rail to rail | Rail to Rail Input/Output |
| rohs | Details |
| shutdown | No Shutdown |
| shut down support | No |
| sr - slew rate | 4 V/us |
| standard package name | SOP |
| supplier package | SOIC N |
| supplier temperature grade | Extended |
| supply current per channel | 0.9 uA |
| supply voltage - max | 5.5 V |
| supply voltage - min | 1.8 V |
| technology | CMOS |
| type | PRECISION AMPLIFIER |
| typical gain bandwidth product | 10kHz |
| typical gain bandwidth product (mhz) | 0.01 |
| typical input noise voltage density (nv/rthz) | 165 5.5V |
| typical input voltage noise density | 165nV/√Hz |
| typical noninverting input current noise density (pa/rthz) | 0.0006 5.5V |
| typical output current (ma) | 30(Max) |
| typical single supply voltage | 3 V, 5 V |
| typical single supply voltage (v) | 3|5 |
| typical slew rate | 4V/ms |
| typical slew rate (v/us) | 4000 5.5V |
| typical voltage gain | 115 dB |
| typical voltage gain (db) | 115 |
| вес, г | 0.187 |
| vos - input offset voltage | 150 uV |
| width | 3.9mm |
