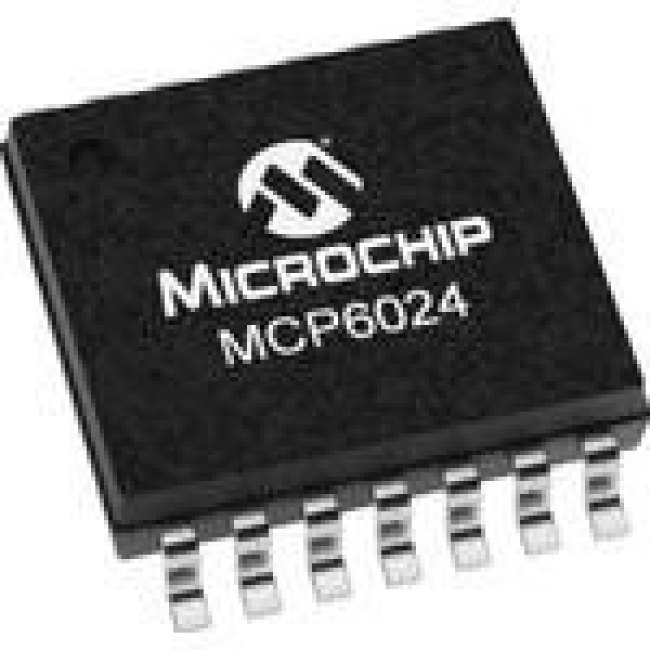

MCP6024-E/ST, Op Amp Quad GP R-R I/O 5.5V Automotive 14-Pin TSSOP Tube
Оставить отзыв
В избранноеВ сравнение
Артикул: MCP6024-E/ST
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Amplifiers\Amplifiers and Comparators\Operational Amplifiers (Op Amps)Операционный усилитель Quad GP R-R I / O 5.5V Автомобильная 14-контактная лампа TSSOP
| Основные | |
| package / case | TSSOP-14 |
| type | General Purpose Amplifier |
| minimum operating temperature | -40 C |
| pin count | 14 |
| factory pack quantity | 96 |
| manufacturer | Microchip |
| maximum operating temperature | +125 C |
| mounting style | SMD/SMT |
| packaging | Tube |
| product category | Operational Amplifiers-Op Amps |
| automotive | Yes |
| eu rohs | compliant |
| lead shape | Gull-wing |
| maximum operating temperature (°c) | 125 |
| mounting | surface mount |
| part status | active |
| pcb changed | 14 |
| ppap | Yes |
| standard package name | SOP |
| supplier package | TSSOP |
| eccn (us) | ear99 |
| minimum operating temperature (°c) | -40 |
| supplier temperature grade | Extended |
| power supply type | Single |
| output type | CMOS |
| maximum single supply voltage (v) | 5.5 |
| minimum single supply voltage (v) | 2.5 |
| typical single supply voltage (v) | 3|5 |
| factory pack quantity: factory pack quantity: | 96 |
| manufacturer: | Microchip |
| maximum operating temperature: | +125 C |
| minimum operating temperature: | -40 C |
| mounting style: | SMD/SMT |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| product: | Operational Amplifiers |
| series: | MCP6024 |
| subcategory: | Amplifier ICs |
| packaging: | Tube |
| number of channels | 4 Channel |
| process technology | CMOS |
| Вес и габариты | |
| operating supply current: | 1 mA |
| package/case: | TSSOP-14 |
| rohs | Details |
| product | Operational Amplifiers |
| supply voltage - max | 5.5 V |
| supply voltage - min | 2.5 V |
| supply voltage - max: | 5.5 V |
| supply voltage - min: | 2.5 V |
| maximum quiescent current (ma) | 5.4 5.5V |
| technology | CMOS |
| number of channels: | 4 Channel |
| operating supply voltage: | 2.5 V to 5.5 V |
| qualification: | AEC-Q100 |
| number of channels per chip | 4 |
| amplifier type | General Purpose Amplifier |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| technology: | CMOS |
| rail to rail | Rail to Rail Input/Output |
| supply type: | Single |
| typical output current (ma) | 30(Max) |
| minimum cmrr range (db) | 70 to 71 |
| minimum cmrr (db) | 70 |
| maximum input offset voltage (mv) | 0.25 5V |
| ib - input bias current | 5 nA |
| manufacturer type | General Purpose Amplifier |
| maximum input bias current (ua) | 0.005 5.5V 125C |
| ib - input bias current: | 5 nA |
| gbp - gain bandwidth product | 10 MHz |
| sr - slew rate | 7 V/us |
| typical gain bandwidth product (mhz) | 10 |
| psrr - power supply rejection ratio | 74 dB |
| psrr - power supply rejection ratio: | 74 dB |
| cmrr - common mode rejection ratio | 70 dB |
| typical input bias current (ua) | 0.000001 5.5V |
| typical slew rate (v/us) | 7 5.5V |
| typical input noise voltage density (nv/rthz) | 8.7 5.5V |
| typical voltage gain (db) | 110 |
| typical noninverting input current noise density (pa/rthz) | 0.003 5.5V |
| minimum psrr (db) | 74 |
| typical settling time (ns) | 250 |
| shut down support | No |
| gbp - gain bandwidth product: | 10 MHz |
| vos - input offset voltage: | 250 uV |
| cmrr - common mode rejection ratio: | 70 dB |
| en - input voltage noise density | 8.7 nV/sqrt Hz |
| output current per channel | 22 mA |
| amplifier type: | General Purpose Amplifier |
| en - input voltage noise density: | 8.7 nV/sqrt Hz |
| output current per channel: | 22 mA |
| sr - slew rate: | 7 V/us |
| voltage gain db: | 110 dB |
| supply current per channel | 1 mA |
| in - input noise current density: | 0.003 pA/sqrt Hz |
| vos - input offset voltage | 250 uV |
