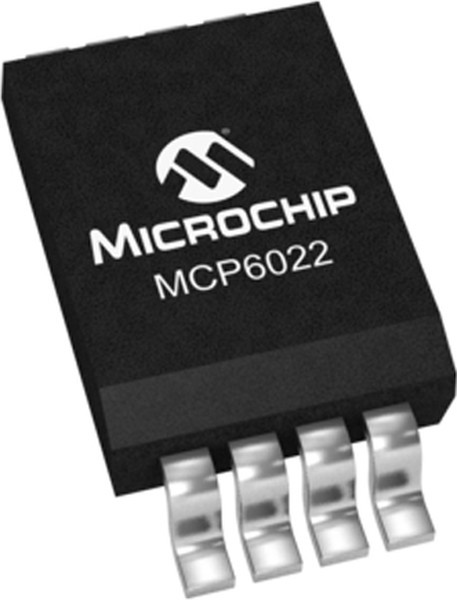

MCP6022-E/SN
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
ЭлектроэлементOP AMP, 10MHZ, 7V/uS, SOIC-8, No. of Amplifiers:2 Amplifier, Bandwidth:10MHz, Slew Rate:7V/ s, Supply Voltage Range:2.5V to 5.5V, Amplifier Case Style:SOIC, No. of Pins:8Pins, Operating Temperature Min:-40 C, Packaging:Each , RoHS Compliant: Yes
| Информация о производителе | |
| Производитель | Microchip Technology |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 22:39:58 |
| Бренд | Microchip Technology |
| Вес и габариты | |
| amplifier type | Precision |
| automotive | Yes |
| common mode rejection ratio | 70(dB) |
| dual supply voltage (max) | Not Required(V) |
| dual supply voltage (min) | Not Required(V) |
| dual supply voltage (typ) | Not Required(V) |
| eccn (us) | ear99 |
| eu rohs | compliant |
| Высота | 1.25 мм |
| input bias current | 0.001(nA) |
| input offset voltage | 0.25(mV) |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer type | General Purpose Amplifier |
| maximum input bias current (ua) | 0.005 5.5V 125C |
| maximum input offset current | 0.000001(TYP)@5.5V |
| maximum input offset voltage (mv) | 0.25 5V |
| maximum operating temperature | +125 °C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 2.7 5.5V |
| maximum single supply voltage (v) | 05.05.2024 |
| minimum cmrr (db) | 70 |
| minimum cmrr range (db) | 70 to 71 |
| minimum operating temperature | -40 °C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 74 |
| minimum single supply voltage (v) | 02.05.2024 |
| mounting | surface mount |
| mounting type | Surface Mount |
| number of channels per chip | 2 |
| number of elements | 2 |
| operating temperature classification | Automotive |
| operating temp range | -40C to 125C |
| output type | CMOS |
| package type | SOIC N |
| packaging | Rail/Tube |
| партномер | 8002984527 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply rejection ratio | 74(dB) |
| power supply requirement | Single |
| power supply type | Single |
| ppap | Yes |
| process technology | CMOS |
| rad hardened | No |
| rail to rail | Rail to Rail Input/Output |
| settling time | 0.25(us) |
| shut down feature | No |
| shut down support | No |
| single supply voltage (max) | 5.5(V) |
| single supply voltage (min) | 2.5(V) |
| single supply voltage (typ) | 3/5(V) |
| slew rate | 7(V/us) |
| standard package name | SOP |
| supplier package | SOIC N |
| supplier temperature grade | Extended |
| technology | CMOS |
| type | General Purpose Amplifier |
| typical gain bandwidth product | 10MHz |
| typical gain bandwidth product (mhz) | 10 |
| typical input bias current (ua) | 0.000001 5.5V |
| typical input noise voltage density (nv/rthz) | 8.7 5.5V |
| typical input voltage noise density | 8.7nV/√Hz |
| typical noninverting input current noise density (pa/rthz) | 0.003 5.5V |
| typical output current (ma) | 30(Max) |
| typical settling time (ns) | 250 |
| typical single supply voltage | 2.5 → 5.5 V |
| typical single supply voltage (v) | 3|5 |
| typical slew rate | 7V/µs |
| typical slew rate (v/us) | 7 5.5V |
| typical voltage gain | 110 dB |
| typical voltage gain (db) | 110 |
| unity gain bandwidth product | 10 |
| вес, г | 0.15 |
| voltage gain in db | 110(dB) |
| width | 3.9mm |
