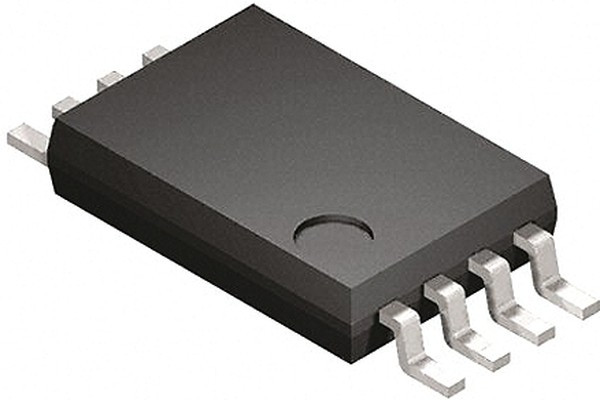

MCP602-I/ST
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
ЭлектроэлементIC, OP AMP, DUAL, 8TSSOP; No. of Amplifiers:2 Amplifier; Bandwidth:2.8MHz; Slew Rate:2.3V/Вµs; Supply Voltage Range:2.7V to 6V; Amplifier Case Style:TSSOP; No. of Pins:8Pins; Operating Temperature Min:-40В°C; Operating Tem
| Информация о производителе | |
| Производитель | Microchip Technology |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 1:54:25 |
| Бренд | Microchip Technology |
| Вес и габариты | |
| amplifier type | General Purpose |
| automotive | Yes |
| common mode rejection ratio | 75(dB) |
| dual supply voltage (max) | Not Required(V) |
| dual supply voltage (min) | Not Required(V) |
| dual supply voltage (typ) | Not Required(V) |
| eccn (us) | ear99 |
| eu rohs | compliant |
| input bias current | 0.001(nA) |
| input offset voltage | 2(mV) |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer type | Low Power Amplifier |
| maximum input bias current (ua) | 0.00006@5.5V@85C |
| maximum input offset current | 0.000001(TYP)@5.5V |
| maximum input offset current (ua) | 0.000001(Typ)@5.5V |
| maximum input offset voltage (mv) | 2@5.5V |
| maximum operating frequency | 10 kHz |
| maximum operating temperature | +85 °C |
| maximum operating temperature (°c) | 85 |
| maximum quiescent current (ma) | 0.65@5.5V |
| maximum single supply voltage (v) | 6 |
| minimum cmrr (db) | 75 |
| minimum cmrr range (db) | 75 to 80 |
| minimum operating temperature | -40 °C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 80 |
| minimum single supply voltage (v) | 02.07.2024 |
| mounting | surface mount |
| mounting type | Surface Mount |
| number of channels per chip | 2 |
| number of circuits | Dual |
| number of elements | 2 |
| operating temperature | -40℃~+85℃ |
| operating temperature classification | Industrial |
| operating temp range | -40C to 85C |
| output current | 22mA |
| output type | CMOS |
| package type | TSSOP |
| packaging | Rail/Tube |
| партномер | 8002985194 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply rejection ratio | 80(dB) |
| power supply requirement | Single |
| power supply type | Single |
| ppap | Yes |
| process technology | CMOS |
| rad hardened | No |
| rail/rail i/o type | Rail to Rail Output |
| rail to rail | Rail to Rail Output |
| settling time | 4.5(us) |
| shut down feature | No |
| shut down support | No |
| single supply voltage (max) | 6(V) |
| single supply voltage (min) | 2.7(V) |
| single supply voltage (typ) | 3/5(V) |
| slew rate | 2.3(V/us) |
| standard package name | SOP |
| supplier package | TSSOP |
| supplier temperature grade | Industrial |
| technology | CMOS |
| type | Low Power Amplifier |
| typical gain bandwidth product | 2.8MHz |
| typical gain bandwidth product (mhz) | 02.08.2024 |
| typical input bias current (ua) | 0.000001@5.5V |
| typical input noise voltage density (nv/rthz) | 29@5.5V |
| typical input voltage noise density | 29nV/√Hz |
| typical noninverting input current noise density (pa/rthz) | 0.0006@5.5V |
| typical output current (ma) | 30(Max) |
| typical settling time (ns) | 4500 |
| typical single supply voltage | 2.7 → 6 V |
| typical slew rate | 2.3V/µs |
| typical slew rate (v/us) | 2.3@5.5V |
| typical voltage gain | 115 dB |
| typical voltage gain (db) | 115 |
| unity gain bandwidth product | 02.08.2024 |
| вес, г | 0.175 |
| voltage gain in db | 115(dB) |
| width | 4.5mm |
| -3db bandwidth | - |
