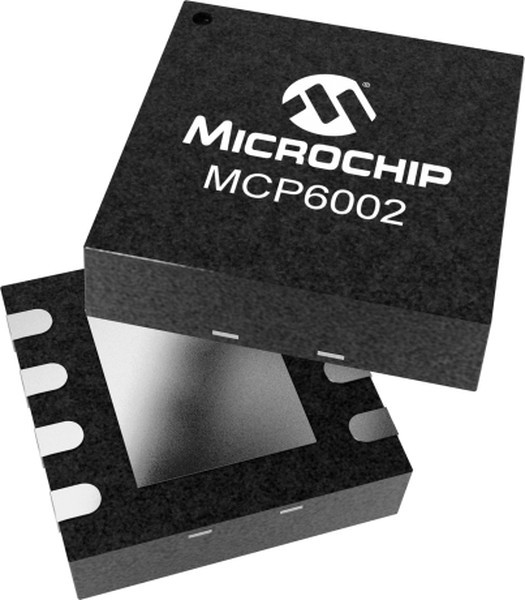

MCP6002T-E/MC, Op Amp Dual Low Power Amplifier R-R I/O 6V Automotive AEC-Q100 8-Pin DFN EP T/R
Оставить отзыв
В избранноеВ сравнение
Артикул: MCP6002T-E/MC
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Amplifiers\Amplifiers and Comparators\Operational Amplifiers (Op Amps)Op Amp Dual Low Power Amplifier R-R I/O 6V Automotive AEC-Q100 8-Pin DFN EP T/R
| Информация о производителе | |
| Производитель | Microchip Technology |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 3:05:14 |
| Бренд | Microchip Technology |
| Вес и габариты | |
| amplifier type | General Purpose |
| amplifier type: | Low Power Amplifier |
| automotive | Yes |
| cmrr - common mode rejection ratio: | 60 dB |
| eccn (us) | ear99 |
| en - input voltage noise density: | 28 nV/sqrt Hz |
| factory pack quantity: factory pack quantity: | 3300 |
| gbp - gain bandwidth product: | 1 MHz |
| ib - input bias current: | 1.1 nA |
| input offset voltage drift (uv/°c) | 2(Typ) |
| input type: | Rail-to-Rail |
| in - input noise current density: | 0.0006 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| manufacturer: | Microchip |
| manufacturer type | Low Power Amplifier |
| maximum input offset current (ua) | 0.000001(Typ)@5.5V |
| maximum input offset voltage (mv) | 4.5@5.5V |
| maximum operating frequency | 0.001 MHz |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 0.34@5.5V |
| maximum single supply voltage (v) | 6 |
| minimum cmrr (db) | 60 |
| minimum cmrr range (db) | 60 to 65 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 86(Typ) |
| minimum single supply voltage (v) | 01.08.2024 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| operating supply current: | 100 uA |
| operating supply voltage: | 1.8 V to 6 V |
| output current per channel: | 23 mA |
| output type | CMOS |
| output type: | Rail-to-Rail |
| package / case: | DFN-8 |
| package type | DFN |
| packaging | Tape and Reel |
| партномер | 8001043724 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Single |
| ppap | Yes |
| process technology | CMOS |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 86 dB |
| qualification: | AEC-Q100 |
| rail to rail | Rail to Rail Input/Output |
| series: | MCP6002 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 600 mV/us |
| standard package name | DFN |
| subcategory: | Amplifier ICs |
| supplier package | DFN EP |
| supplier temperature grade | Extended |
| supply type: | Single |
| supply voltage - max: | 5.5 V |
| supply voltage - min: | 1.8 V |
| technology: | CMOS |
| type | Low Power Amplifier |
| type: | 1 MHz, Low Power Op Amp |
| typical gain bandwidth product | 1MHz |
| typical gain bandwidth product (mhz) | 1 |
| typical input bias current (ua) | 0.000001@5.5V |
| typical input noise voltage density (nv/rthz) | 28@5.5V |
| typical noninverting input current noise density (pa/rthz) | 0.0006@5.5V |
| typical output current (ma) | 30(Max) |
| typical single supply voltage | 1.8 → 6 V |
| typical slew rate (v/us) | 0.6@5.5V |
| typical voltage gain (db) | 112 |
| вес, г | 0.5 |
| voltage gain db: | 112 dB |
| vos - input offset voltage: | 4.5 mV |
