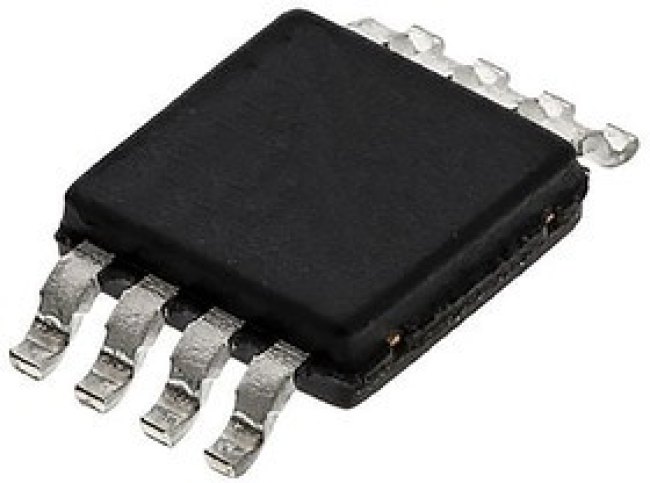

MCP6002-E/MS, MCP6002-E/MS , Op Amp, RRIO, 1MHz, 1.8 6 V, 8-Pin MSOP

Semiconductors\Amplifiers & Comparators\Op AmpsIC, OP AMP, DUAL, 1.8V, 1MHZ, 8MSOP; No. of Amplifiers:2 Amplifier; Bandwidth:1MHz; Slew Rate:0.6V/µs; Supply Voltage Range:1.8V to 6V; Amplifier Case Style:MSOP; No. of Pins:8Pins; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; Product Range:-; Automotive Qualification Standard:AEC-Q100; RoHS Phthalates Compliant:Yes; MSL:MSL 1 - Unlimited; SVHC:No SVHC (27-Jun-2018); Amplifer Supply Voltage:1.8V to 6V; Base Number:6002; No. of...

Подробное описание

Основные
mounting type	Surface Mount
type	Low Power Amplifier
package type	MSOP
minimum operating temperature	-40 C

Все характеристики

82 ₽

– +

Бонус: 1.64 !

Бонусная программа

Итого: 82 ₽

Купить

Обзор
Характеристики
Отзывы (0)
Реквизиты

Основные
mounting type	Surface Mount
type	Low Power Amplifier
package type	MSOP
minimum operating temperature	-40 C
width	3mm
pin count	8
maximum operating temperature	+125 C
packaging	Tube
eu rohs	compliant
lead shape	Gull-wing
maximum operating temperature (°c)	125
mounting	surface mount
part status	active
pcb changed	8
supplier package	MSOP
eccn (us)	ear99
minimum operating temperature (°c)	-40
supplier temperature grade	Extended
power supply type	Single
output type	CMOS
maximum single supply voltage (v)	6
minimum single supply voltage (v)	1.8
typical single supply voltage (v)	5\|3
hts	8542.33.00.01
package height	0.85
package length	3
package width	3
process technology	CMOS
Вес и габариты
typical single supply voltage	1.8 → 6 V
maximum quiescent current (ma)	0.34@5.5V
technology	CMOS
number of channels per chip	2
amplifier type	General Purpose
rail to rail	Rail to Rail Input/Output
slew rate	0.6(V/us)
typical output current (ma)	30(Max)
minimum cmrr range (db)	60 to 65
minimum cmrr (db)	60
maximum input offset voltage (mv)	4.5@5.5V
manufacturer type	Low Power Amplifier
typical gain bandwidth product (mhz)	1
maximum input offset current (ua)	0.000001(Typ)@5.5V
typical input bias current (ua)	0.000001@5.5V
typical slew rate (v/us)	0.6@5.5V
typical input noise voltage density (nv/rthz)	28@5.5V
input offset voltage drift (uv/°c)	2(Typ)
typical voltage gain (db)	112
typical noninverting input current noise density (pa/rthz)	0.0006@5.5V
minimum psrr (db)	86(Typ)
shut down support	No
operating temp range	-40C to 125C
operating temperature classification	Automotive
rad hardened	No
dual supply voltage (max)	Not Required(V)
dual supply voltage (min)	Not Required(V)
dual supply voltage (typ)	Not Required(V)
power supply requirement	Single
single supply voltage (max)	6(V)
single supply voltage (min)	1.8(V)
single supply voltage (typ)	3/5(V)
number of elements	2
common mode rejection ratio	60(dB)
input offset voltage	4.5(mV)
maximum input offset current	0.000001(TYP)5.5V
power supply rejection ratio	86(dB)
shut down feature	No
unity gain bandwidth product	1
voltage gain in db	112(dB)
typical slew rate	0.6V/us
typical input voltage noise density	28nV/√Hz
typical gain bandwidth product	1MHz
input bias current	0.001(nA)
typical voltage gain	112 dB
