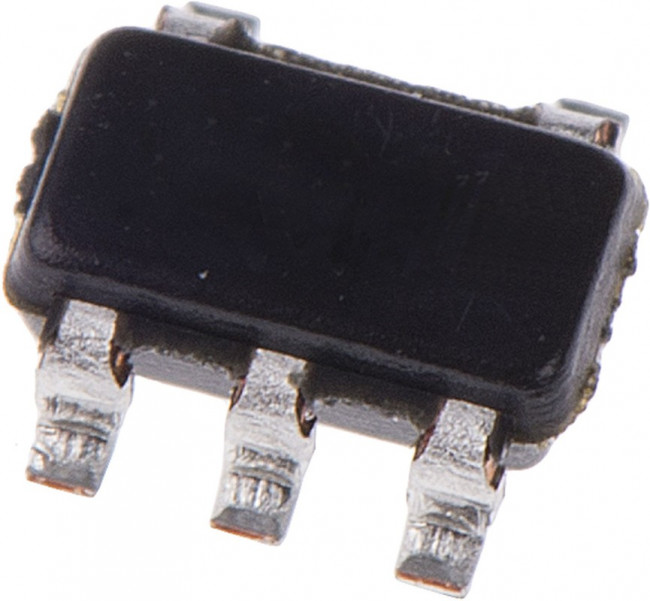

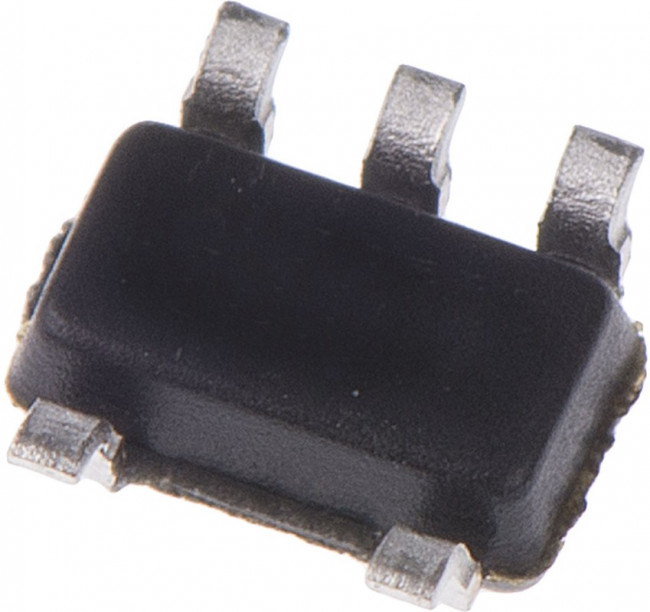

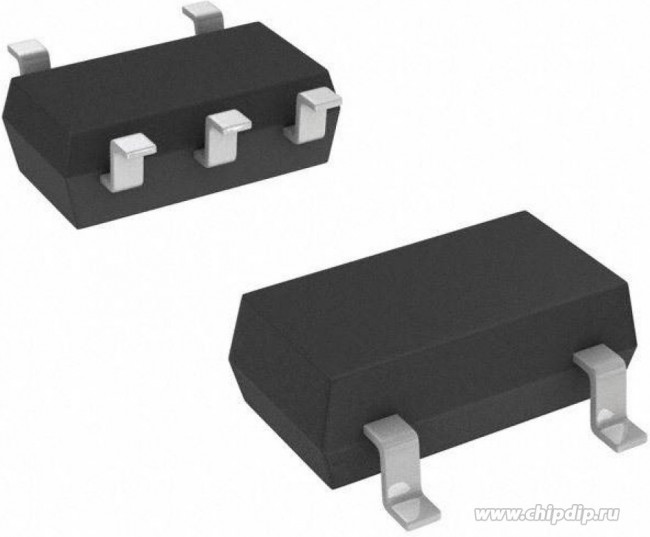

MCP6001UT-E/OT, Operational Amplifiers - Op Amps Single 1.8V 1MHz
Оставить отзыв
В избранноеВ сравнение
Артикул: MCP6001UT-E/OT
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifier ICs\Operational Amplifiers - Op AmpsОперационный усилитель, 1 МГц
| Информация о производителе | |
| Производитель | Microchip Technology |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 3:05:23 |
| Бренд | Microchip Technology |
| Вес и габариты | |
| amplifier type | General Purpose |
| amplifier type: | Low Power Amplifier |
| cmrr - common mode rejection ratio: | 60 dB |
| common mode rejection ratio | 60(dB) |
| dual supply voltage (max) | Not Required(V) |
| dual supply voltage (min) | Not Required(V) |
| dual supply voltage (typ) | Not Required(V) |
| en - input voltage noise density: | 28 nV/sqrt Hz |
| factory pack quantity: factory pack quantity: | 3000 |
| gbp - gain bandwidth product: | 1 MHz |
| ib - input bias current: | 1 pA |
| input bias current | 0.001(nA) |
| input offset voltage | 4.5(mV) |
| in - input noise current density: | 0.0006 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| manufacturer: | Microchip |
| maximum input offset current | 0.000001(TYP)@5.5V |
| maximum operating temperature | +125 °C |
| maximum operating temperature: | +125 C |
| minimum operating temperature | -40 °C |
| minimum operating temperature: | -40 C |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| number of elements | 1 |
| operating supply current: | 100 uA |
| operating supply voltage: | 1.8 V to 5.5 V |
| operating temperature classification | Automotive |
| operating temp range | -40C to 125C |
| output current per channel: | 23 mA |
| package / case: | SOT-23-5 |
| package type | SOT-23 |
| packaging | Tape and Reel |
| партномер | 8004943935 |
| pin count | 5 |
| power supply rejection ratio | 86(dB) |
| power supply requirement | Single |
| power supply type | Single |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 86 dB |
| qualification: | AEC-Q100 |
| rad hardened | No |
| rail to rail | Rail to Rail Input/Output |
| series: | MCP6001 |
| shutdown: | No Shutdown |
| shut down feature | No |
| single supply voltage (max) | 6(V) |
| single supply voltage (min) | 1.8(V) |
| single supply voltage (typ) | 3/5(V) |
| slew rate | 0.6(V/us) |
| sr - slew rate: | 600 mV/us |
| subcategory: | Amplifier ICs |
| supply type: | Single |
| supply voltage - max: | 5.5 V |
| supply voltage - min: | 1.8 V |
| technology | CMOS |
| technology: | CMOS |
| type | Low Power Amplifier |
| typical gain bandwidth product | 1MHz |
| typical input voltage noise density | 28nV/√Hz |
| typical single supply voltage | 1.8 → 6 V |
| typical slew rate | 0.6V/µs |
| typical voltage gain | 112 dB |
| unity gain bandwidth product | 1 |
| вес, г | 0.01 |
| voltage gain db: | 112 dB |
| voltage gain in db | 112(dB) |
| vos - input offset voltage: | 4.5 mV |
| width | 1.8mm |
