| Информация о производителе | |
| Производитель | STMicroelectronics |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 0:37:15 |
| Бренд | STMicroelectronics |
| Вес и габариты | |
| 3 db bandwidth: | 14 kHz |
| amplifier type | Dual Operational |
| amplifier type: | Dual Operational Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 70 dB |
| диапазон напряжения питания | 5В до 40В, ±2.5В до±20В |
| eccn (us) | ear99 |
| en - input voltage noise density: | 45 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 2500 |
| gbp - gain bandwidth product: | 1 MHz |
| ib - input bias current: | 800 nA |
| input offset current | 300nA |
| input type: | Differential |
| input voltage range | ±22(Maximum)V |
| ios - input offset current: | 300 nA |
| категория | Электронные компоненты/Микросхемы |
| количество усилителей | 2 Усилителя |
| количество выводов | 8вывод(-ов) |
| lead shape | Gull-wing |
| максимальная рабочая температура | 105°C |
| manufacturer: | STMicroelectronics |
| manufacturer type | General Purpose Amplifier |
| maximum dual supply voltage: | +/-22 V |
| maximum dual supply voltage (v) | ±22 |
| maximum input bias current (ua) | 0.5@±15V |
| maximum input offset current (ua) | 0.2@±15V |
| maximum input offset voltage (mv) | 5@±15V |
| maximum input voltage | ±22 V |
| maximum operating frequency | 100 kHz |
| maximum operating temperature | +105 °C |
| maximum operating temperature: | +105 C |
| maximum operating temperature (°c) | 105 |
| maximum power dissipation (mw) | 300 |
| maximum quiescent current (ma) | 5@±15V |
| минимальная рабочая температура | -40°C |
| minimum cmrr (db) | 70 |
| minimum cmrr range (db) | 70 to 71 |
| minimum operating temperature | -40 °C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| number of circuits | Dual |
| offset voltage | 6mV |
| operating supply current: | 2.3 mA |
| operating temperature | -40℃~+105℃ |
| output current | 35 mA |
| output current per channel: | 20 mA |
| output type | Swing |

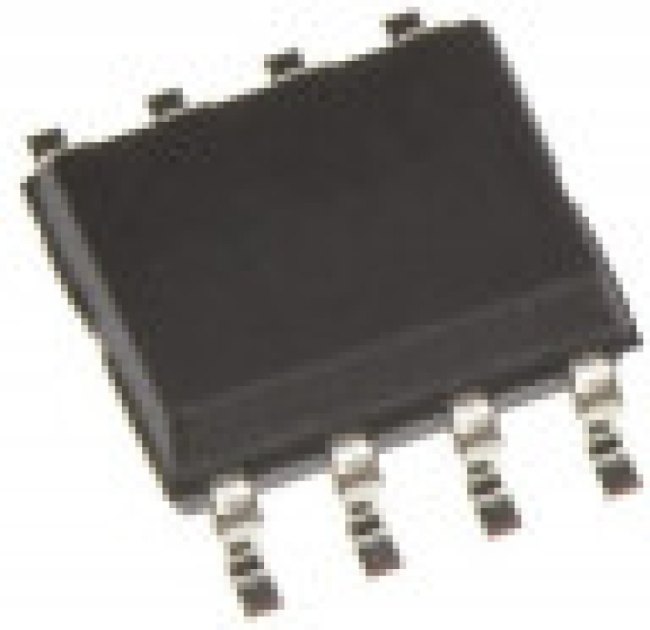

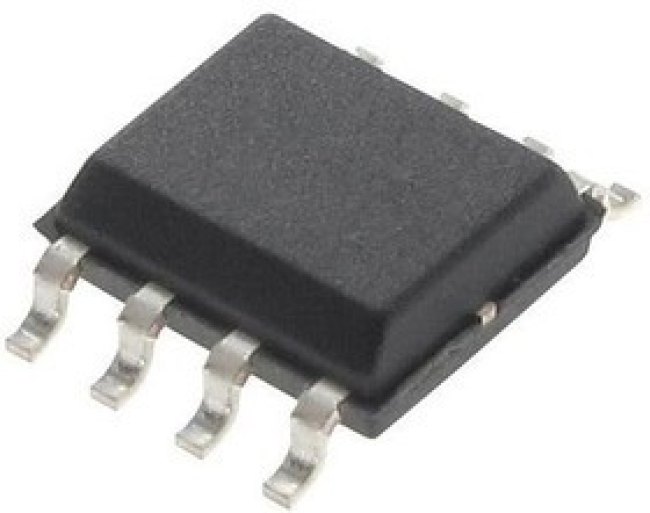

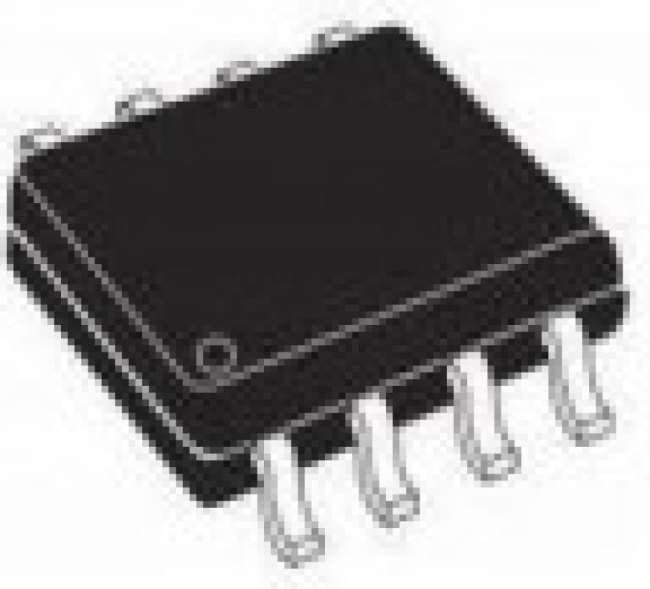

| package / case: | SOIC-8 |
| package type | SO |
| packaging | Tape and Reel |
| партномер | 8004826843 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| полоса пропускания | 1МГц |
| power supply type | Dual |
| ppap | No |
| process technology | Bipolar |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 77 dB |
| series: | MC1458 |
| shutdown: | No Shutdown |
| shut down support | No |
| скорость нарастания | 0.8В/мкс |
| sr - slew rate: | 800 mV/us |
| standard package name | SO |
| стиль корпуса усилителя | SOIC |
| subcategory: | Amplifier ICs |
| supplier package | SO N |
| supply voltage - max: | 22 V |
| supply voltage - min: | -22 V |
| technology: | Bipolar |
| thd plus noise: | 0.02% |
| type | General Purpose Amplifier |
| typical dual supply voltage | ±22V |
| typical gain bandwidth product | 1MHz |
| typical gain bandwidth product (mhz) | 1 |
| typical input noise voltage density (nv/rthz) | 45@±15V |
| typical input voltage noise density | 45nV/√Hz |
| typical slew rate | 0.8V/µs |
| typical slew rate (v/us) | 0.8@±15V |
| typical voltage gain | 200 V/mV |
| typical voltage gain (db) | 106.02 |
| уровень чувствительности к влажности (msl) | MSL 3-168 часов |
| вес, г | 0.35 |
| vos - input offset voltage: | 1 mV |
| width | 4mm |
| -3db bandwidth | - |
