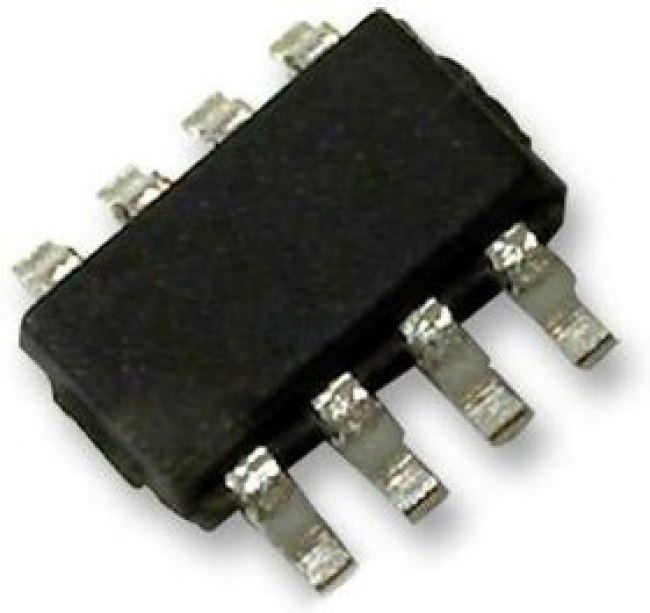

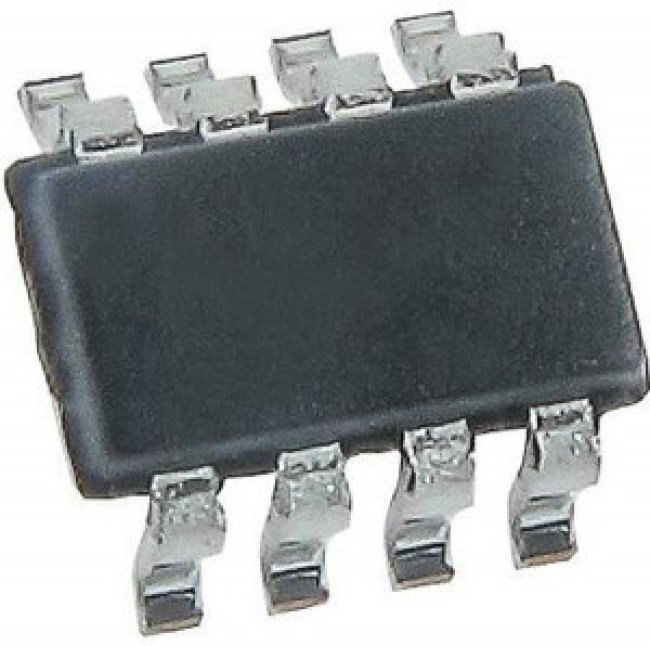

MAX4402AKA+T, Операционный усилитель, 2 Усилителя, 800 кГц, 1 В/мкс, 2.5В до 5.5В, SOT-23, 8 вывод(-ов)

Полупроводники - Микросхемы\Усилители и Компараторы\Операционные Усилители - ОУThe MAX4402AKA+T from Maxim Integrated Products is a dual, low-cost, single-supply, rail to rail op amp with shutdown in 8 pin SOT-23 package. It is a low-cost, general-purpose op amp offers rail to rail outputs, draw only 320µA of quiescent current and operate from a single +2.5V to +5.5V supply. This device delivers ±1.4mA of output current and are unity-gain stable with a 1MHz gain-bandwidth product driving capacitive loads up to 400pF. It is specified to +125°C, making it suitable for use in a variety of harsh environments, such as automotive applications. Typical applications include single-supply, zero-crossing detectors, instruments and terminals, portable communications, electronic ignition modules, infrared receivers and sensor signal detection. • Single supply voltage range from +2.5V to +5.5V• 110dB AVOL with 2Kohm load• 0.015% THD with 2Kohm load• Rail to rail output voltage swing• 1.4mA of sink and source load current• Unity-gain stable up to CLOAD = 400pF• Ground sensing inputs• Operating temperature range from -40°C to 125°C
