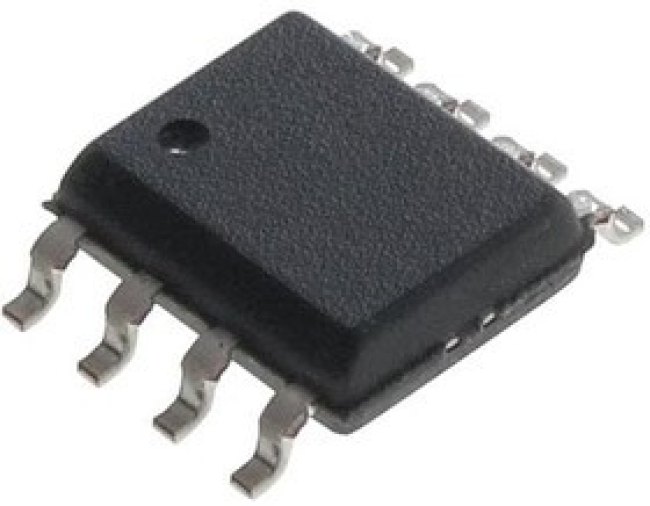

MAX4123ESA+, Operational Amplifiers - Op Amps Single/Dual/Quad, Wide-Bandwidth, Low-Power, Single-Supply Rail-to-Rail I/O Op Amps
Оставить отзыв
В избранноеВ сравнение
Артикул: MAX4123ESA+
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifier ICs\Operational Amplifiers - Op AmpsОперационные усилители Single Wide-Bandwdth Single-Supply R-R
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 23:22:47 |
| Бренд | Analog Devices |
| Вес и габариты | |
| amplifier type | Wideband Amplifier |
| amplifier type: | Low Power Amplifier |
| cmrr - common mode rejection ratio | 78 dB |
| cmrr - common mode rejection ratio: | 78 dB |
| dual supply voltage | +/-3 V |
| dual supply voltage: | +/-3 V |
| en - input voltage noise density | 22 nV/sqrt Hz |
| en - input voltage noise density: | 22 nV/sqrt Hz |
| factory pack quantity | 100 |
| factory pack quantity: factory pack quantity: | 100 |
| gbp - gain bandwidth product | 5 MHz |
| gbp - gain bandwidth product: | 5 MHz |
| height | 1.5 mm(Max) |
| ib - input bias current | 150 nA |
| ib - input bias current: | 150 nA |
| in - input noise current density | 0.4 pA/sqrt Hz |
| in - input noise current density: | 0.4 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| length | 5 mm(Max) |
| manufacturer | Maxim Integrated |
| manufacturer: | Maxim Integrated |
| maximum dual supply voltage | +/-3.25 V |
| maximum dual supply voltage: | +/-3.25 V |
| maximum operating temperature | +85 C |
| maximum operating temperature: | +85 C |
| minimum dual supply voltage | +/-1.35 V |
| minimum dual supply voltage: | +/-1.35 V |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| number of channels | 1 Channel |
| number of channels: | 1 Channel |
| operating supply current | 650 uA |
| operating supply current: | 650 uA |
| operating supply voltage | 2.7 V to 6.5 V, +/-1.35 V to+/-3.25 V |
| operating supply voltage: | 2.7 V to 6.5 V, +/-1.35 V to+/-3.25 V |
| output current per channel | 50 mA |
| output current per channel: | 50 mA |
| package / case | SOIC-Narrow-8 |
| package/case: | SOIC-8 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8004717762 |
| part # aliases | MAX4123 |
| part # aliases: | MAX4123 |
| pd - power dissipation | 471 mW |
| pd - power dissipation: | 471 mW |
| product | Operational Amplifiers |
| product: | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio | 78 dB |
| psrr - power supply rejection ratio: | 78 dB |
| rohs | Details |
| series | MAX4123 |
| series: | MAX4123 |
| shutdown | Shutdown |
| shutdown: | Shutdown |
| sr - slew rate | 2 V/us |
| sr - slew rate: | 2 V/us |
| subcategory: | Amplifier ICs |
| supply type | Single, Dual |
| supply type: | Single, Dual |
| supply voltage - max | 6.5 V |
| supply voltage - max: | 6.5 V, +/-3.25 V |
| supply voltage - min | 2.7 V |
| supply voltage - min: | 2.7 V, +/-1.35 V |
| unit weight | 0.006596 oz |
| вес, г | 0.19 |
| voltage gain db | 106 dB |
| voltage gain db: | 106 dB |
| vos - input offset voltage | 600 uV |
| vos - input offset voltage: | 600 uV |
| width | 4 mm(Max) |
